Silver Bathroom Extractor Fan 100mm / 4" Modern Ventilator Shower Kitchen Escudo Front Panel

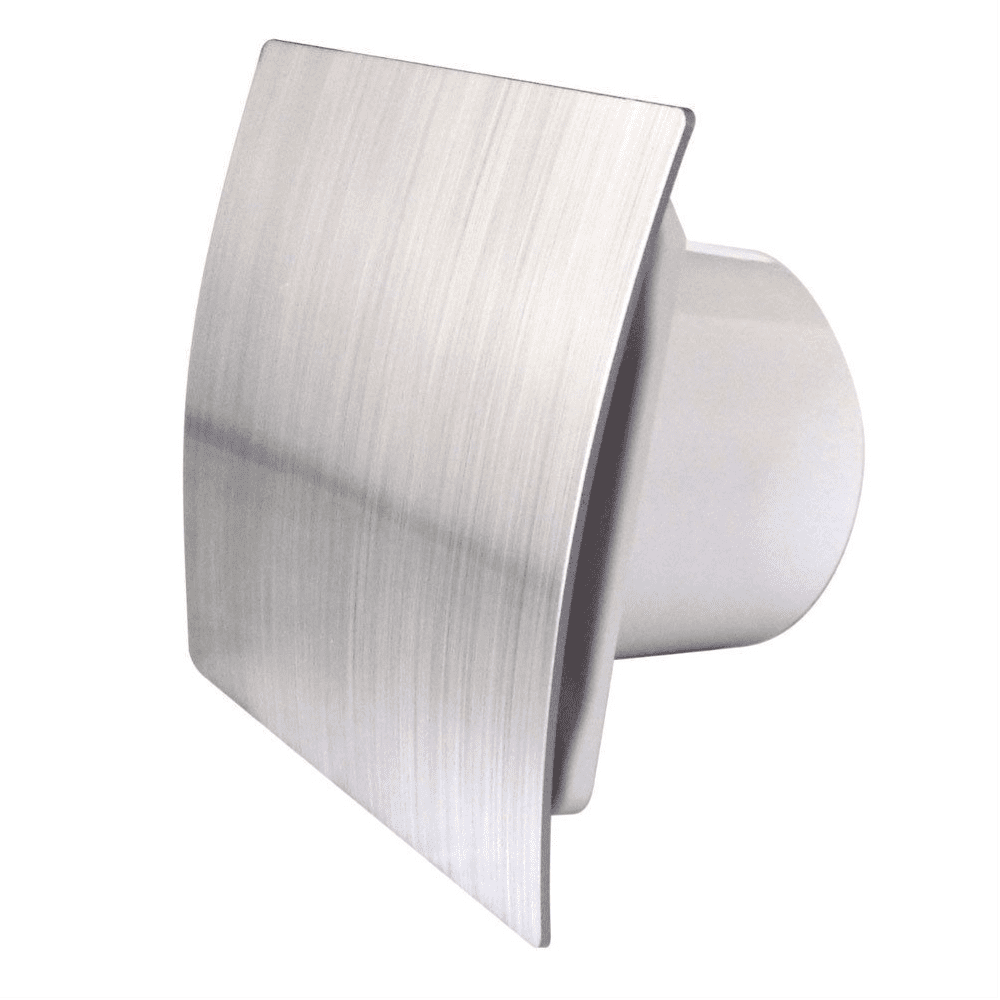

100mm Bathroom Extractor Fan with Silver Front Panel

See a revolutionary solution thanks to which an ordinary ventilation fan can become a decorative element in a home, office or in a commercial space.

System+ permits non-invasive assembly, dismantling, and the exchange of front covers for Awenta fans which are compliant with this system.

The panels are fitted onto the fan using special latches, so you do not need to unscrew or dismantle anything.

This Escudo model is available in shiny silver, which goes well with modern interiors.

Option of type of fan can be selected from drop-down menu : Standard, with Timer, with Humidity Sensor or Pull Cord

Features:

• ABS plastic
• ball bearings
• IPX4
• maximum operating temperature 40°C
• ceiling installation allowed
• non-return valve (ZZ) usage ability

• The fan with humidity sensor, when connected to the power supply, switches on when a certain level of humidity is detected.
• The unit is switched off with a programmed delay (3-30 minutes).
• The adjustment is supported with a diode (green) placed next to the potentiometer used to set the humidity sensor sensitivity.
• The fan can also operate with the light switch (the unit is switched on together with the light). The unit is switched off with a programmed delay (3-30 minutes) after light is switched off.

Specifications:

Voltage: 240V/50Hz
Consumption: 10W
Max Flow Rate: 102m3/h
Protection class: IP-X4
Max Noise Level: 35Db
