Bathroom Extractor Fan 100mm / 4" White Front Panel Modern Ventilation Shower

Silent 100m Bathroom Extractor Fan with White ABS Plastic Front Cover

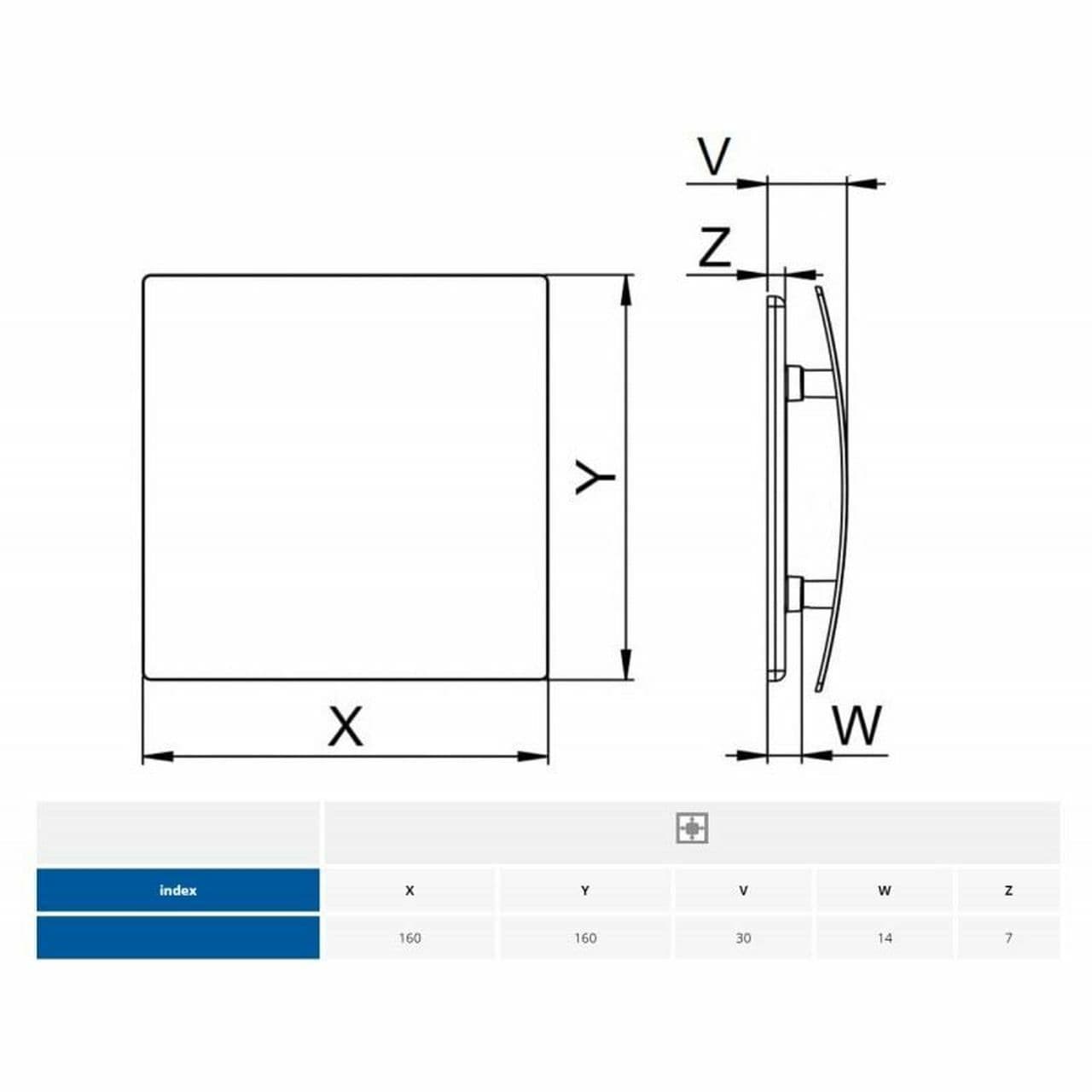

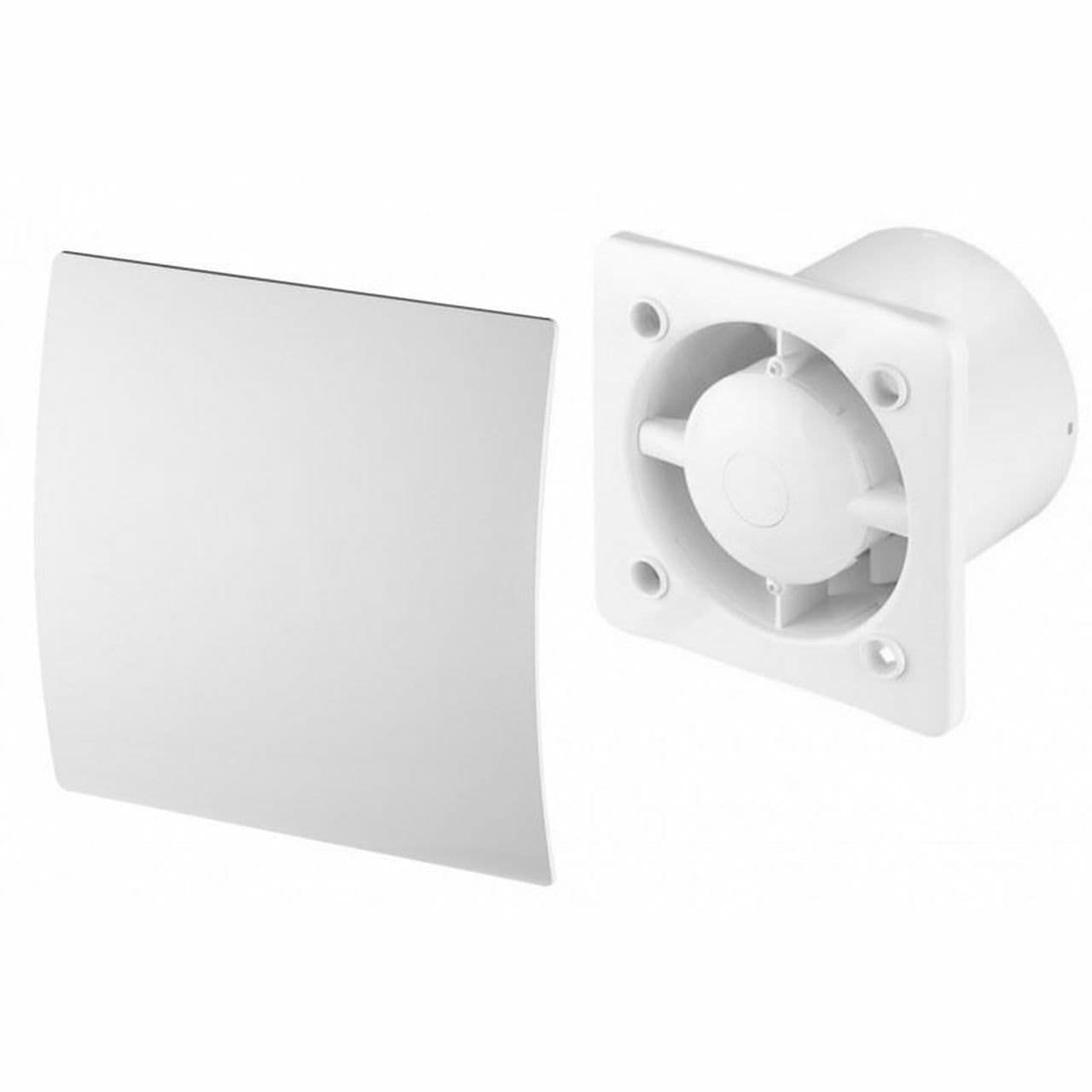

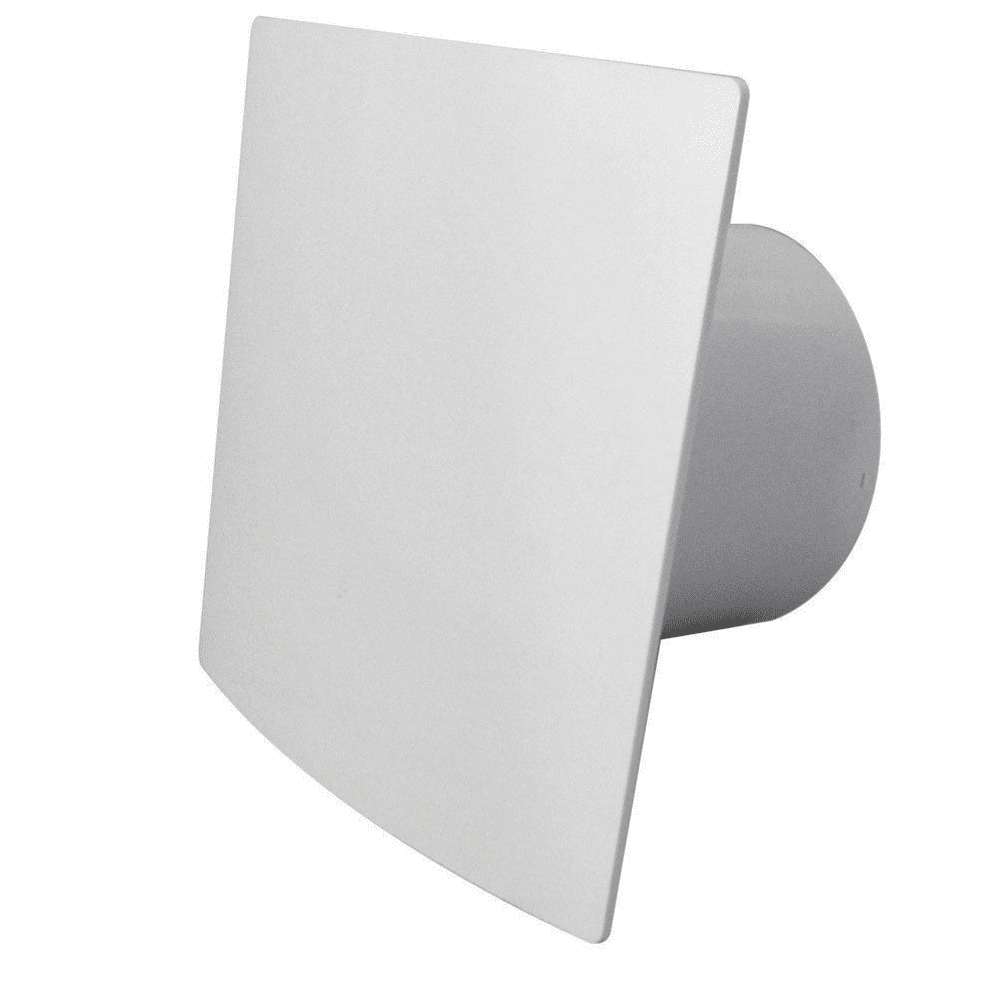

An elegant, minimalistic, and discreet decorative panel which you mount on the Awenta fan bodies which are available in the System+ range.

This solution gives you an opportunity to match the cover plate with the fan body and easily attach it by means of special latches. Nothing is unscrewed or dismantled. You just simply remove the panel and put it back. Discover the possibilities offered by this solution.

The decorative Escudo model presented here comes in a uniform white finish.

The fan comes with the standard option, timer, humidity sensor or pull cord depending on what is chosen from the drop-down menu.

Features:

• ABS plastic
• ball bearings
• IPX4
• maximum operating temperature 40°C
• ceiling installation allowed
• 5 years warranty
• non-return valve (ZZ) usage ability
• The fan with humidity sensor, when connected to the power supply, switches on when a certain level of humidity is detected.
• The unit is switched off with a programmed delay (3-30 minutes).
• The adjustment is supported with a diode (green) placed next to the potentiometer used to set the humidity sensor sensitivity.
• The fan can also operate with the light switch (the unit is switched on together with the light). The unit is switched off with a programmed delay (3-30 minutes) after light is switched of.

Specifications:

• Voltage: 240V/50Hz
• Consumption: 13W
• Max Flow Rate: 95m3/h
• Protection class: IPX4
• Max Noise Level: 37Db
