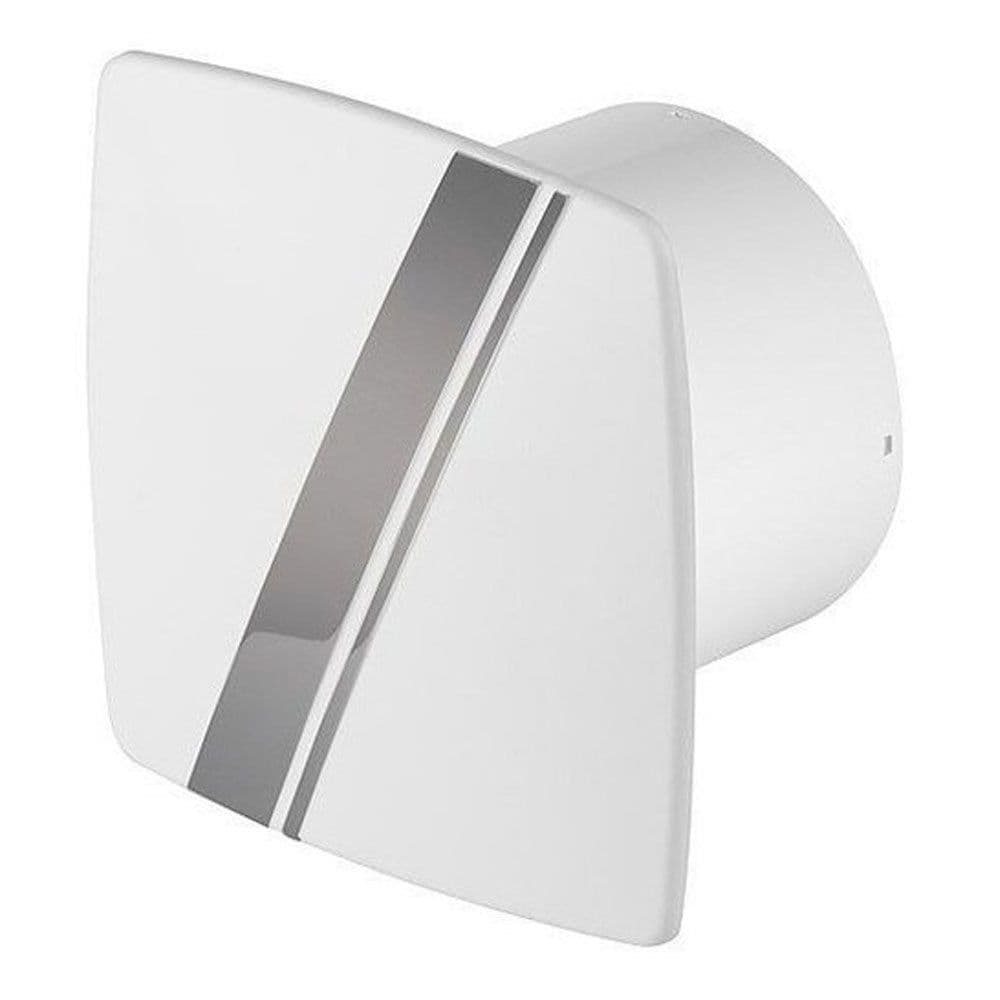

Bathroom Kitchen Modern Extractor Fan 100mm/4" White LINEA Front Panel

100mm Bathroom Extractor Fan with White LINEA Front Panel with Painted Silver Stripes

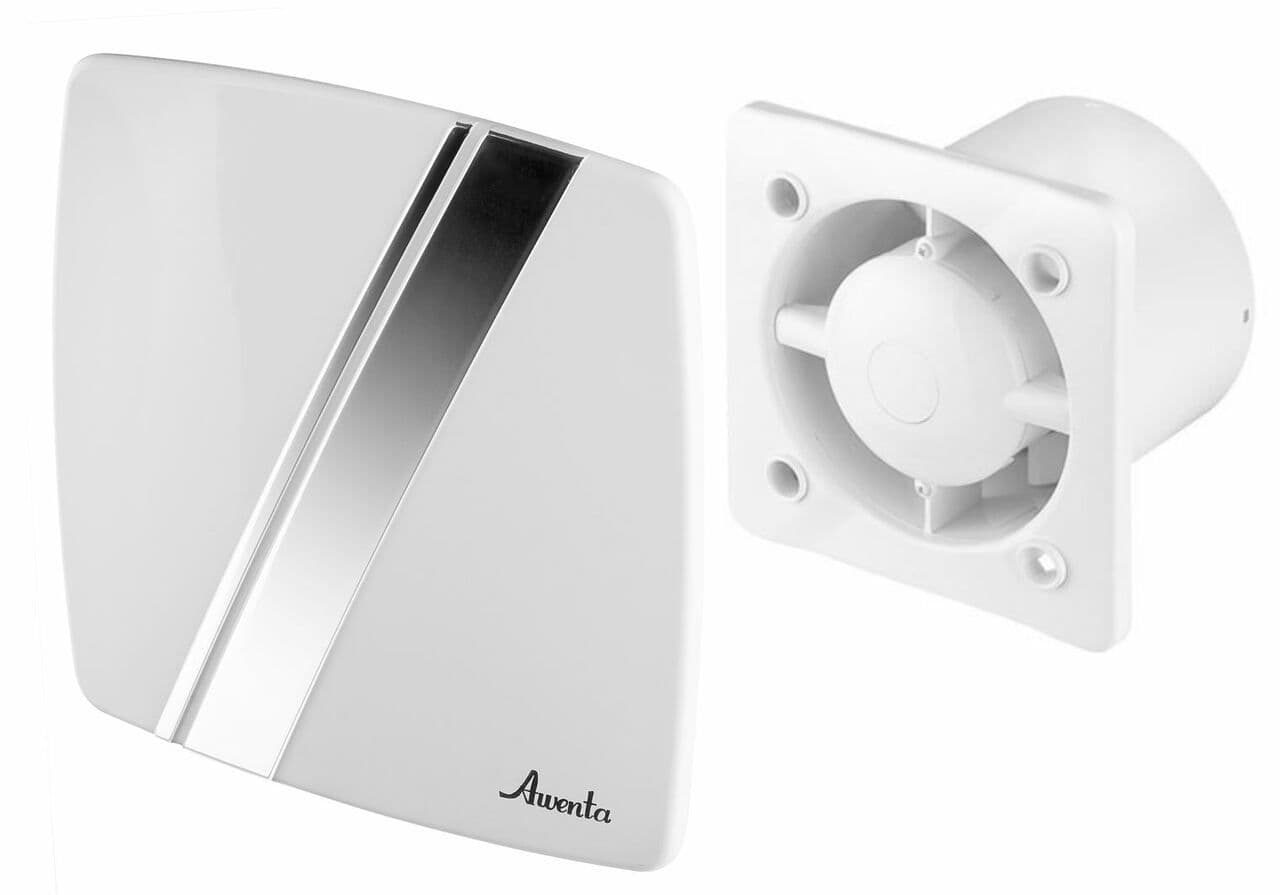

Ventilation systems need not be boring and commonplace. Indeed, they should not be so. Using System+ products, you can easily match a decorative panel to a ventilation fan to hide the fan unit underneath.

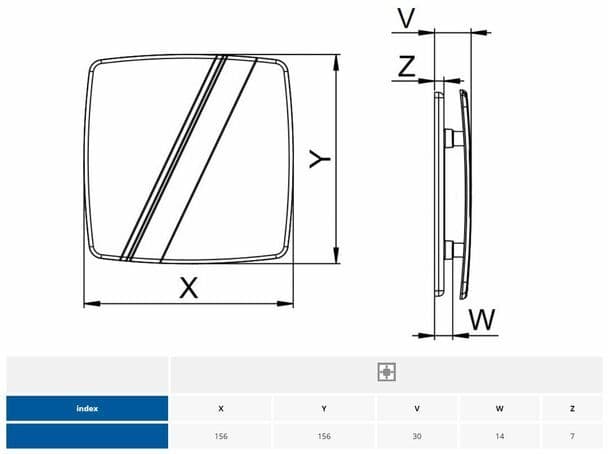

Linea panels in the white colour with a metallic band is a decoration to have. System+ front panels are attached by means of dedicated latches, so you can easily exchange it or detach them for cleaning. This solution creates entirely new design possibilities.​​​​​​​


Fan comes with the standard option, timer, humidity sensor or pull cord depending on what is chosen from the drop down menu.

Features:

• ABS plastic
• ball bearings
• IPX4
• maximum operating temperature 40°C
• ceiling installation allowed
• non-return valve (ZZ) usage ability

• The fan with humidity sensor, when connected to the power supply, switches on when a certain level of humidity is detected.
• The unit is switched off with a programmed delay (3-30 minutes).
• The adjustment is supported with a diode (green) placed next to the potentiometer used to set the humidity sensor sensitivity.
• The fan can also operate with the light switch (the unit is switched on togather with the light). The unit is switched off with a programmed delay (3-30 minutes) after light is switched off.

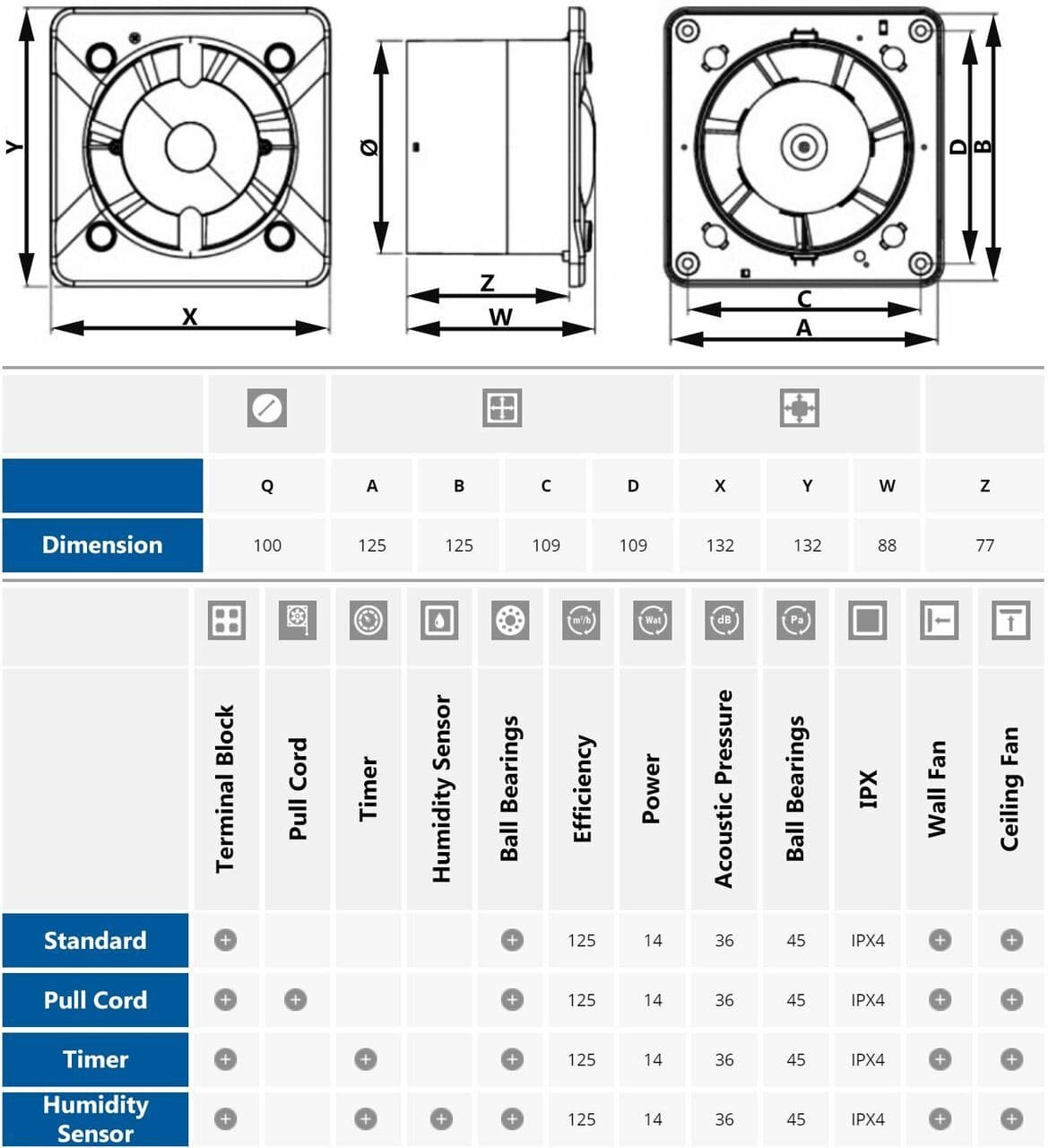

Specifications:

Voltage: 240V/50Hz
Consumption: 10W
Max Flow Rate: 102m3/h
Protection class: IP-X4
Max Noise Level: 35Db
