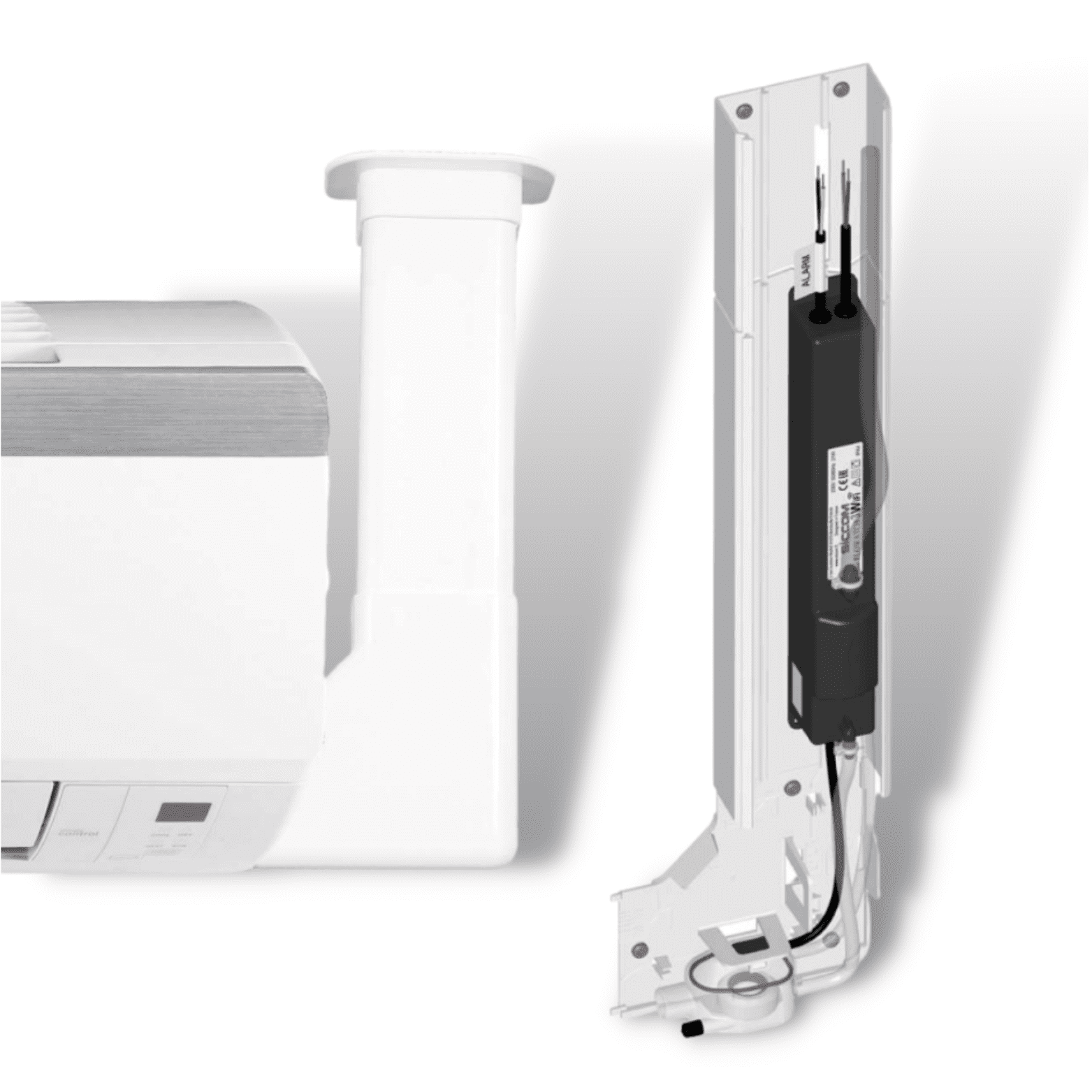

Flowatch Design Complete kit, in-duct pump, for the condensate removal of air conditioners

Siccom Flowatch Design Complete kit, in-duct pump, for the condensate removal of air conditioners up to 10kW/36000BTU

BENEFITS:

• Mini FLOWATCH® 2 included: It assures a high reliability and an easy maintenance.
• Very silent: Very silent pump (20.2 dBA), suitable for an installation in any room.
• IP64 protection: Protected against water splashes and dust.
• Stop siphoning included: Allows to avoid all risk of negative discharge and to secure the pump functioning over time.
• Nice design: Thanks to its shape and its finishing accessories (included),FLOWATCH® DESIGN offers great aesthetics qualities.

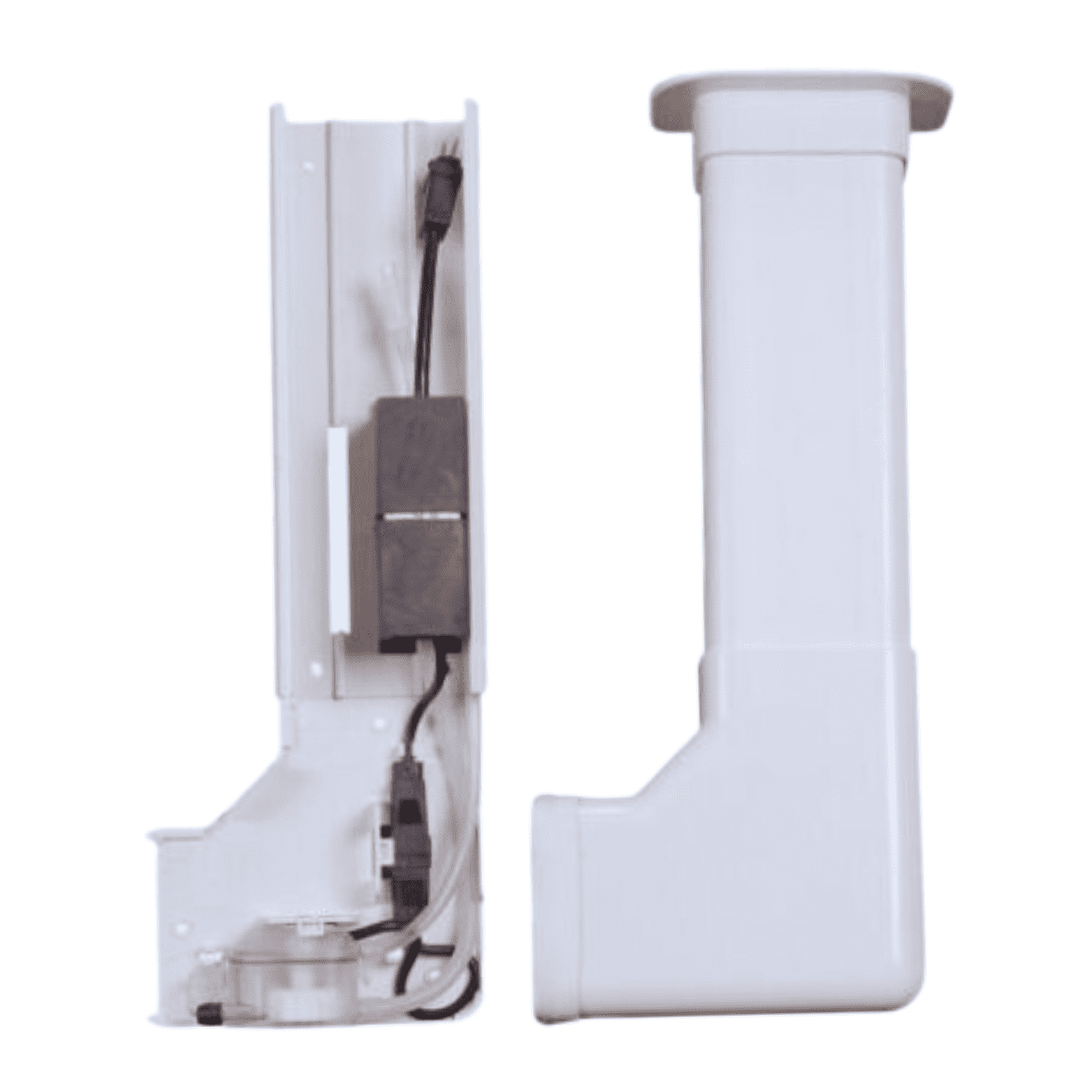

• Kit pre-assembled: Pump is already installed in its duct. Installation is easy and quick.

CONTENT:

Duct with elbow- Finishing gasket Finishing ceiling plate Pump in absorber bracket Reservoir with air-vent tube Power / alarm cable Reservoir stand Inlet tube -Suction tube 0.25m Screws and rawlplugs

SPECIFICATIONS:

• Flow rate Max:15 l/h
• Discharge head: 2 m
• Electrical power: 10 m
• Voltage: 19 W
• Noise level: 220-240 V - 50/60Hz
• Alarm: NO-NF
• Protection rating: IP64
• Thermal protection: OUI
• Operating cycle: 100%
• Power / alarm cable: 1.6 m
• Trunking dimensions: 80 x 55 x 800 mm
