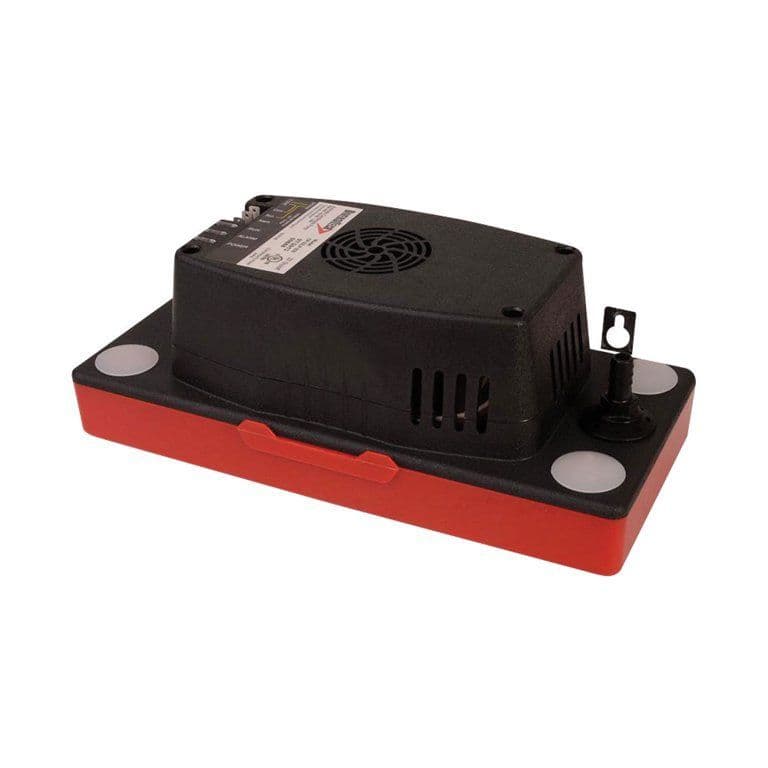

RedBox 1 Litre Low profile Condensate Pump 230V, 280 LPH, 5.1m Lift with Safety Switch
120mm height Can Be Fitted Under Dairy Cabinet
Description:
The RedBox 1L Condensate Pump is an efficient and reliable solution for handling condensate in tight spaces, such as under dairy cabinets. Featuring a compact design, high-performance pump with a 280 LPH flow rate, and a 5.1-metre lift, this unit is ideal for various applications. The pump includes convenient LED indicators, metal mounting tabs for secure installation, and a universal power lead for easy retrofitting. With a high-level alarm system and quiet operation at 44 dB(A), the RedBox 1L combines functionality with peace of mind.
Technical Data:
- Part Name: REDBOX-1L-S
- Description: 1 Litre Condensate Tank Pump
- Voltage: 230V
- Weight: 2.3 kg
- Max Head (Lift): 5.1 m
- Max Flow Rate: 280 LPH
- Noise Level: 44 dB(A)
- Discharge Size: 3/8" & 1/4"
- Power Consumption: 60W
- IP Rating: 20
- Current: 1.0 A
- Frequency: 50 Hz

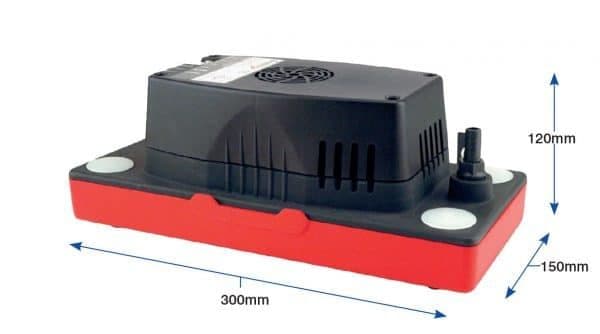

- Dimensions (HxWxL): 120 x 150 x 300 mm
- High Level Alarm: 230V / 3A
- Inlet Height from Base: 112 mm
- Cable Length: 1.8 m
- Drink Cycle: 460 ml
- On Level: 15.5 mm
- Off Level: 6 mm
- Reserve Before Overflow: 140 ml
- Alarm Level: 25 mm
- Tank Capacity: 1 L
