Condensate Drain Pump AT/CDP200D
High-Efficiency Automatic Drain Pump for Air Conditioners & HVAC Systems
The ABLTEK AT/CDP200D is a powerful and compact condensate removal pump designed to handle water drainage in air conditioning and refrigeration systems. With a maximum discharge head of 5 meters and a flow rate of 200L/H, this pump ensures efficient water removal, preventing overflow and water damage. It is ideal for residential, commercial, and industrial HVAC applications.
Key Features:
-
✅ Powerful Performance: Handles up to 200 liters per hour with a maximum discharge head of 5 meters.
-
✅ Built-in Safety Alarm: Includes a buzzer to alert users of system issues or water overflow.
-
✅ Wide Voltage Compatibility: Operates from 100–230V and 50/60Hz for global usage.
-
✅ Compact & Durable Design: Made for easy installation in tight HVAC spaces with a sturdy build.
-
✅ Integrated Level Indicator: Built-in spirit level ensures correct horizontal placement during installation.

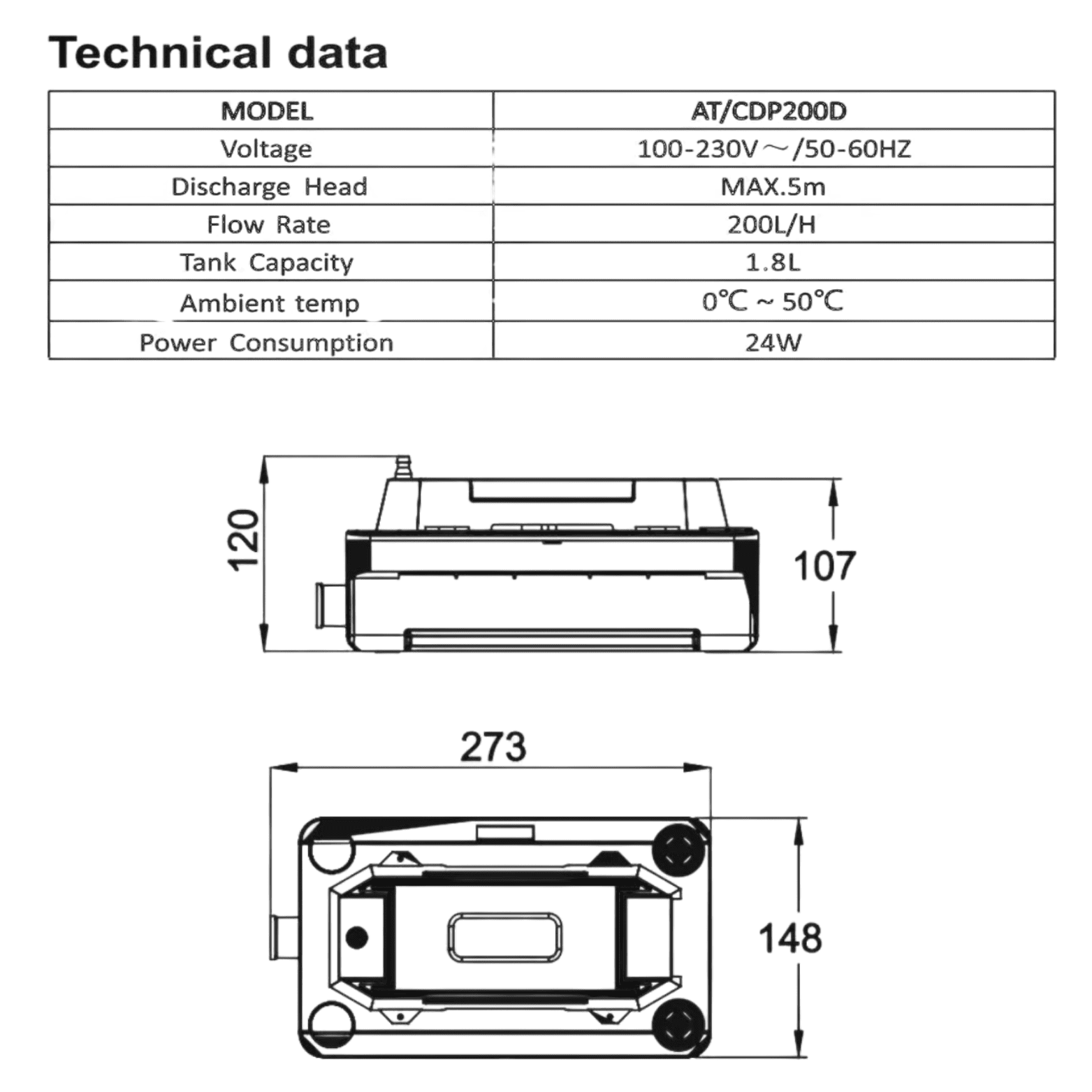

Technical Data:
| Model | AT/CDP200D |
|---|---|
| Voltage | 100–230V / 50–60Hz |
| Discharge Head | Max. 5 meters |
| Flow Rate | 200 L/h |
| Tank Capacity | 1.8 liters |
| Ambient Temperature | 0°C ~ 50°C |
| Power Consumption | 24W |
| Dimensions (LxWxH) | 273 × 148 × 120 mm |
Installation & Safety Notes:
-
Must be installed level; tilting can affect water level sensing.
-
Do not place electrical devices beneath the pump to avoid damage from leaks.
-
Only certified professionals should perform the installation.
-
Not waterproof – avoid outdoor or flood-prone areas.
-
Requires a dedicated power supply.
-
Do not exceed the rated flow volume to avoid pump failure.
-
If buzzer sounds continuously, shut down system and seek professional servicing.
