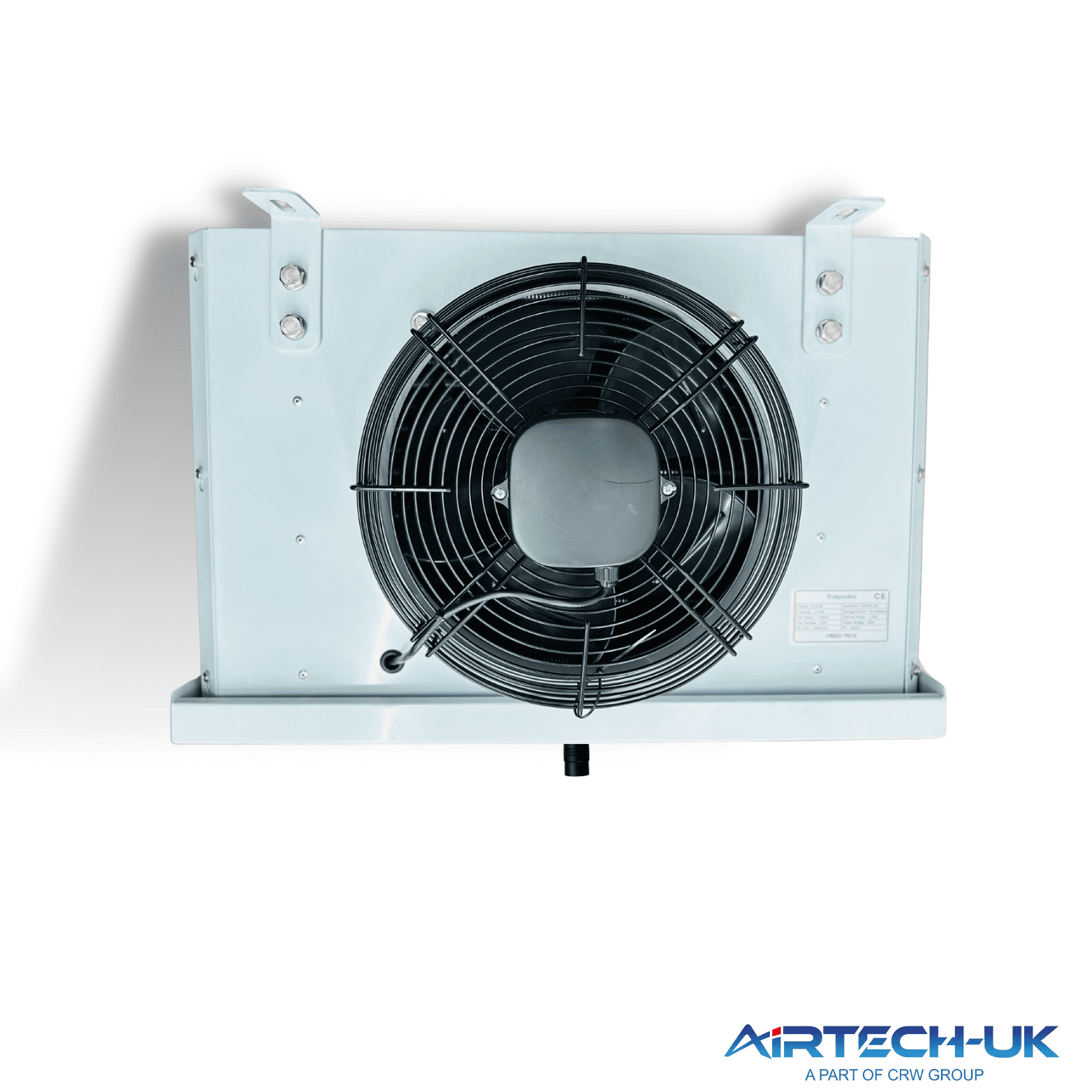

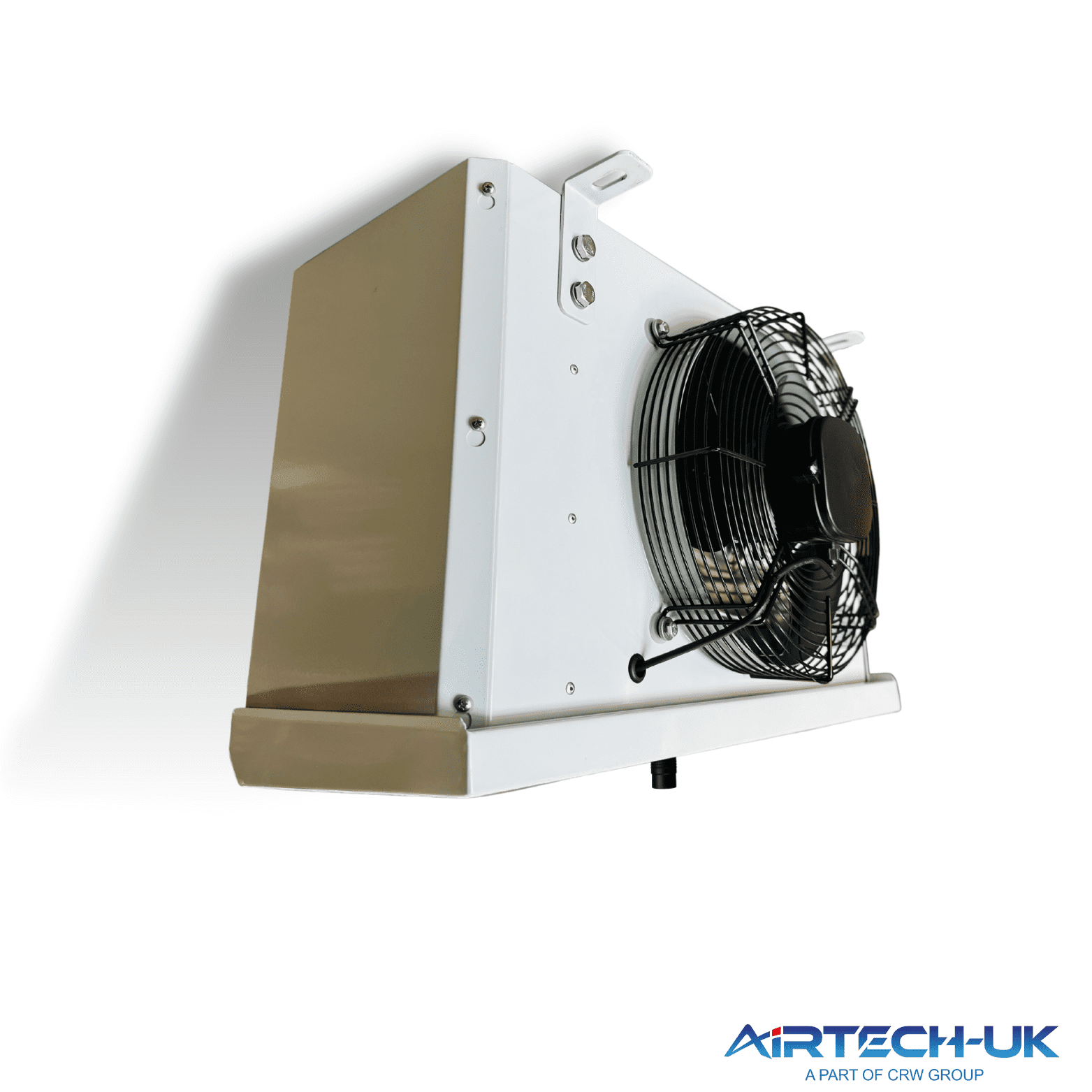

CRL2.2/311A Cubic Box Type Evaporator Single Fan for Condensing Unit Chiller Application

CRL2.2/311A Cubic Box type Evaporator Single Fan for Condensing Unit Chiller Application

Evaporator feature compact structure, no occupation of the cold room area. It cools the foods faster than the natural convection pipe evaporators, and thus keeps a longer fresh keeping time.

Functions

As the refrigeration equipment, working together with the condensing units, DL is for around 0C for eggs, groceries etc, DD for ~ -18C for meat fish etc.

Features

• Cabinet of plastic sprayed steel sheet, or pressed ALU sheet, it is corrosive proof, and pleasant outlook.

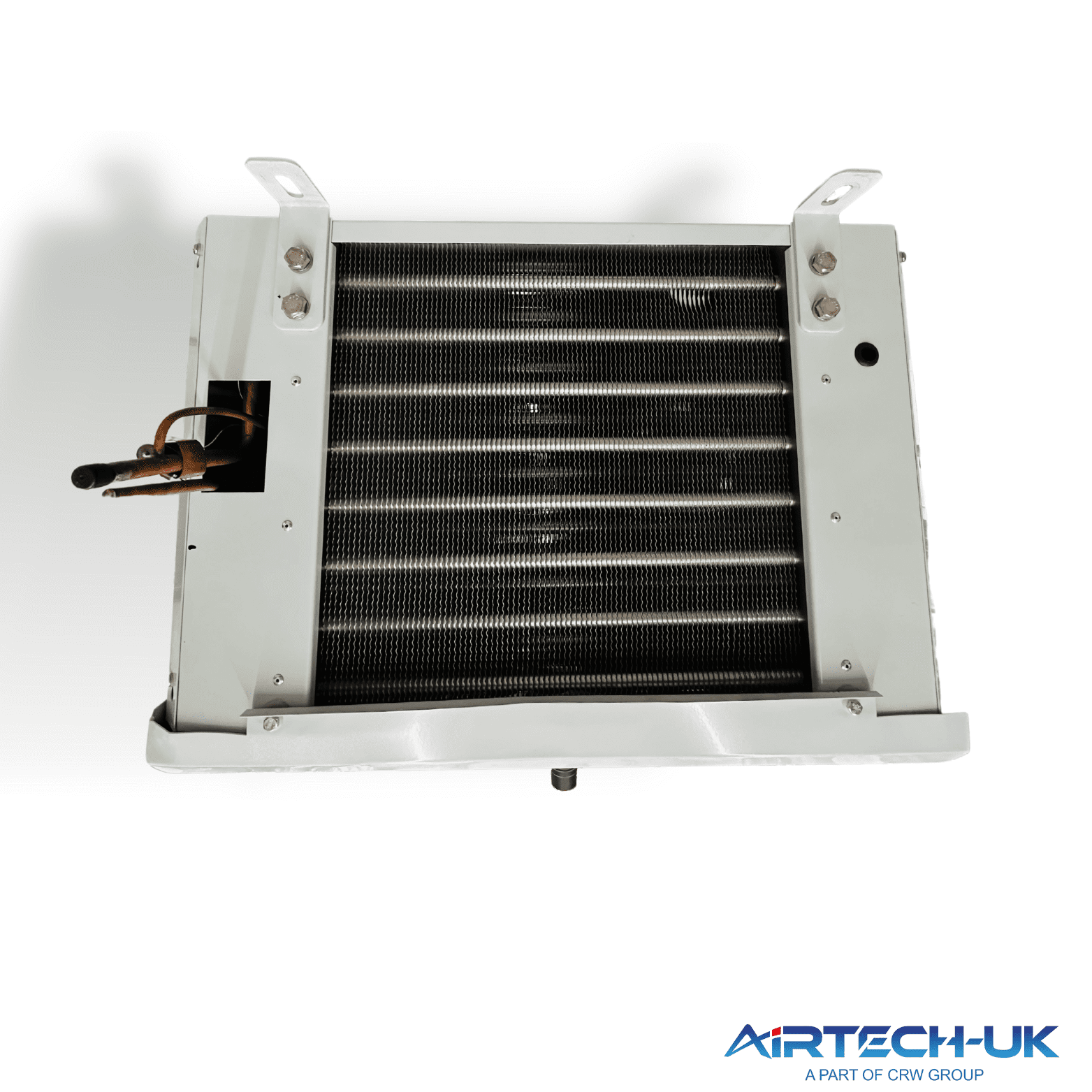

• Coils are in an interlaced arrangement mode, and are made with pipe expansion technique, thus they owns high heat transfer efficiency.
• Wiring is made in the workshop, integrated in the terminal box for convenient repairing.
• Motor and fans is of low noisy.
• World leading brand low temperature motor;
• They have double layer water receiver, which is reliable and good for freezing prevention.
• It employs groove type hanging rods, easy for installation.
• It employs U shaped Stainless steel defrosting heater with excellent defrosting.

Specifications

• Box Type Single Fan Evaporator
• Capacity: 2.2 kW
• Air: 1500 m³/h
• Throw: 9 m
• Pipe: 1.4 dm³
• Fan Voltage: 380 V
• Fan Diameter: 315 mm
• Fan Power: 90 W
• Defroster Voltage: 220 V
• Defroster Coil: 1 P(kW)
• Defroster Receiver: 0.5 P(kW)
