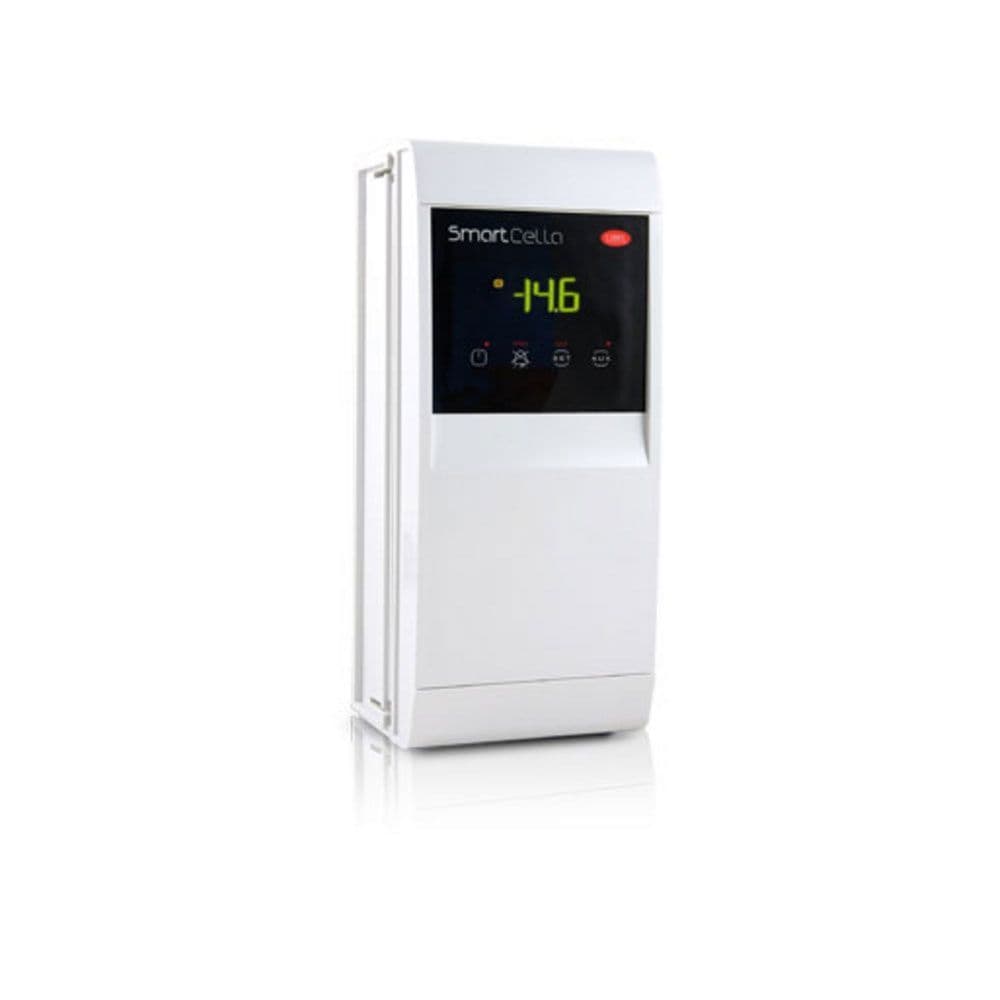

SmartCella is based on a standard controller integrated in an industrial designed IP65 box. Together with UltraCella and MasterCella, completes and enhances the CAREL offering for cold rooms. In terms of P/Ns, only a couple of models directly related to number of loads to handle, to probes and features necessary to target applications: model with 1 relay for normal temperature NT cold rooms, model with 4 relays for low temperature LT cold rooms.
I/O configuration:
SmartCella is easily expandable with additional contents thanks to the choice to use the UltraCella expansion module box. In addition to providing IP65 protection and family-feeling with the UltraCella platform, this choice allows free space available inside the box for:
I/O configuration:
- Up to 4 output relays (compressor 16A/2HP in according to the model, defrost 16A, evaporator fans 8A and auxiliary output 8A for additional features)
- 5 analog inputs (2 x NTC + 3 x NTC / digital inputs)
- 1 serial with CAREL / Modbus (slave) protocol with auto-recognition
- SmartCella satisfies all the cold room user, in all the working phases: from installation to commissioning for installers, to daily use for end users.
- Track for DIN rail for fast wall mounting
- I/O board of ir33 DIN control, more suitable for installation inside box than standard panel controller
- Standard and already well known ir33 DIN wiring diagrams
- SmartCella is easy to commission and use in daily work thanks to:
- The same ir33+ logic about regulation algorithms, navigation and parameters
- Simple and user-friendly user interface, with touch keypad and large buttons; feature/button matching is the same as ir33+.
SmartCella is easily expandable with additional contents thanks to the choice to use the UltraCella expansion module box. In addition to providing IP65 protection and family-feeling with the UltraCella platform, this choice allows free space available inside the box for:
- External relays
- Auxiliary terminals and to have add-on contents coming from the UltraCella platform:
- Ultra EVD module
- Ultra Power module
- Smart solution based on ir33+ logic and experience
- Intuitive user interface
- Flexible IP65 box ready for additional components
- Modbus and Carel protocols with auto-recognition
- DIN rail for fast wall mounting
Customer reviews
-
Brand:Carel
-
Product Code:Carel Control Panel Smartcella
-
Weight:2kg
