Monoblock 0-4C ( Chiller Application)

These units come complete with:

Control panel complete with control unit and autonomous ON/OFF switch.
Evaporator with variable frequency electrical defrosting.
Condensate collection tub complete with evaporation coil and overflow pipe.
Cold room door resistance power cable.
Cold room door fan cut off micro switch.
Cold room light (with lamp and ceiling lamp).

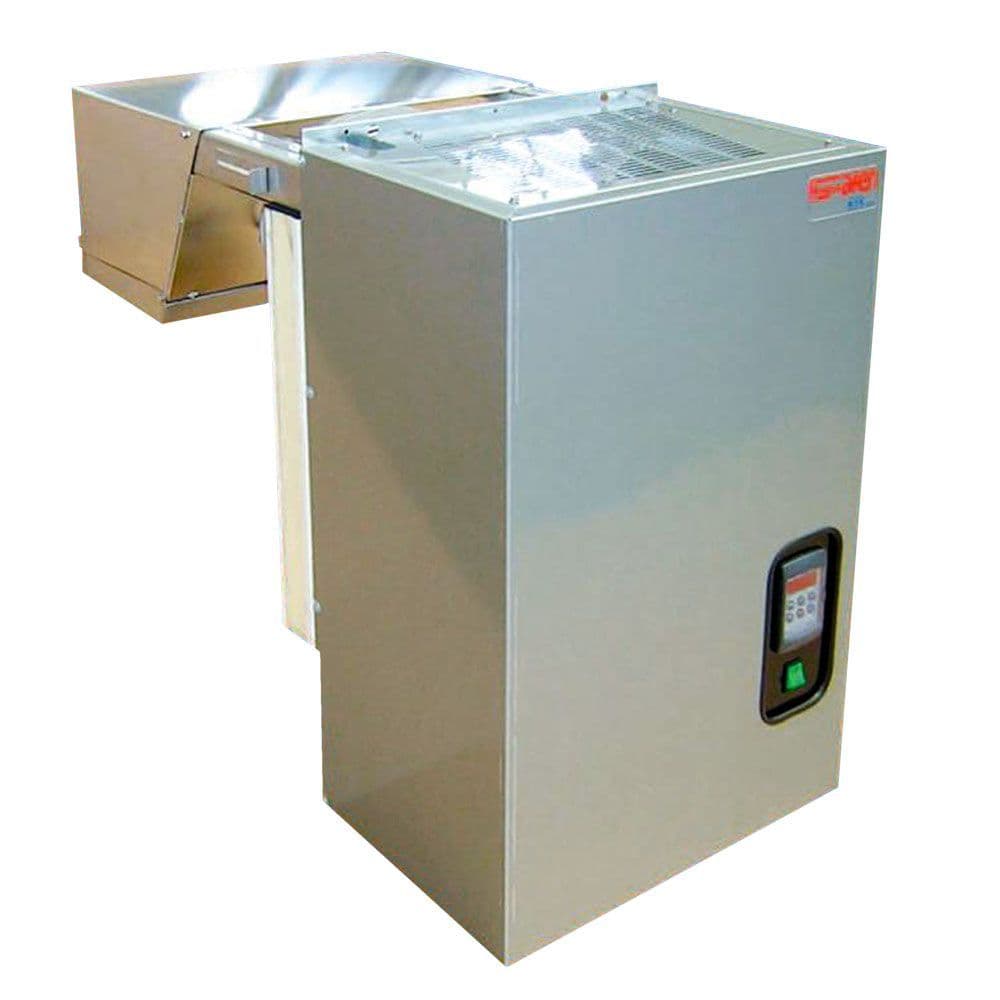

Standard Unit comes as wall mounted straddle unit.  Through the wall kit is available as an option @ £100 + VAT.   This is shown in the image as demonstration.

TECHNICAL DETAILS:

Application range NT (-5° ; +5°) and LT (-25° ; -15°)
Stainless steel bearing structure
Plastified metal cover,
Aluminium sheet inner evaporator case.
Hermetic compressor with thermal protection.
Heat exchangers with copper pipes and aluminium finning and frame.
Capillary expansion.
High capacity and low noise fan motors.
Standard Unit comes as wall mounted straddle unit.  Through the wall kit is available as an option @ £100 + VAT

OPTIONAL:

Condenser fan pressure switch.
Evaporator coil painting anti corrosion.

ADVANTAGES:

Easy and fast to install.
Reduced work on cold room panels.
The cover is designed to allow easy accessible and fast maintenance operations.
Energy saving: the unit is optimised to obtain the best possible output/energy consumption ratio.

External temp. +32°C

Code    Model    Temperature inside the cell    Volt/Ph/Hz
-5 C°    0 C°    +5 C°
m³    W    m³    W    m³    W
19101053    UMZHG/05A1    6,9    923    7,7    941    10,6    990    230 / 1 / 50
19101073    UMZHG/07A1     9,6    1186    12,7    1383    17,3    1305    230 / 1 / 50
19101083    UMZHG/08A1    10,6    1278    13,8    1482    18,4    1376    230 / 1 / 50
19101123    UMZHG/12A2     16,1    1789    20,7    2071    26,4    1891    230 / 1 / 50

External temp. +43°C

Code    Model    Temperature inside the cell    Volt/Ph/Hz
-5 C°    0 C°    +5 C°
m³    W    m³    W    m³    W
19101053    UMZHG/05A1    5,3    874    6,9    999    7,7    913    230 / 1 / 50
19101073    UMZHG/07A1     7,7    1150    9,6    1276    12,7    1215    230 / 1 / 50
19101083    UMZHG/08A1    8,4    1233    10,6    1373    13,8    1298    230 / 1 / 50
19101123    UMZHG/12A2    12,7    1670    16,1    1909    20,7    1796    230 / 1 / 50

Monoblock User Manual

NOTE: Delivery Of Monoblock Unit Will required 2 Working Days
