These units come complete with:
Control panel complete with control unit and autonomous ON/OFF switch.
Evaporator with variable frequency electrical defrosting.
Condensate collection tub complete with evaporation coil and overflow pipe.
Cold room door resistance power cable.
Cold room door fan cut off micro switch.
Cold room light (with lamp and ceiling lamp).

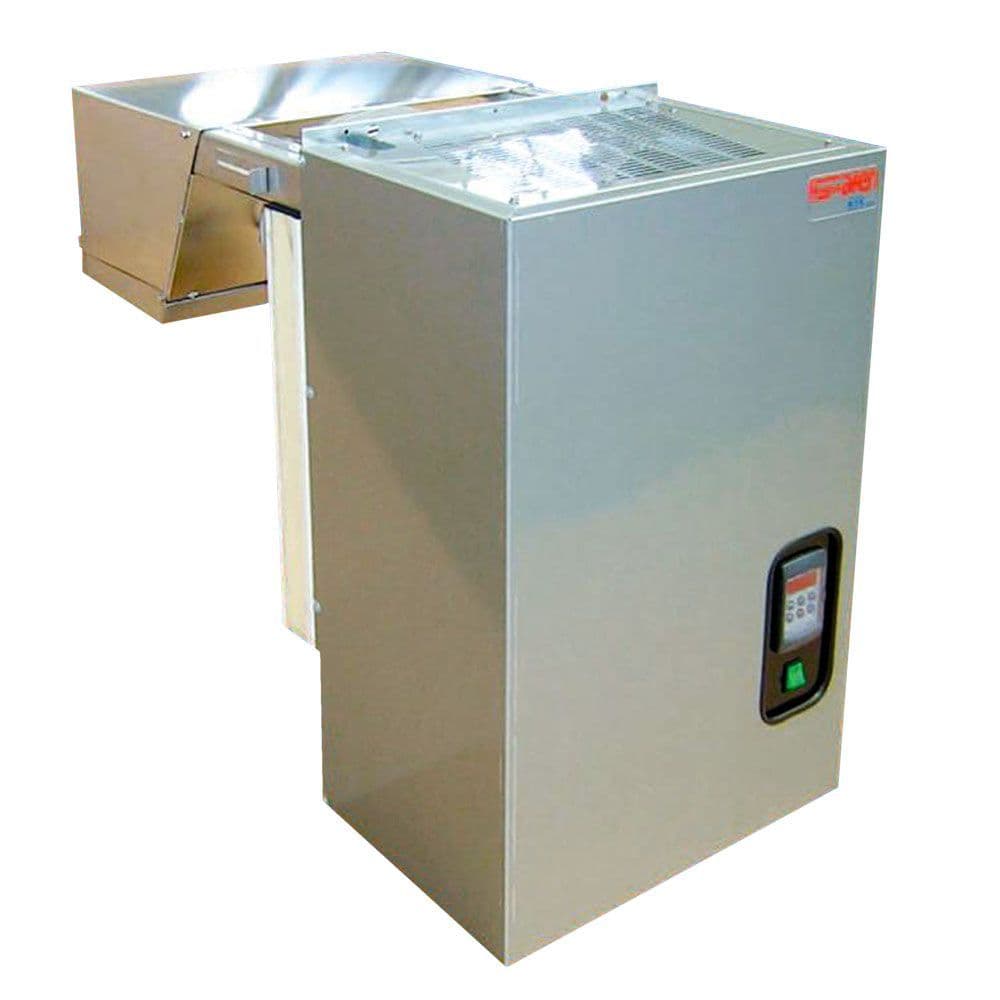

Standard Unit comes as wall mounted straddle unit. Through the wall kit is available as an option @ £100 + VAT. This is shown in the image as demonstration.
TECHNICAL DETAILS:
Application range NT (-5° ; +5°) and LT (-25° ; -15°)
Stainless steel bearing structure
Plastified metal cover,
Aluminium sheet inner evaporator case.
Hermetic compressor with thermal protection.
Heat exchangers with copper pipes and aluminium finning and frame.
Capillary expansion.
High capacity and low noise fan motors.
OPTIONAL:
Condenser fan pressure switch.
Evaporator coil painting anti corrosion.
ADVANTAGES:
Easy and fast to install.
Reduced work on cold room panels.
The cover is designed to allow easy accessible and fast maintenance operations.
Energy saving: the unit is optimised to obtain the best possible output/energy consumption ratio.
| External temp. +32°C | |||||||||
| Code | Model | Temperature inside the cell | Volt/Ph/Hz | ||||||
| -25 C° | -20 C° | -15 C° | |||||||
| m³ | W | m³ | W | m³ | W | ||||
| 19105053 | UMZG/05A1 | 5,3 | 962 | 7 | 1032 | 7 | 1032 | 230 / 1 / 50 | |
| 19105081 | UMZG/08U2 | 9,6 | 1419 | 13,8 | 1640 | 13,8 | 1640 | 230 / 1 / 50 | |
| External temp. +43°C | |||||||||
| Code | Model | Temperature inside the cell | Volt/Ph/Hz | ||||||
| -25 C° | -20 C° | -15 C° | |||||||
| m³ | W | m³ | W | m³ | W | ||||
| 19105053 | UMZG/05A1 | 4,2 | 918 | 5,8 | 1052 | 5,8 | 1052 | 230 / 1 / 50 | |
| 19105081 | UMZG/08U2 | 7 | 1284 | 10,6 | 1476 | 10,6 | 1476 | 230 / 1 / 50 | |
NOTE: Delivery Of Monoblock Unit Will required 2 Working Days
Customer reviews
-
Brand:AirTech-UK
-
Product Code:1.5 HP Monoblock (05A1) FREEZER
-
Weight:110kg
