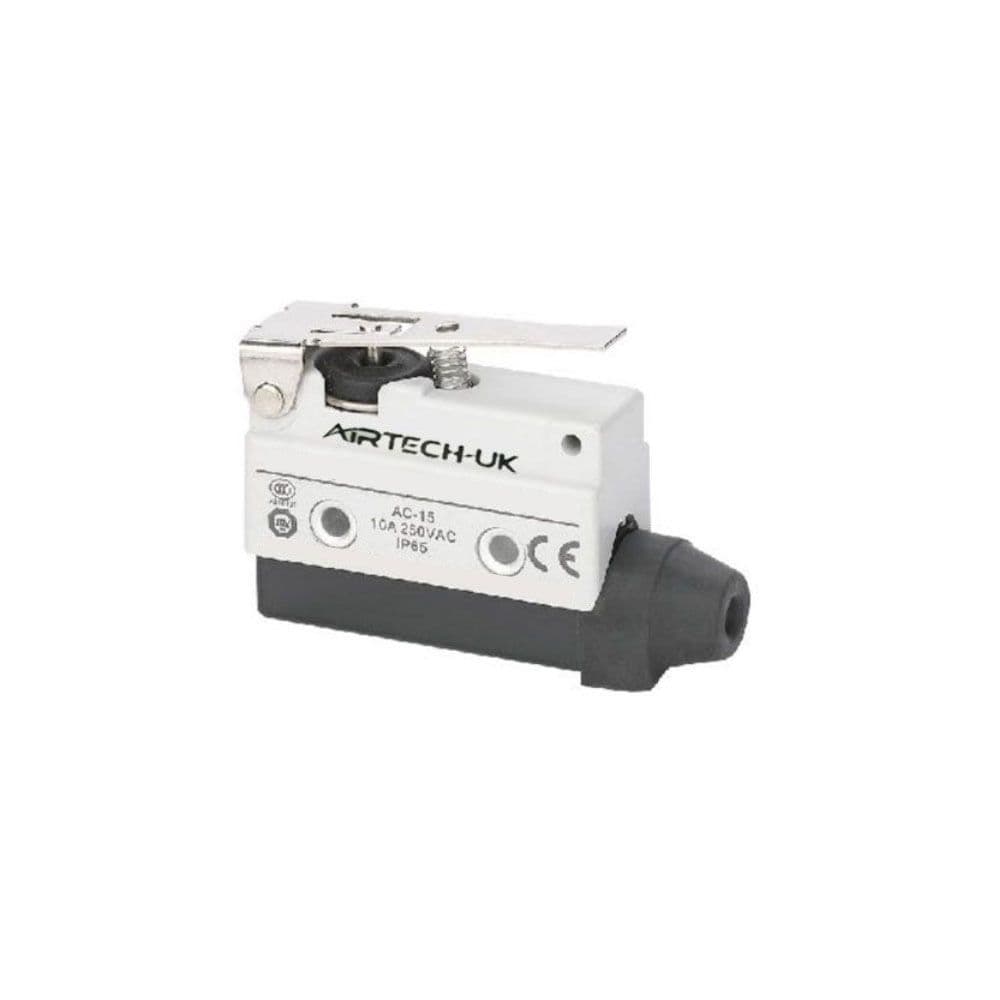

Micro Limit Switch 7140
10A 250V short lever type plastic material limit switch
Adopt outer shell with intensive plastic and sealed construction,better mechanical strength and water-proof and oil-proof;
Side fixed form and swift contact;
Variety of levers;
Widely used in Mechanical equipment,automatic machine,and instrument, electro motion tool etc.
Specification
Item Data
Rating load 10A/250VAC
Operating speed 0.1mm-50cm/s
Operating frequency Mechanical 120times/min
Electrical 20times/min
Insulation resistance 100M(Above)DC500V
Contact resistance 25M(initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000 above
Mechanical 1,000,000 above
Protection degree IP65
Operating temperature -10~+80
Operating humidity 85%

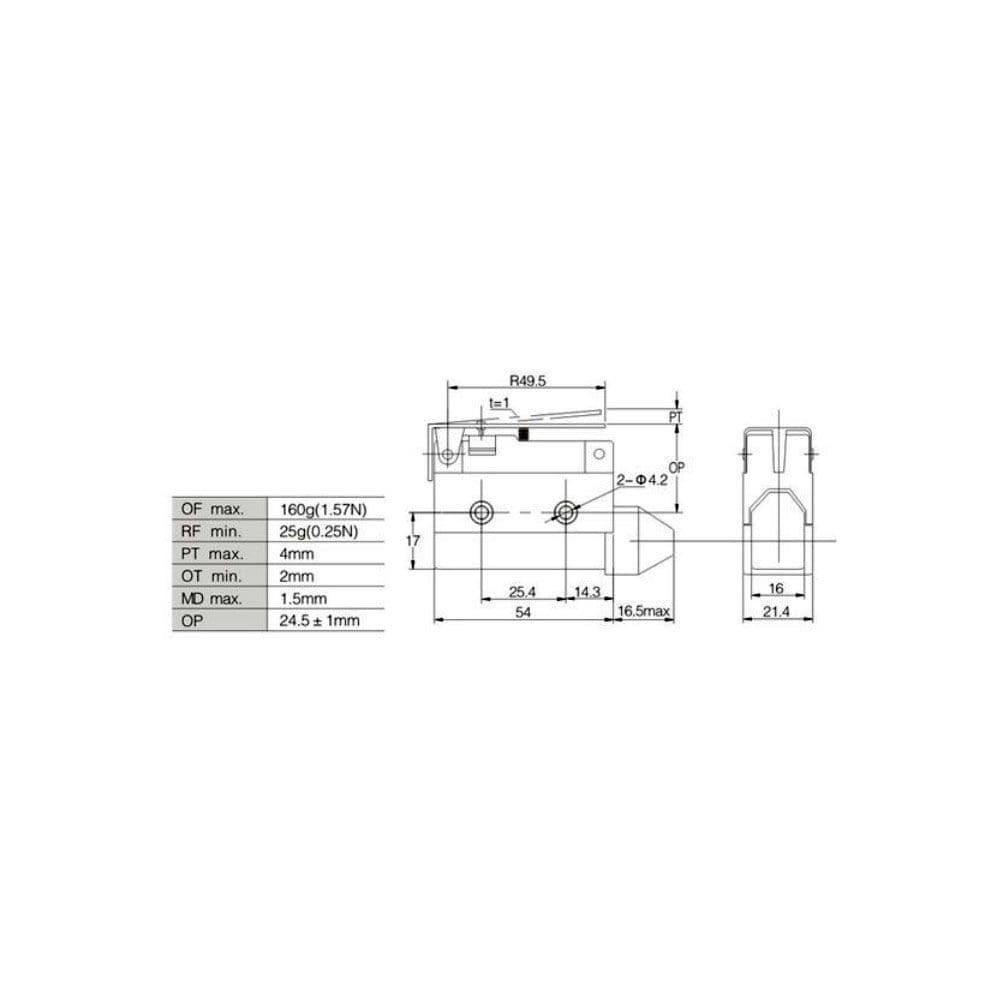

Dimensions/Operating Characteristics
OF max. 160g(1.57N)
RF min. 25g(0.25N)
PT max. 4mm
OT min. 2mm
MD max. 1.5mm
OP 24.5±1mm
10A 250V short lever type plastic material limit switch
Adopt outer shell with intensive plastic and sealed construction,better mechanical strength and water-proof and oil-proof;
Side fixed form and swift contact;
Variety of levers;
Widely used in Mechanical equipment,automatic machine,and instrument, electro motion tool etc.
Specification
Item Data
Rating load 10A/250VAC
Operating speed 0.1mm-50cm/s
Operating frequency Mechanical 120times/min
Electrical 20times/min
Insulation resistance 100M(Above)DC500V
Contact resistance 25M(initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000 above
Mechanical 1,000,000 above
Protection degree IP65
Operating temperature -10~+80
Operating humidity 85%
Dimensions/Operating Characteristics
OF max. 160g(1.57N)
RF min. 25g(0.25N)
PT max. 4mm
OT min. 2mm
MD max. 1.5mm
OP 24.5±1mm
