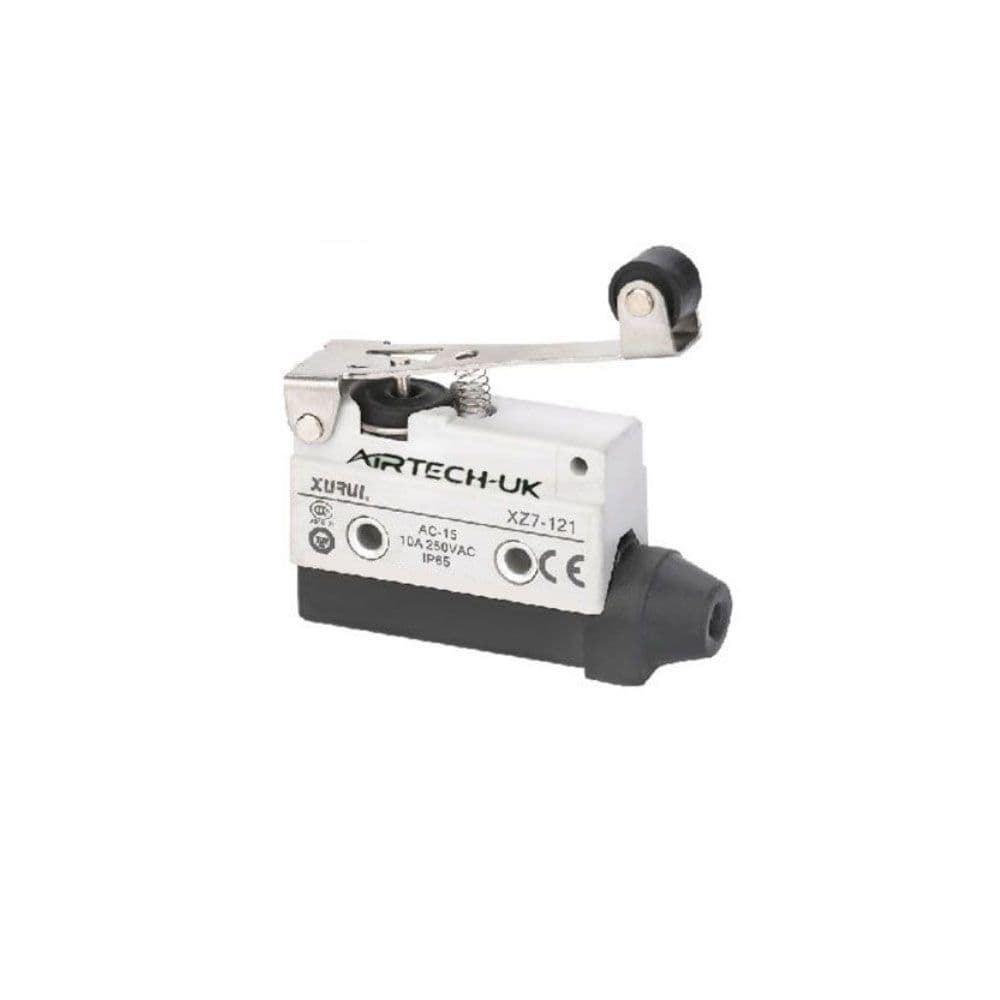

Micro Limit Switch 7121
10A 250V hinge roller lever type plastic material limit switch
Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and weater-proof and oil-proof;
Side fixed form and swift contact;
Variety of levers;
Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

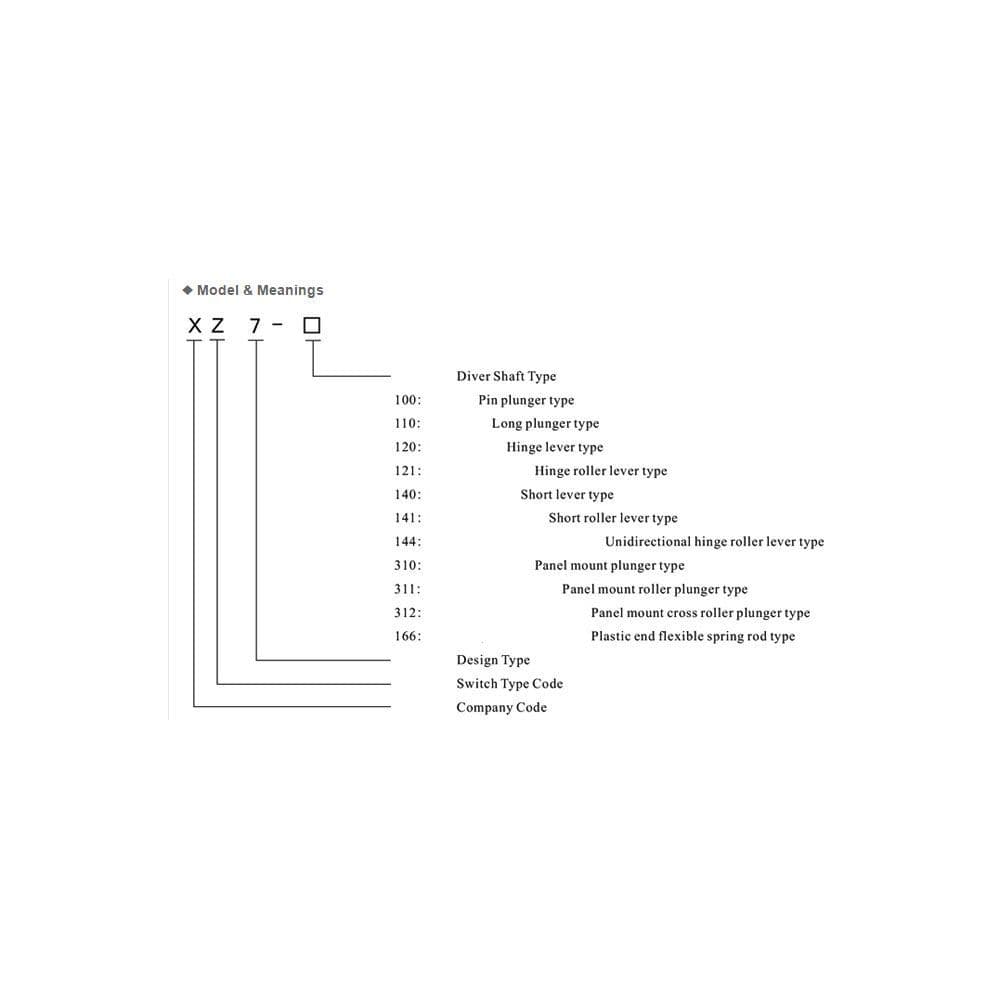

Model & Meanings
Specification
Item Data
Rating load 10A/250VAC
Operating speed 0.1mm-50cm/s
Operating frequency Mechanical 120times/min
Electrical 20times/min
Insulation resistance 100M(Above)DC500V
Contact resistance 25M(initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000above
Mechanical 1,000,000above
Protection degree IP65
Operating temperature -10~+80
Operating humidity 85%
Dimensions/Operating Characteristics
OF max. 130g(1.27N)
RF min. 22g(0.22N)
PT max. 8.5mm
OT min. 3.2mm
MD max. 2mm
OP 40±1mm
10A 250V hinge roller lever type plastic material limit switch
Adopt outer shell with intensive plastic and sealed construction,better mechanical stength and weater-proof and oil-proof;
Side fixed form and swift contact;
Variety of levers;
Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
Model & Meanings
Specification
Item Data
Rating load 10A/250VAC
Operating speed 0.1mm-50cm/s
Operating frequency Mechanical 120times/min
Electrical 20times/min
Insulation resistance 100M(Above)DC500V
Contact resistance 25M(initial value)
Withstand voltage Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s2
Misoperation 300m/s2
Life Electrical 100,000above
Mechanical 1,000,000above
Protection degree IP65
Operating temperature -10~+80
Operating humidity 85%
Dimensions/Operating Characteristics
OF max. 130g(1.27N)
RF min. 22g(0.22N)
PT max. 8.5mm
OT min. 3.2mm
MD max. 2mm
OP 40±1mm
Customer reviews
-
Brand:AirTech-UK
-
Product Code:Limit Switch XZ7-121
-
Weight:0.1kg
