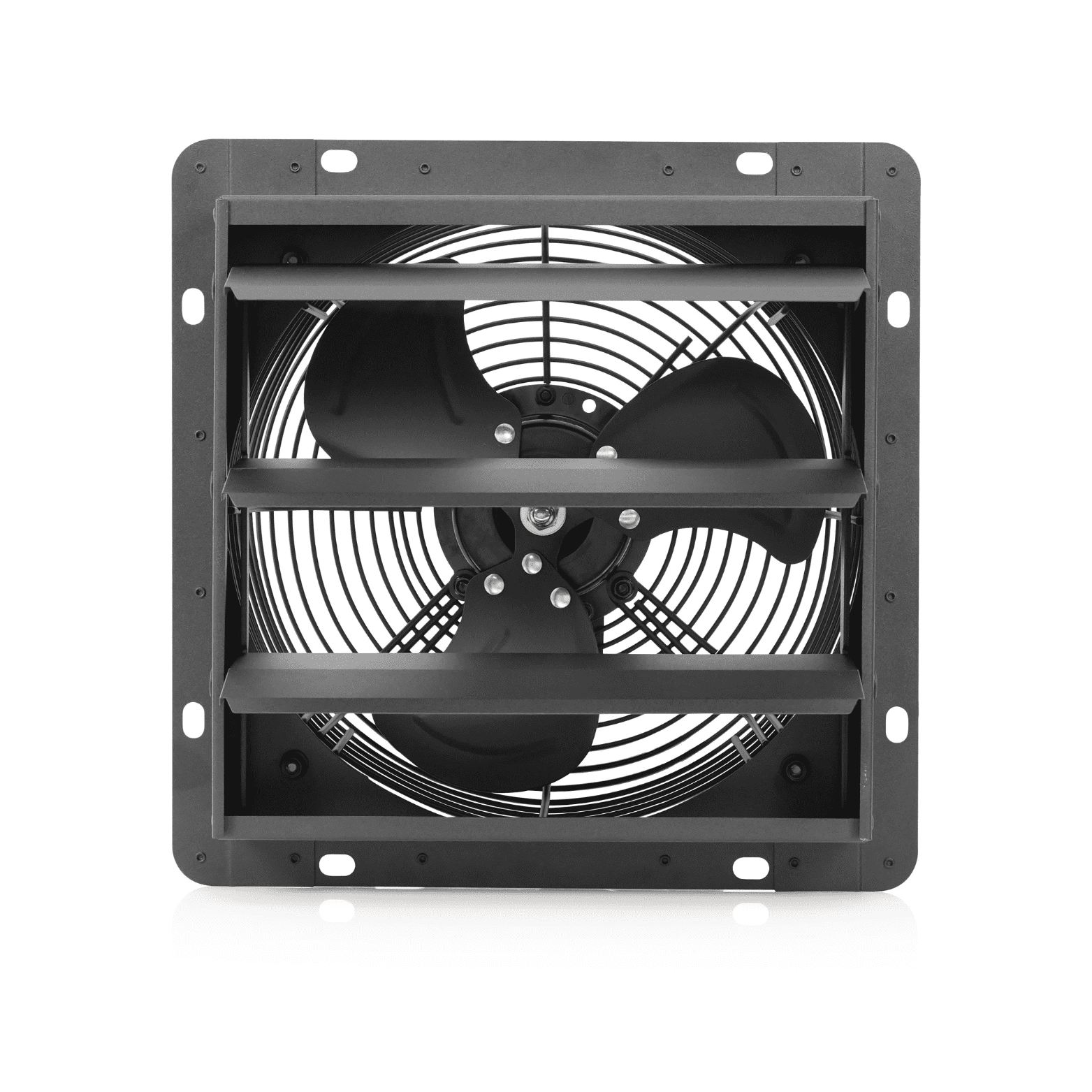

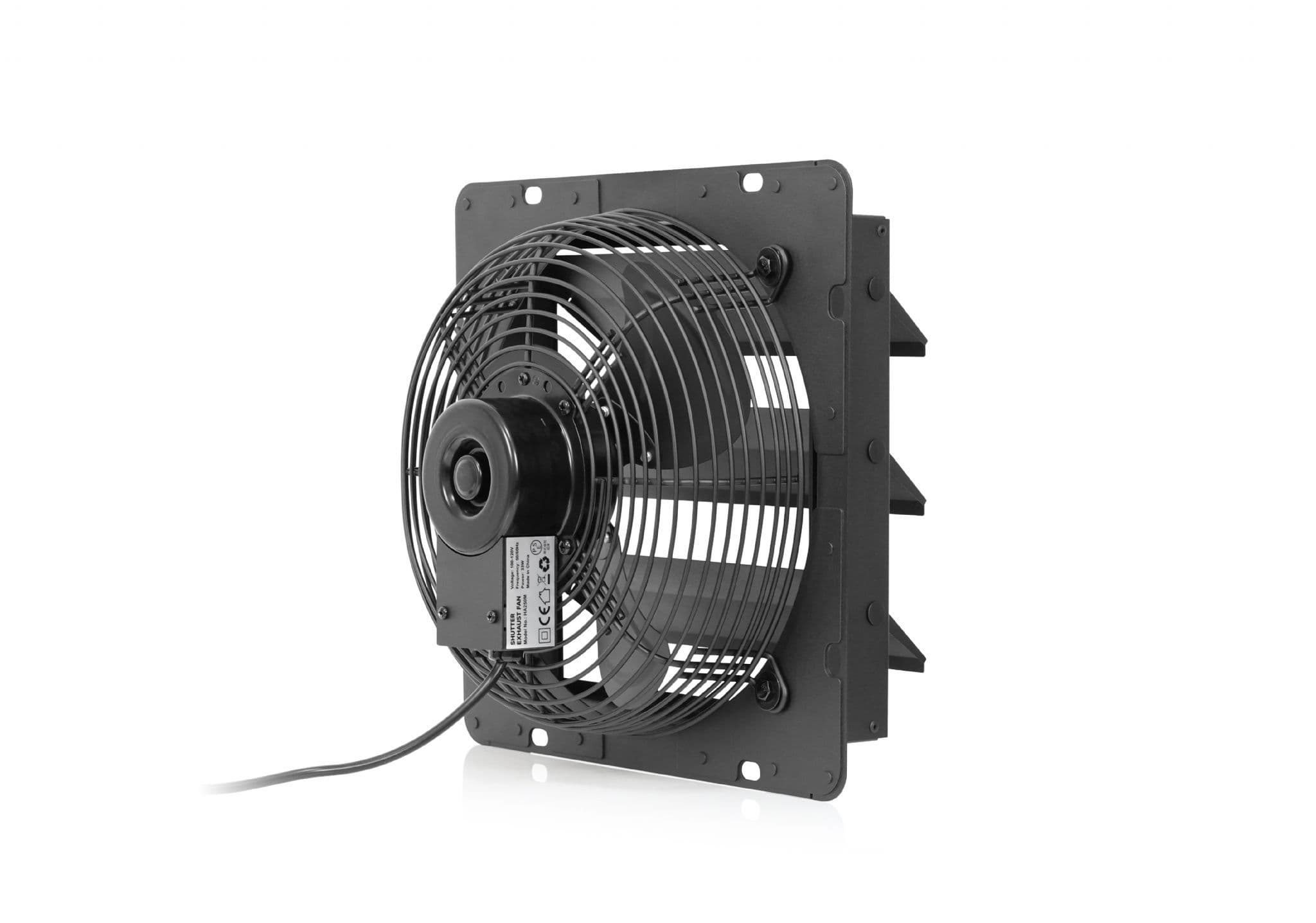

CRW 300mm Industrial Wall-Mounted Axial Exhaust Fan with Gravity Shutters | High-Performance Ventilation Fan 220-240V
Product Description:
Designed for higher ventilation needs, the CRW HA-300M is a 300mm axial exhaust fan that offers the perfect balance of airflow, energy efficiency, and build quality. Its gravity-operated louvers act as a natural check valve, automatically opening with airflow and closing when the fan is off—offering protection from debris, backdraft, and environmental contaminants.
Ideal for factories, server rooms, HVAC systems, and commercial kitchens, the HA-300M is built for medium-duty ventilation tasks where reliability and performance are a must.
Key Features:
-
✅ Efficient Ventilation: Airflow capacity of 710 m³/h, suitable for medium-sized industrial and commercial spaces.
-
✅ Low Energy Consumption: Uses only 33W of power, running efficiently on 220–240V / 50Hz mains power.
-

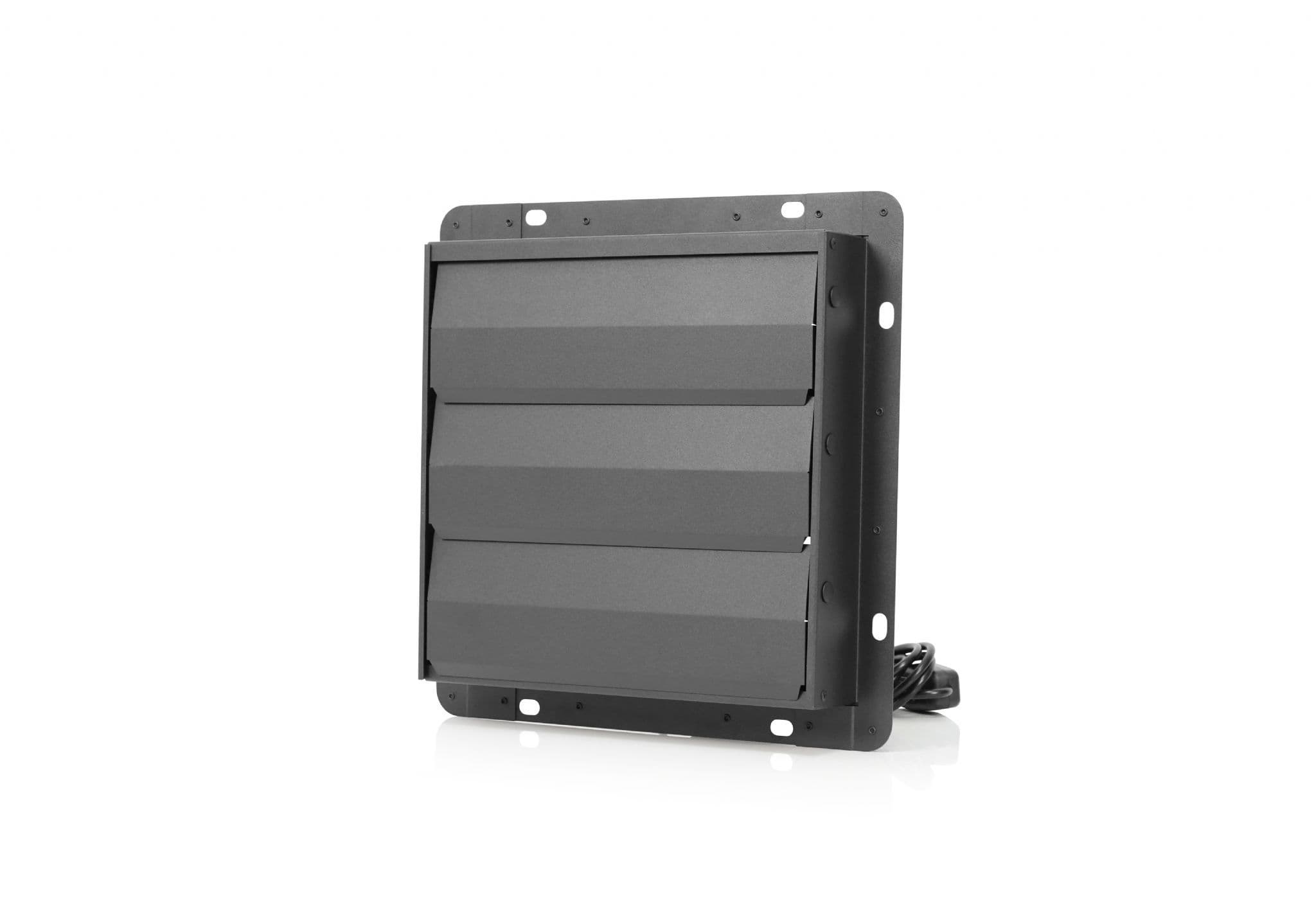

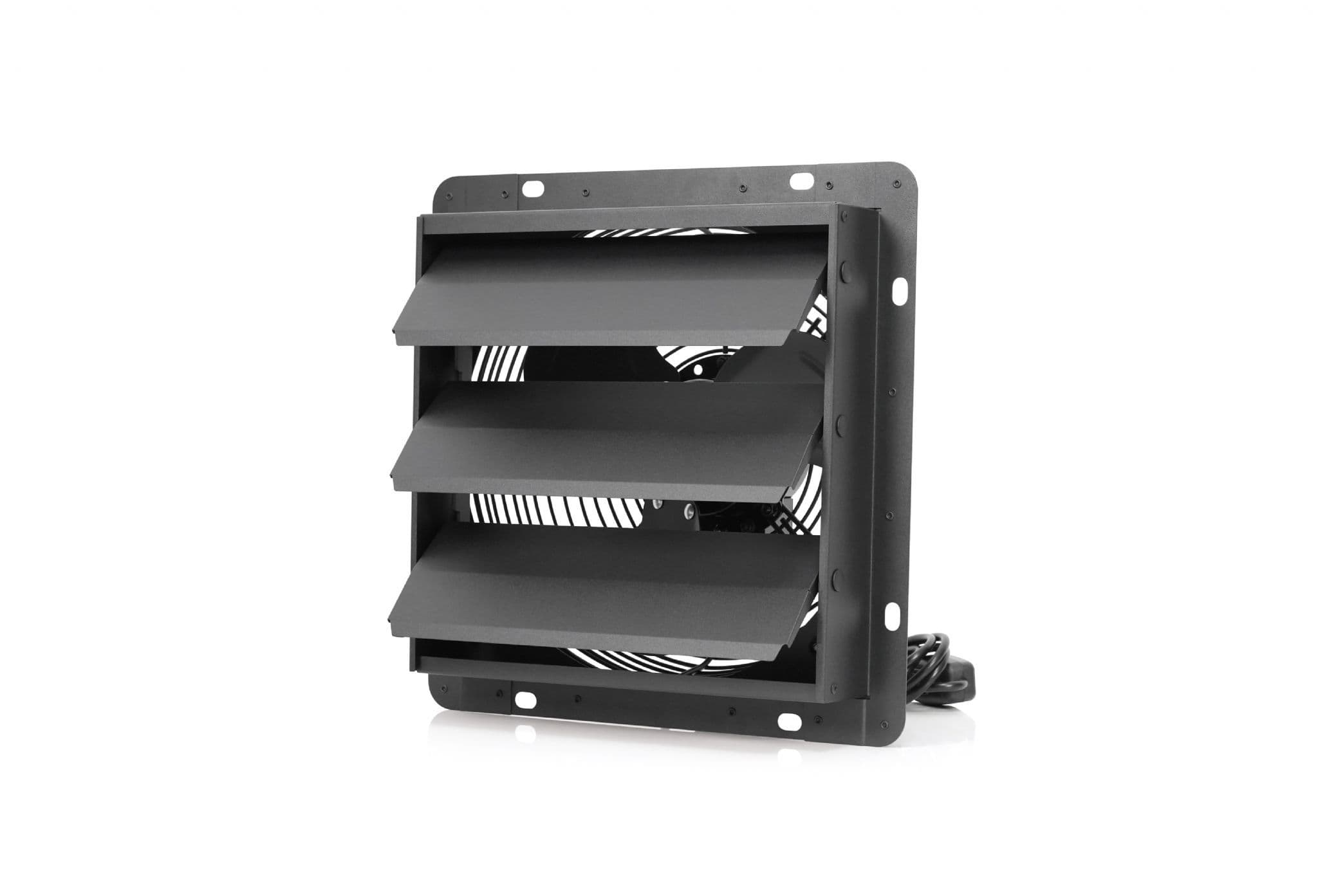

✅ Automatic Gravity Louvers: Gravity-controlled grille system opens and closes based on fan operation—no manual handling needed.
-
✅ Powerful & Balanced Operation: High-speed 1400 RPM motor and 48 Pa pressure ensure strong air movement and stable performance.
-
✅ Easy Installation: Square plate with pre-punched holes makes mounting to walls or ducts simple and fast.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | HA-300M |

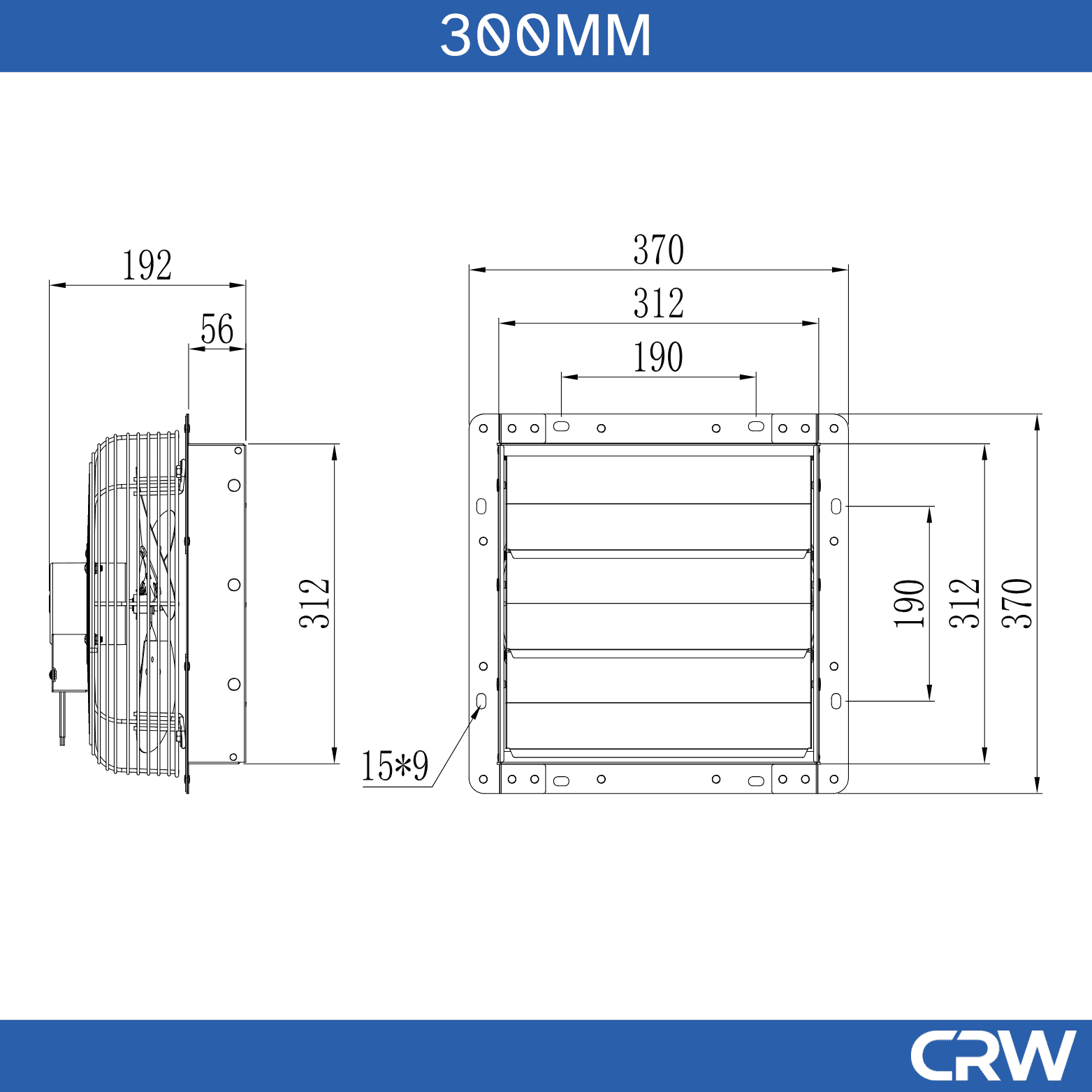

| Fan Size | 300mm (12 inches) |
| Voltage / Frequency | 220–240V / 50Hz |
| Power Consumption | 33W |
| Current Draw | 0.17 Amps |
| Rotational Speed | 1400 RPM |
| Airflow Capacity | 710 m³/h |
| Static Pressure | 48 Pa |
| Net Weight | 5.0 kg |
| Installation Type | Wall-mounted / Duct system |
| Grille Type | Gravity-operated louvers |
Customer reviews
-
Brand:Airtech-UK
-
Product Code:Plate Fan with Grille HA-300M
-
Weight:5kg
