Flexi Foot with strut 600mm Rubber Mounting Block FF600S

FLEXI FOOT WITH STRUT 600MM (FF-600-S)
(600 X 185 X 100) LWH
SAFE WORK LOAD: 420KG

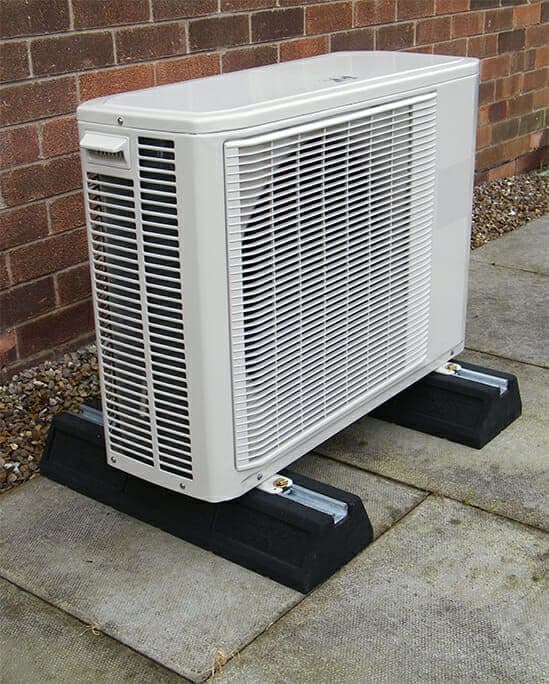

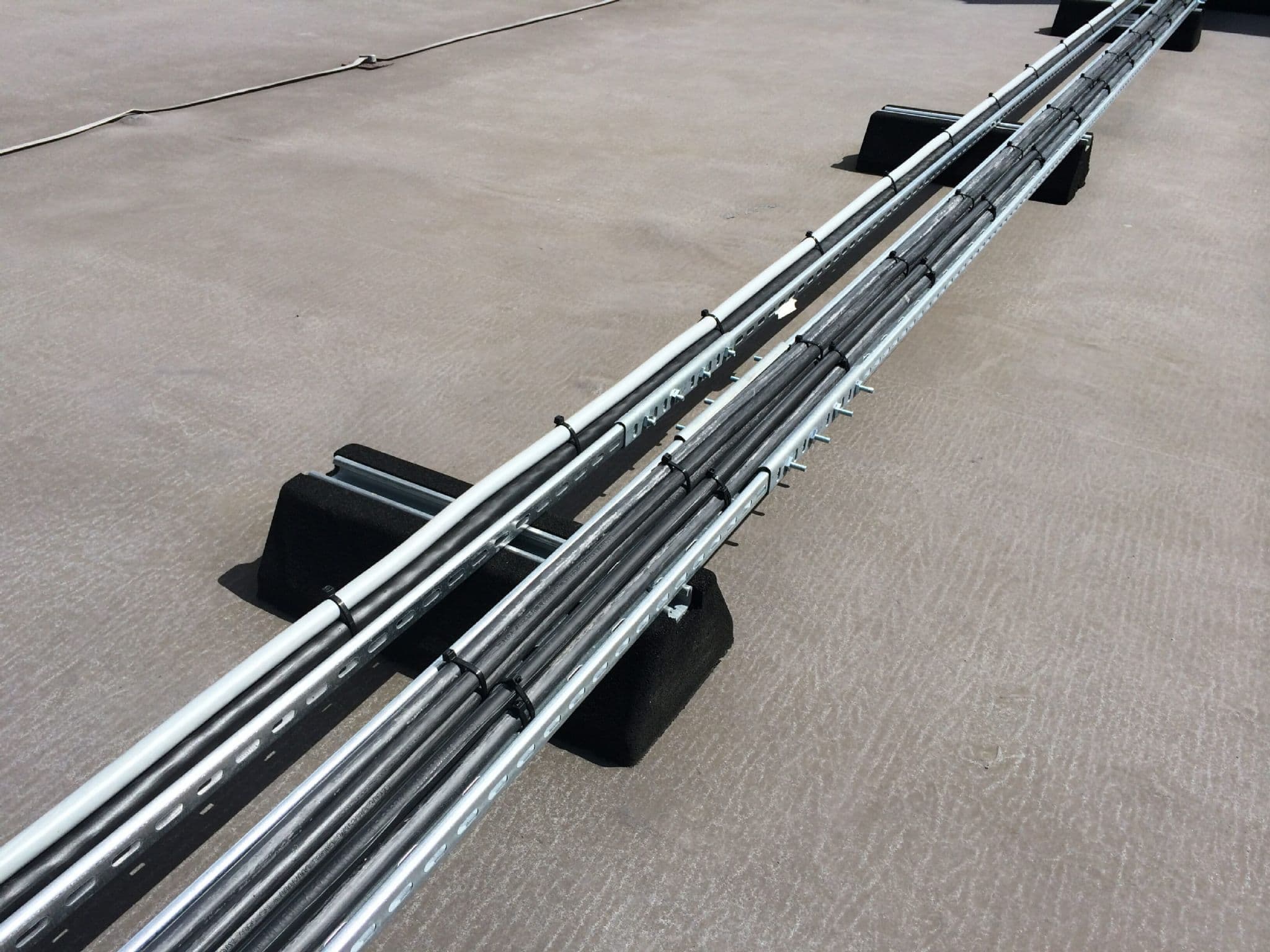

Supporting electrical containment, small F&R pipe work and single fan A/C units.

Specification:
The Flexi Foot universal has been specifically designed to allow even greater flexibility with the installer free to bolt their own 41 x 41mm or 41 x 21mm strut of varying lengths to suit many installations. The three M10 threaded inserts integrated within the foot recess provides an anchor point for the securing of additional M10 threaded stud positioned in a vertical plane and often finished off with a pipe support clamp to the top. Manufactured with drainage slots to the underside for rainwater runoff.

They are manufactured from Heavy-Duty recycled rubber and are supplied with an integral 21mm x 41mm galvanised steel strut adhered to the rubber with industrial strength adhesive. The dense nature of these products make them suitable for various lighter weight building services and are manufactured with drainage slots to the underside for rainwater run off.

Features & Benefits:

• Non-penetrative support
• Flexible design to accommodate late design changes
• Fast and simple installation
• Supplied with three M10 inserts to provide flexibility to support various equipment
• Designed for engineers with flexibility in mind
• Drainage slots to the underside
• Full AutoCAD drawing support
• Load management and wind calculations available
• Full on-site support and surveying services
