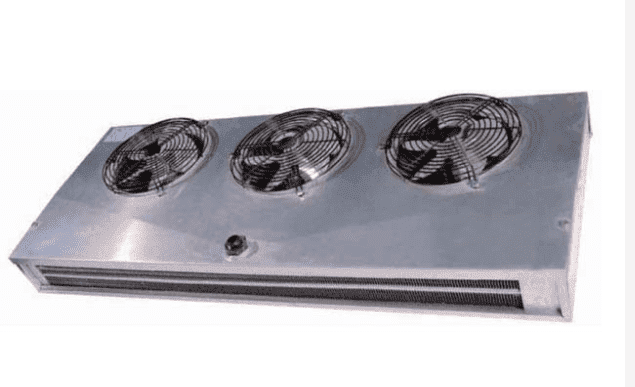

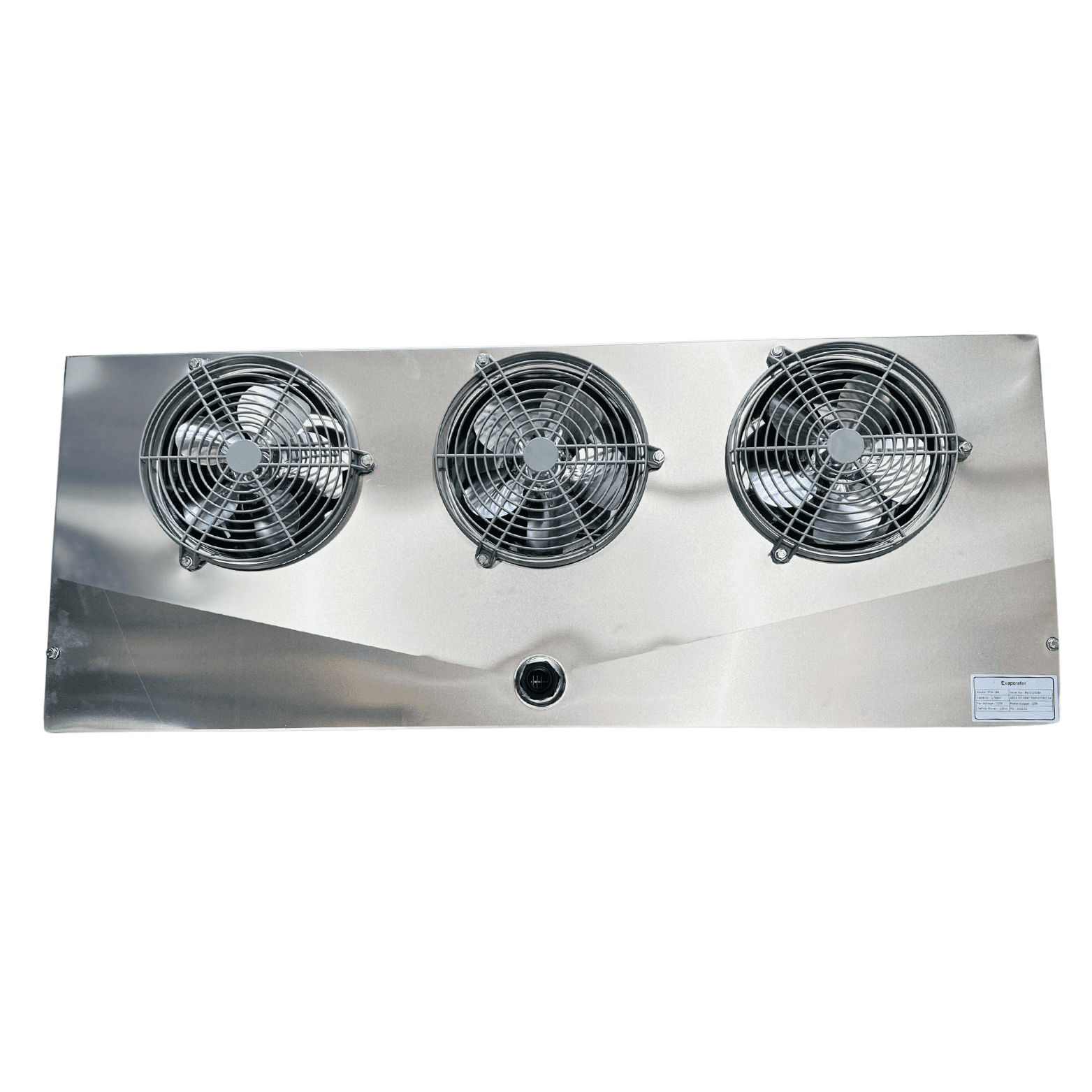

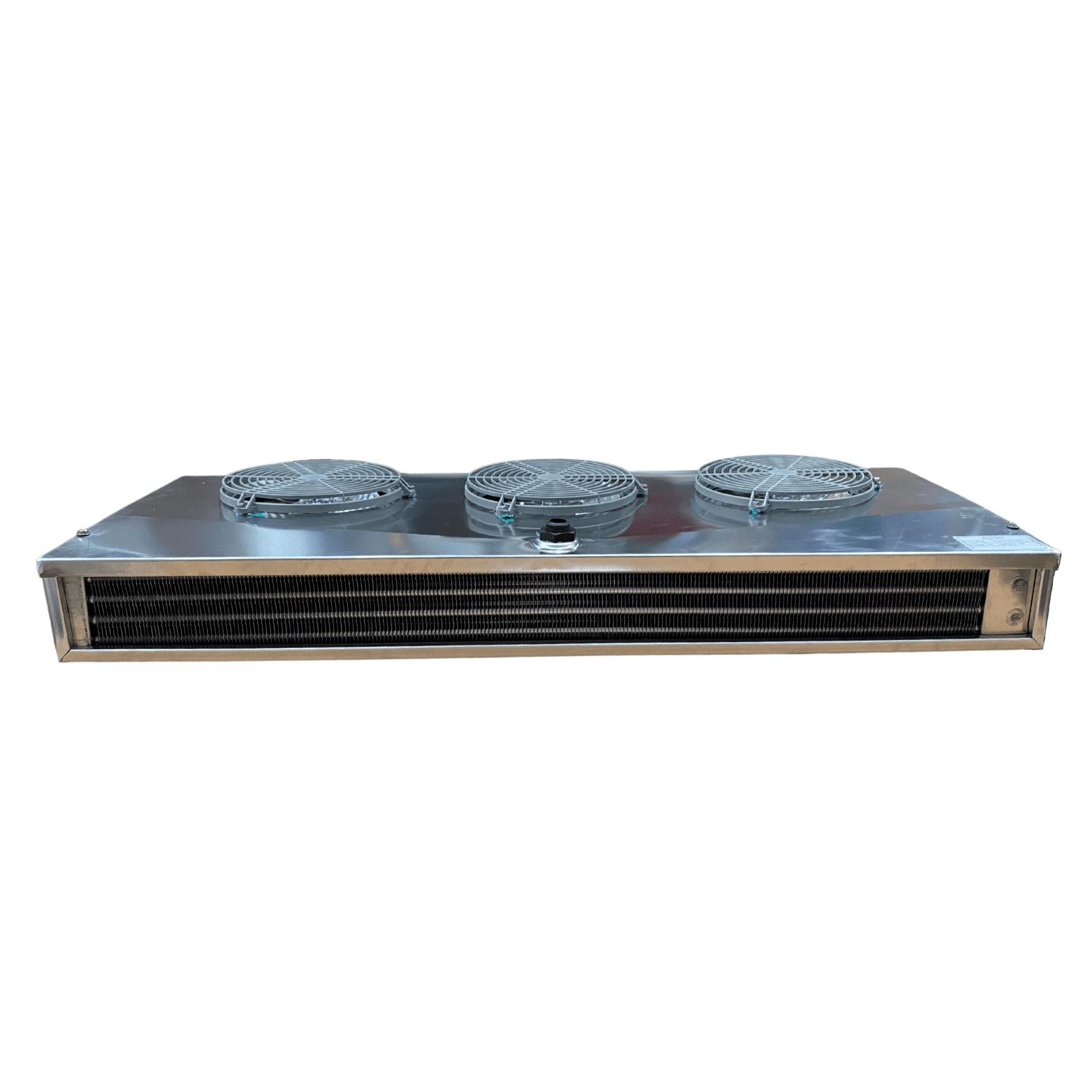

Evaporator 1.9kW Slim Three fan EVS 290 Slim Panel, ceiling mounted, Fitted Expansion Valve

Evaporator 1.9kW Slim Three fan EVS 290 Slim Panel

Product Description:

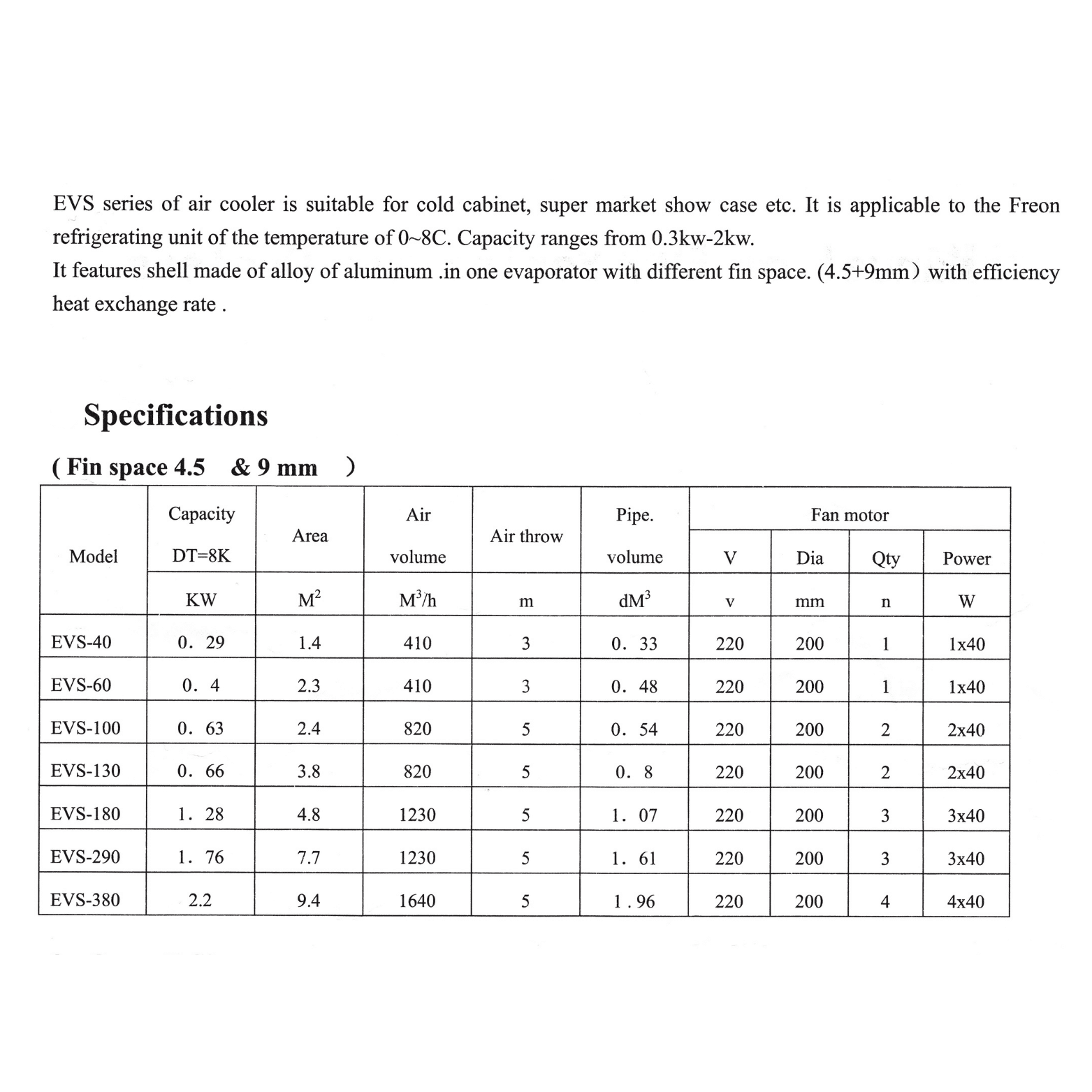

EVS series of air cooler is suitable for cold cabinet, super market show case etc. It is applicable to the Freon refrigerating unit of the temperature of 0~8C. Capacity ranges from 0.3kw-2kw.

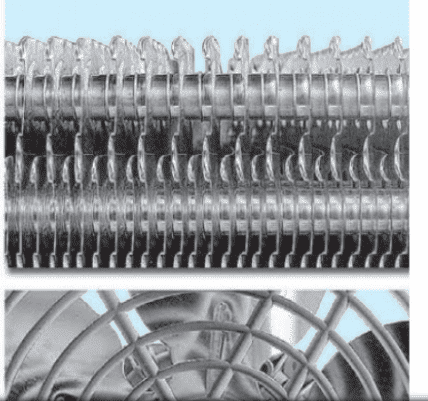

It features shell made of alloy of aluminium in one evaporator with different fin space. (4.5+9mm) with efficiency heat exchange rate.

Features:

• Slim Evaporator
• Model: EVS-290
• Capacity: 1.9kW
• Fan Voltage: 220V
• Defrost Power: 1.0kW
• Area of heat transfer: 7.7m²
• Heater Voltage : 220V
• Air Volume : 1230M³/h
• Air throw : 5m
• Pipe Volume : 1.61 dM³
• Ceiling Mounted
• Magnesium non corrosive body
• Electric Defrost
