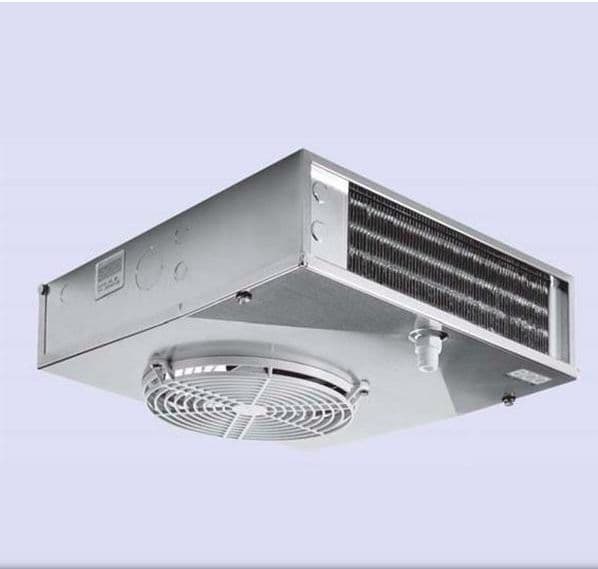

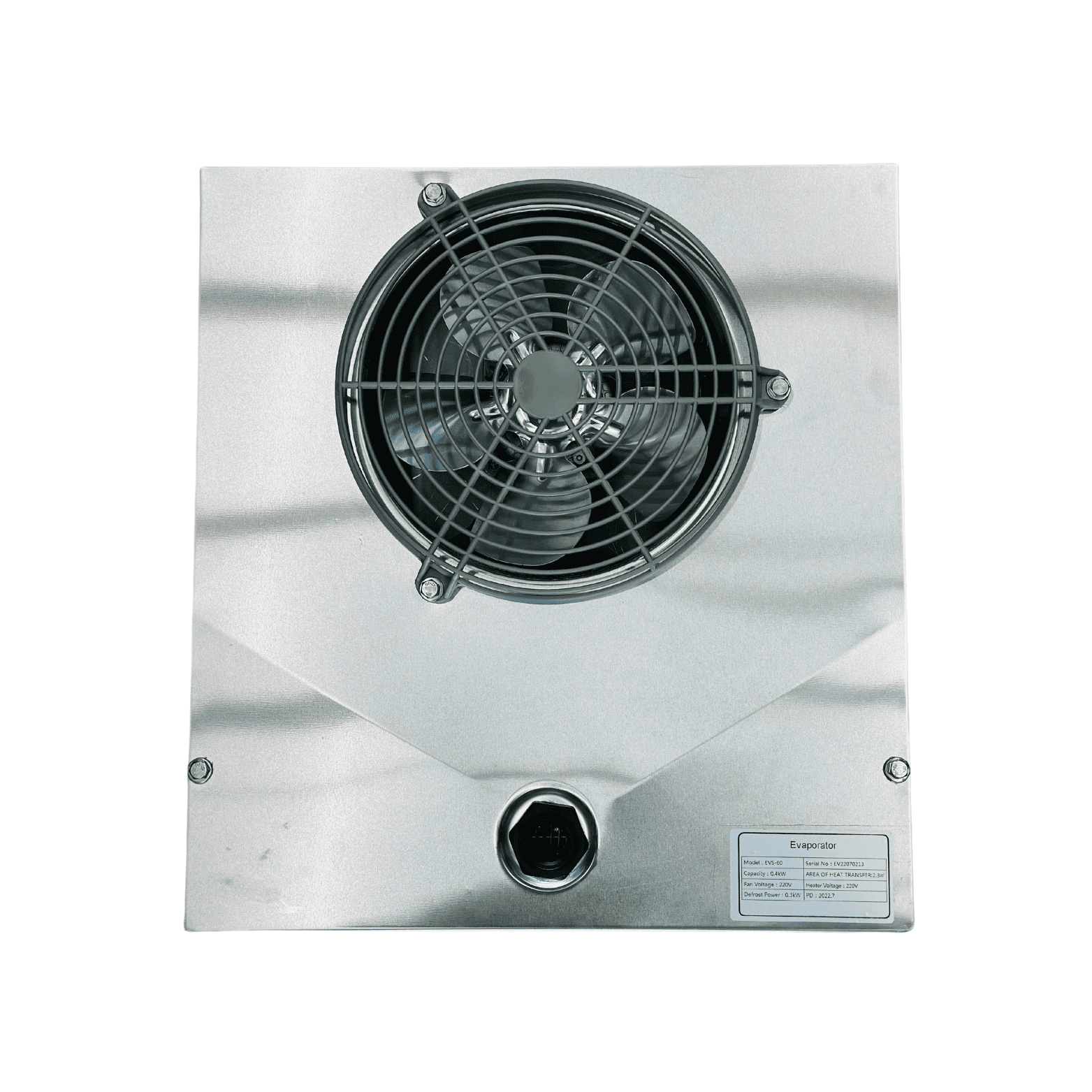

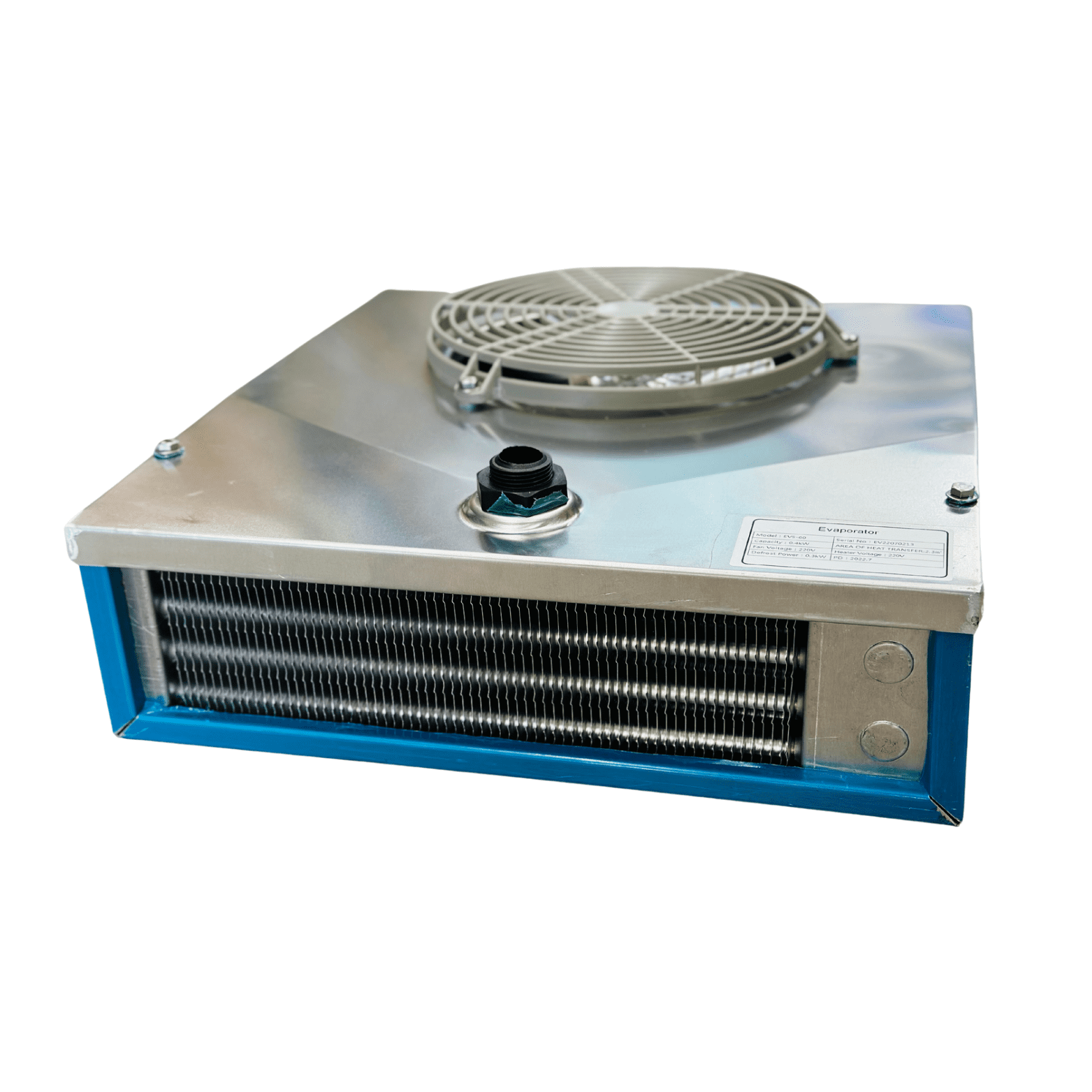

Evaporator 400W Slim Single fan EVS 60 Slim Panel

Evaporator 400W Slim Single fan EVS 60 Slim Panel

Product Description

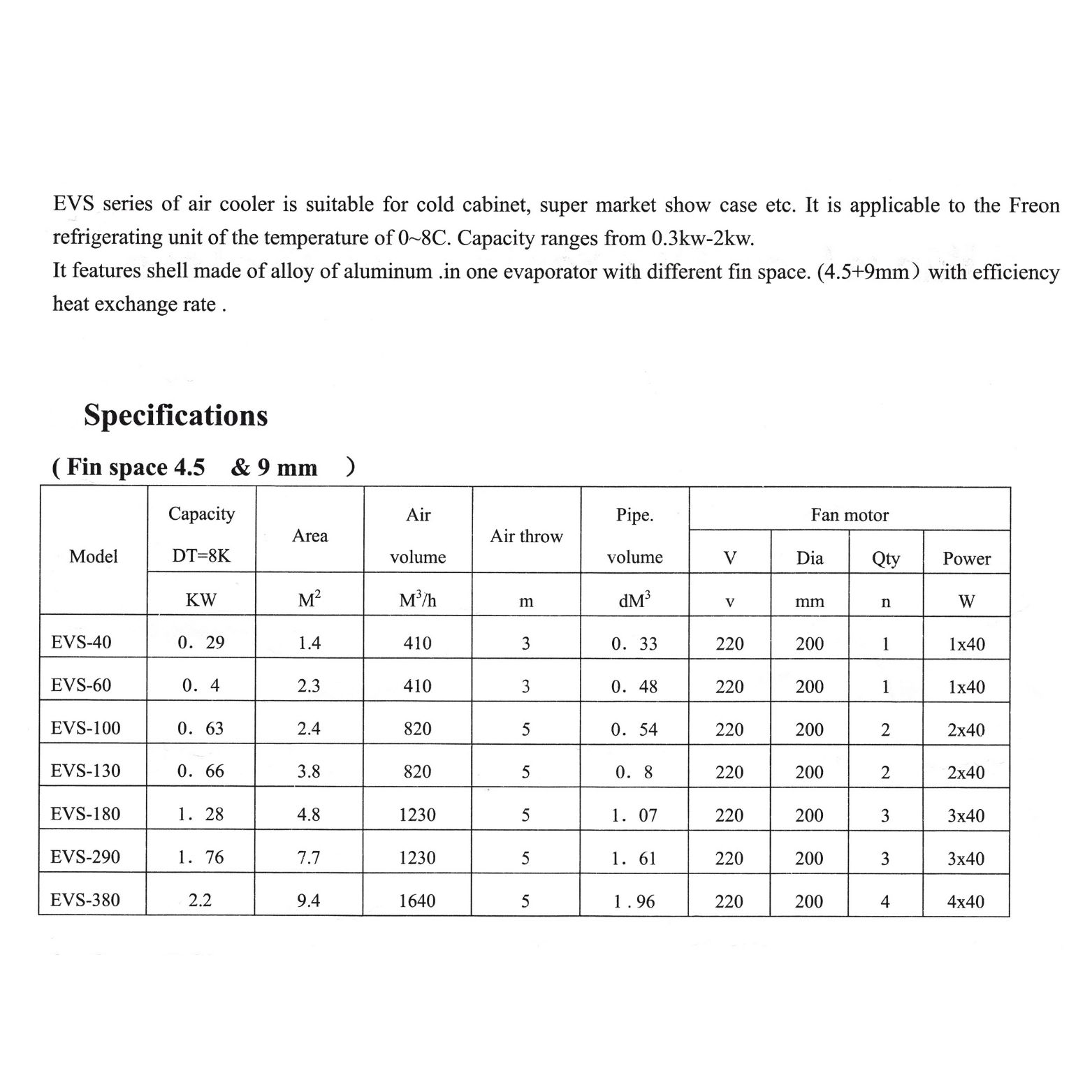

EVS series of air cooler is suitable for cold cabinet, super market show case etc. It is applicable to the Freon refrigerating unit of the temperature of 0~8C. Capacity ranges from 0.3kw-2kw.

It features shell made of alloy of aluminium in one evaporator with different fin space. (4.5+9mm) with efficiency heat exchange rate.

Features

• Slim Evaporator
• Model: EVS-60
• Capacity: 400W
• Fan Voltage: 220V
• Defrost Power: 0.3kW
• Area of heat transfer: 2.3m²
• Heater Voltage : 220V
• Air Volume : 410M³/h
• Air throw : 3m
• Pipe Volume : 0.48 dM³
• Ceiling Mounted
• Magnesium non corrosive body
• Electric Defrost
