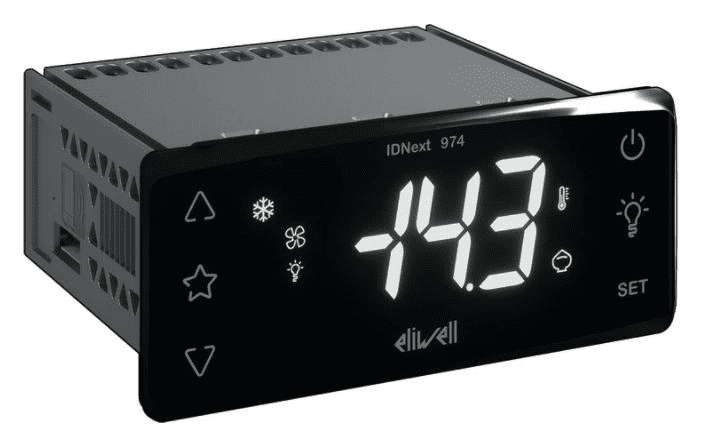

Eliwell IDNEXT 974 P DIGITAL CONTROLLER

Part Number

IDN974PED507000

Operating Temperature

-5...55°C

Storage Temperature

-3085°C

Ambient Humidity

1090% RH (non-condensing)

Power Supply

230Vac

Power Consumption

5,5 VA

Display Range

-99,9+99,9 °C
-999+999 °C

N. Analogue Inputs

2

Analogue Inputs

2x PTC or NTC or Pt1000

N. Digital Inputs

1

Digital Inputs

1x SELV

N. Digital Outputs

3

Digital Outputs

1x SPST 2Hp 12(8)A 230Vac
1x SPDT 0,5Hp 8(4)A 230Vac
1x SPST 5(2)A 230Vac

Display

LED 3 digits + sign

Resolution ( 0.1°C with decimal point )

0,1°C

Measurement Range

NTC: -50,0+110,0 °C
PTC: -55,0+140,0 °C
Pt1000: -55,0...+150,0 °C

Accuracy

NTC: better than 0,5% of full scale + 1 digit
PTC: better than 0,5% of full scale + 1 digit
Pt1000 [-55,0+70,0°C]: better than 0,5% of full scale + 1 digit
Pt1000 [+70,0+150,0°C]: better than 1% of full scale + 1 digit

Connectivity

TTL port for connection to Unicard or TelevisSystemModBus monitoring device

N. Serial Ports

1

Serial Ports

1x TTL

Installation

panel, 71x29mm

Accessories

Unicard USB/TTL
Dongle BTLE/TTL

Functions

Easy Map, Real Time Clock

Weight (g) Net

185

Width (L) Net

81mm

Height (Ht) Net

35mm

Depth (P) Net

60mm

Weight (g) Packaging

230

Width (L) Packaging

130mm

Height (Ht) Packaging

90mm

Depth (P) Packaging

50mm
