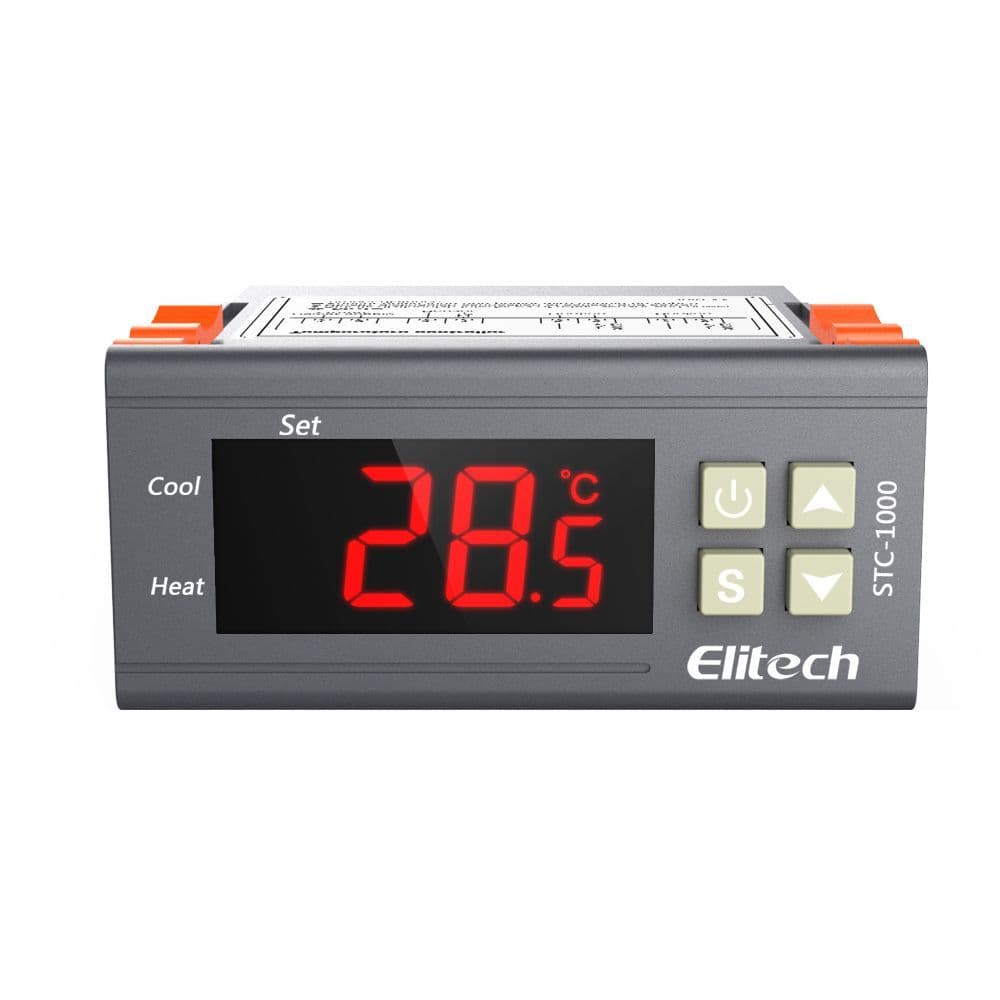

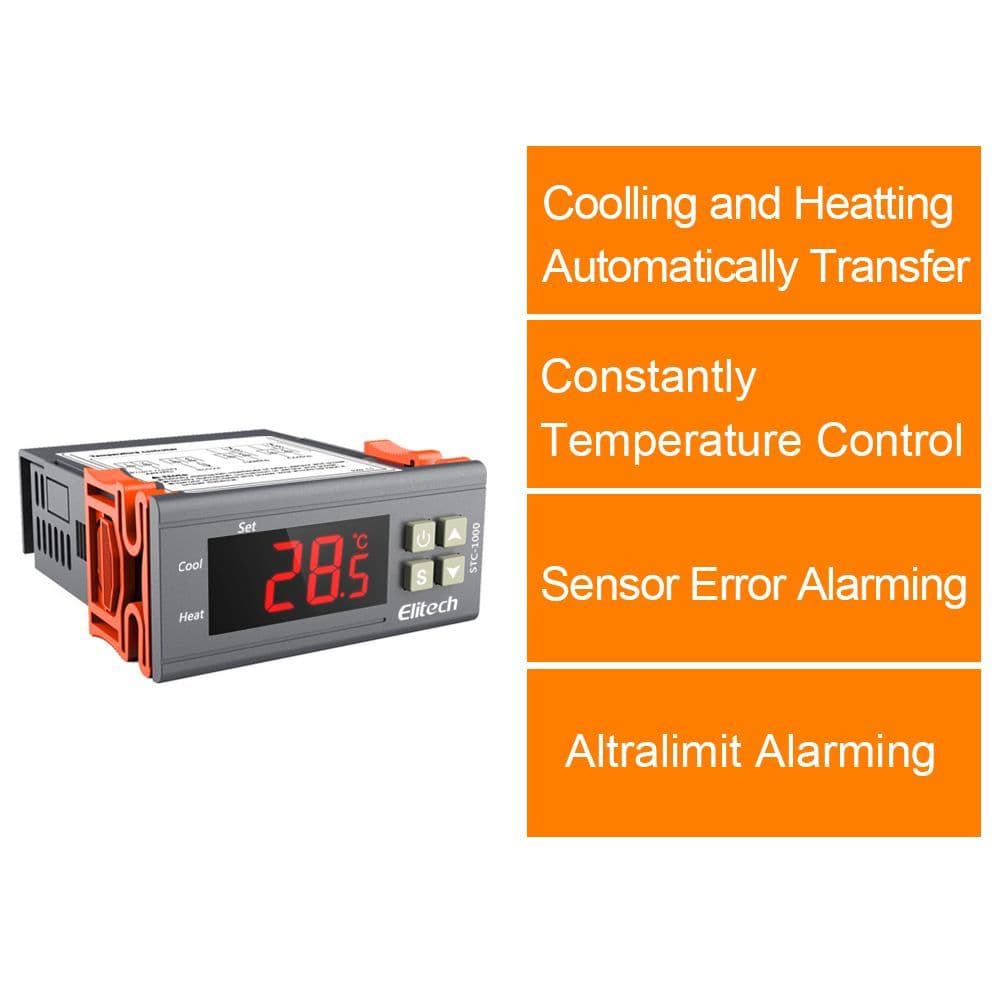

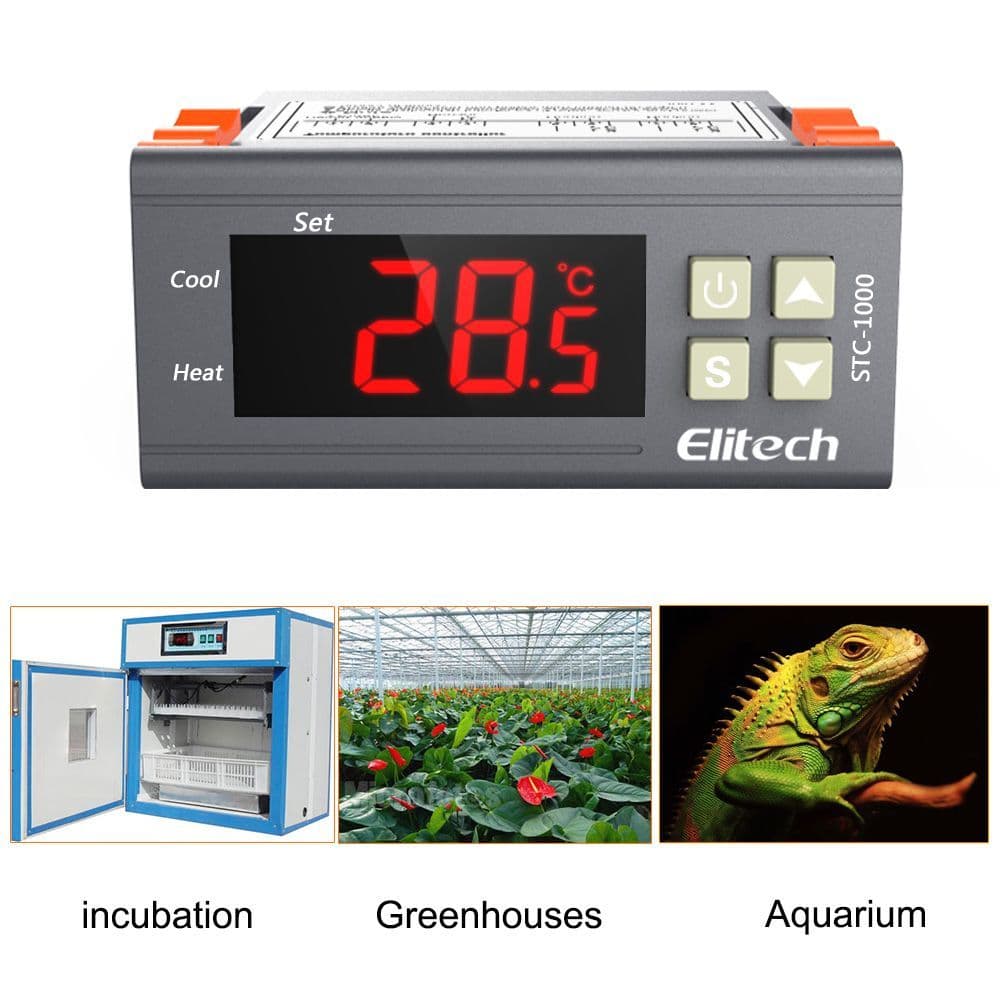

Elitech(UK) Digital STC-1000 Thermostat Temperature Controller main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.
Technical Parameters:
1. Temperature measuring range: -50~99;
2. Resolution: 0.1;
3. Accuracy: ±1 (-50~70);
4. Sensor error delay: 1 minute
5. Power supply: 230 VAC±10%, 50/60Hz;
6. Power consumption: less than 3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60;
10. Storage temperature: -30~75;
11. Relative humidity: 20%~85% (No condensate).

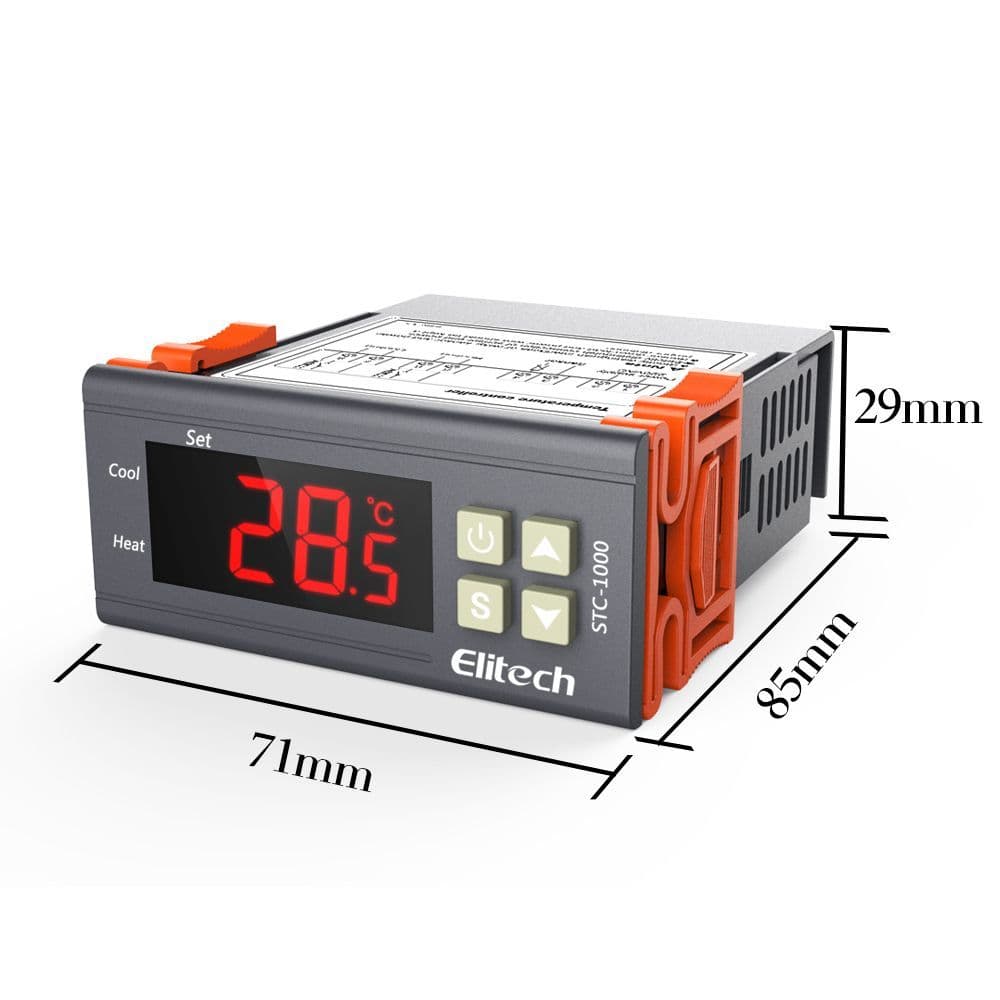

Specification and Size:
1.Front panel size 75(L)×34.5(W)mm;
2.Mounting size:71(L)×29(W)mm;
3.Product size 75(L)×34.5(W)×85(D)mm;
4.sensor length 2 m included.
5.Measure range: -50+99
6.Mounting size: 71*29 mm
7.Auto switch between refrigerating and heating
8. Return difference value
Technical Parameters:
1. Temperature measuring range: -50~99;
2. Resolution: 0.1;
3. Accuracy: ±1 (-50~70);
4. Sensor error delay: 1 minute
5. Power supply: 230 VAC±10%, 50/60Hz;
6. Power consumption: less than 3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60;
10. Storage temperature: -30~75;
11. Relative humidity: 20%~85% (No condensate).
Specification and Size:
1.Front panel size 75(L)×34.5(W)mm;
2.Mounting size:71(L)×29(W)mm;
3.Product size 75(L)×34.5(W)×85(D)mm;
4.sensor length 2 m included.
5.Measure range: -50+99
6.Mounting size: 71*29 mm
7.Auto switch between refrigerating and heating
8. Return difference value
Customer reviews
-
Brand:Elitech
-
Product Code:Elitech STC-1000
-
Weight:0.95kg
