ELITECH MANUFACTURE SALE ALL-PURPOSE AQUARIUM TEMPERATURE CONTROLLER E-1000
Application:
The Digital Temperature Controller is STC-1000 upgrade product,smart "super-easy" series temperature controller, and it is used for the temperature control which needs cooling and heating switch automatically.
Features
1. Three way control output: Refrigeration, defrost and Lighting.
2. Suitable for temperature control of the middle and low temperature cold storage or heating equipment.
3. Six touch key design, quick parameter setting, easy operation.
4. It could measure,display and control temperature, with the function of temperature calibration, and temperature over temperature alarm and sensor failure alarm.
5. one key recovery of the factory default value, support parameters preset
6. It adopts touch key design wit the key lock function
Parameters:
1) Measuring range-4099
2) Controlling range-4085
3) Accuracy-3050±1±0.5; others, ±2±0.5
4) Resolution0.1 / 1

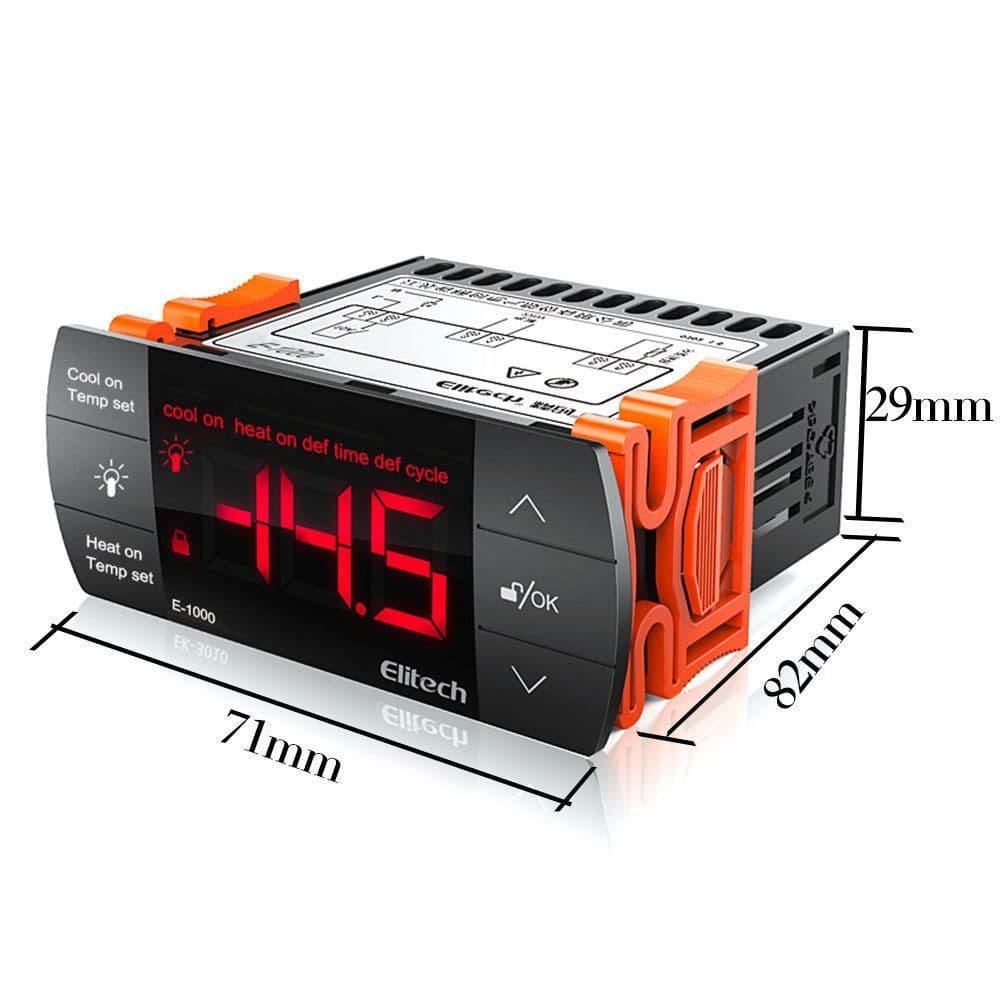

5) Mounting size: 71mm*29mm
6) Power supply: 220±10%(VAC), 50/60Hz
7) Power consumption 5W
8) Work ambient temperature-555work ambient humidity10%90% non condensing
9) Storage temperature-2585
10) Senor type: NTC10K/25B value 3435K
11) Sensor length: 2M
Application:
The Digital Temperature Controller is STC-1000 upgrade product,smart "super-easy" series temperature controller, and it is used for the temperature control which needs cooling and heating switch automatically.
Features
1. Three way control output: Refrigeration, defrost and Lighting.
2. Suitable for temperature control of the middle and low temperature cold storage or heating equipment.
3. Six touch key design, quick parameter setting, easy operation.
4. It could measure,display and control temperature, with the function of temperature calibration, and temperature over temperature alarm and sensor failure alarm.
5. one key recovery of the factory default value, support parameters preset
6. It adopts touch key design wit the key lock function
Parameters:
1) Measuring range-4099
2) Controlling range-4085
3) Accuracy-3050±1±0.5; others, ±2±0.5
4) Resolution0.1 / 1
5) Mounting size: 71mm*29mm
6) Power supply: 220±10%(VAC), 50/60Hz
7) Power consumption 5W
8) Work ambient temperature-555work ambient humidity10%90% non condensing
9) Storage temperature-2585
10) Senor type: NTC10K/25B value 3435K
11) Sensor length: 2M
Customer reviews
-
Brand:Elitech
-
Product Code:Elitech E-1000
-
Weight:0.75kg
