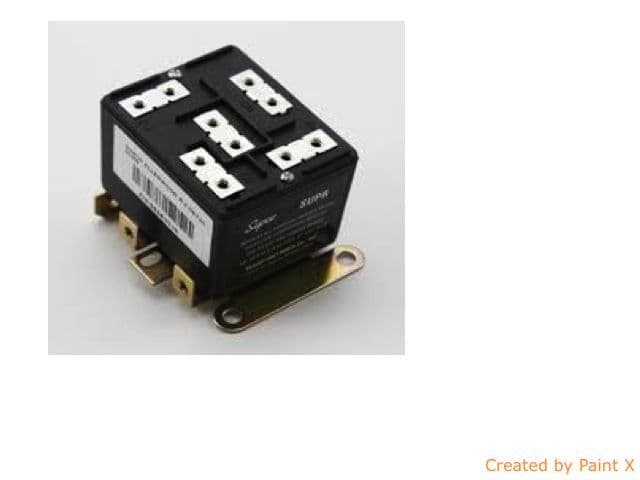

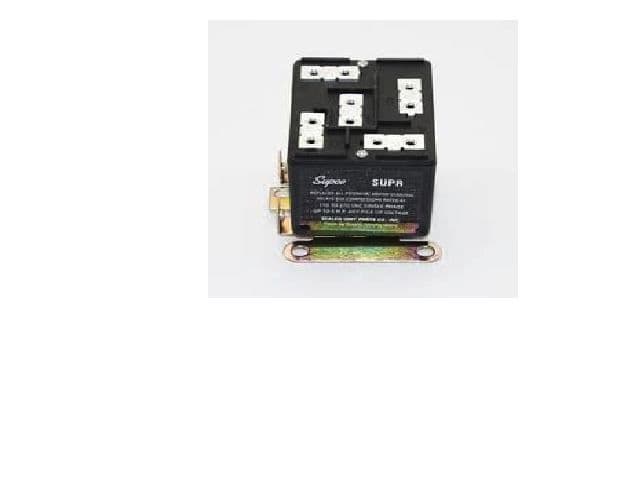

Universal Potential Relay Wire To Wire Replacement 30 Amp Contacts
Features/Benefits
Electronic potential relay (EPR) technology
Motor power rating up to 5 hp
Start winding protection if motor does not start
Time function relay
Instant restart
Safety time out 1.0 - 1.5 seconds
Non-positional
Normally closed 30 Amp contacts
UL® recognized
Non-positional mounting
Specifications:
Maximum Operating Temperature: 194°F / 90°C
Amperage: 30
Operating Voltage: 110-270 VAC
Application:
Wire to wire replacement for all 3 & 5 terminal potential relays
HVAC&R compressors & motors
Features/Benefits
Electronic potential relay (EPR) technology
Motor power rating up to 5 hp
Start winding protection if motor does not start
Time function relay
Instant restart
Safety time out 1.0 - 1.5 seconds
Non-positional
Normally closed 30 Amp contacts
UL® recognized
Non-positional mounting
Specifications:
Maximum Operating Temperature: 194°F / 90°C
Amperage: 30
Operating Voltage: 110-270 VAC
Application:
Wire to wire replacement for all 3 & 5 terminal potential relays
HVAC&R compressors & motors
Customer reviews
-
Brand:AirTech-UK
-
Product Code:UNIVERSAL POTENTIAL RELAY SUPR
-
Weight:0.5kg
