Trolley Wheel Eyebolt -1000 kg

B107 Trolley Wheel Eyebolt

Product Description

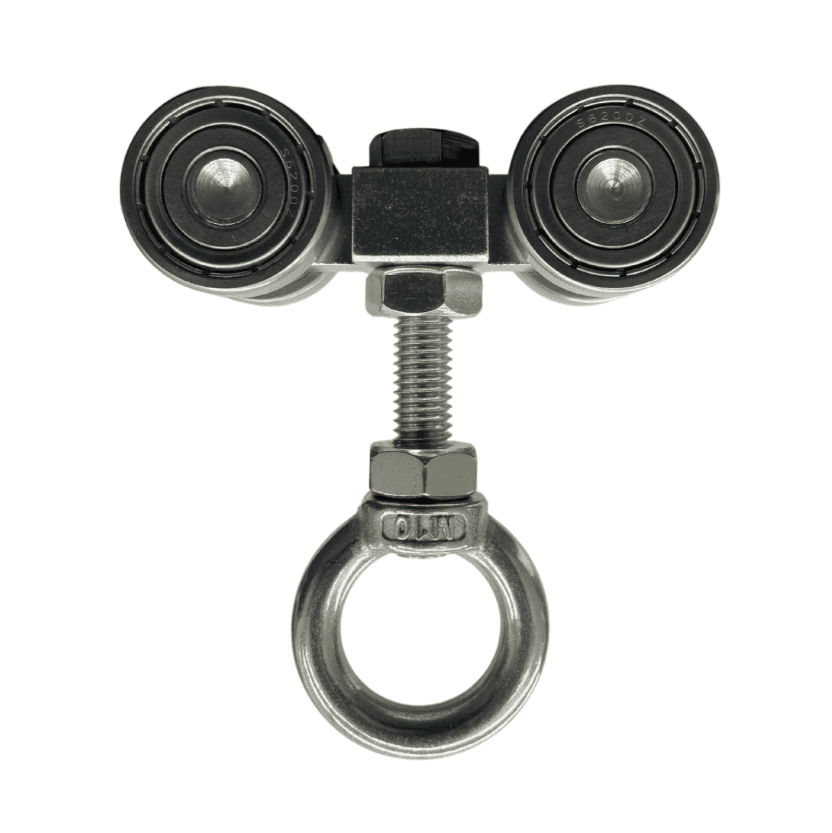

The Double Strut Trolley, 4 Wheels with Eyebolt is used to safely, smoothly and reliably move loads along strut channels.

• Load capacity of 1,000kg (2,200lbs)
• Compatible with standard 1-5/8" x 1-5/8" struts
• Made from Electrogalvanized Carbon Steel

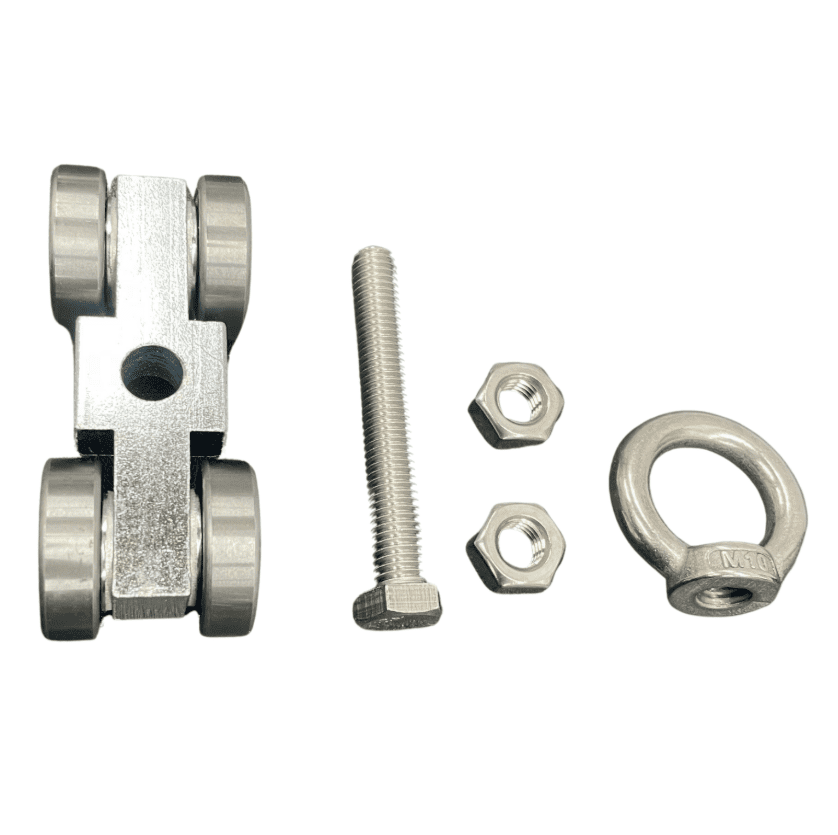

Includes

• 1x Trolley
• 1x Eyebolt Assembly - M10 (~3/8")
  • Hex bolt, eye nut, 2x regular nuts

Strut Channel Trolley – Heavy-Duty & Smooth Performance

• Unique Hidden-Bolt Design:

  • Bolt is securely positioned inside the fastening groove

  • Prevents interference with bolt heads

  • Ensures smooth, unobstructed travel within the channel

• Compatible Size:

  • Fits all 1-5/8 inch wide and 1-5/8 inch or taller strut channels

  • Central M10 (3/8 inch) bolt

  • Overall length: 97 mm (3.8 inches)

• High Load Capacity:

  • Load ratings:

    • 320 lbs at 600 RPM

    • 450 lbs at 300 RPM

    • 650 lbs at 100 RPM

  • Break strength: 5,511 lbs

• Durable Construction:

  • Made from hot-rolled carbon steel for impact resistance

  • Galvanized finish for rust protection

  • Firmly welded bearings and pins for added strength and longevity

• Smooth & Quiet Operation:

  • Equipped with standard deep groove ball bearings

  • Welded bearing positioning ensures stability and consistent performance

  • Operates silently and steadily under load
