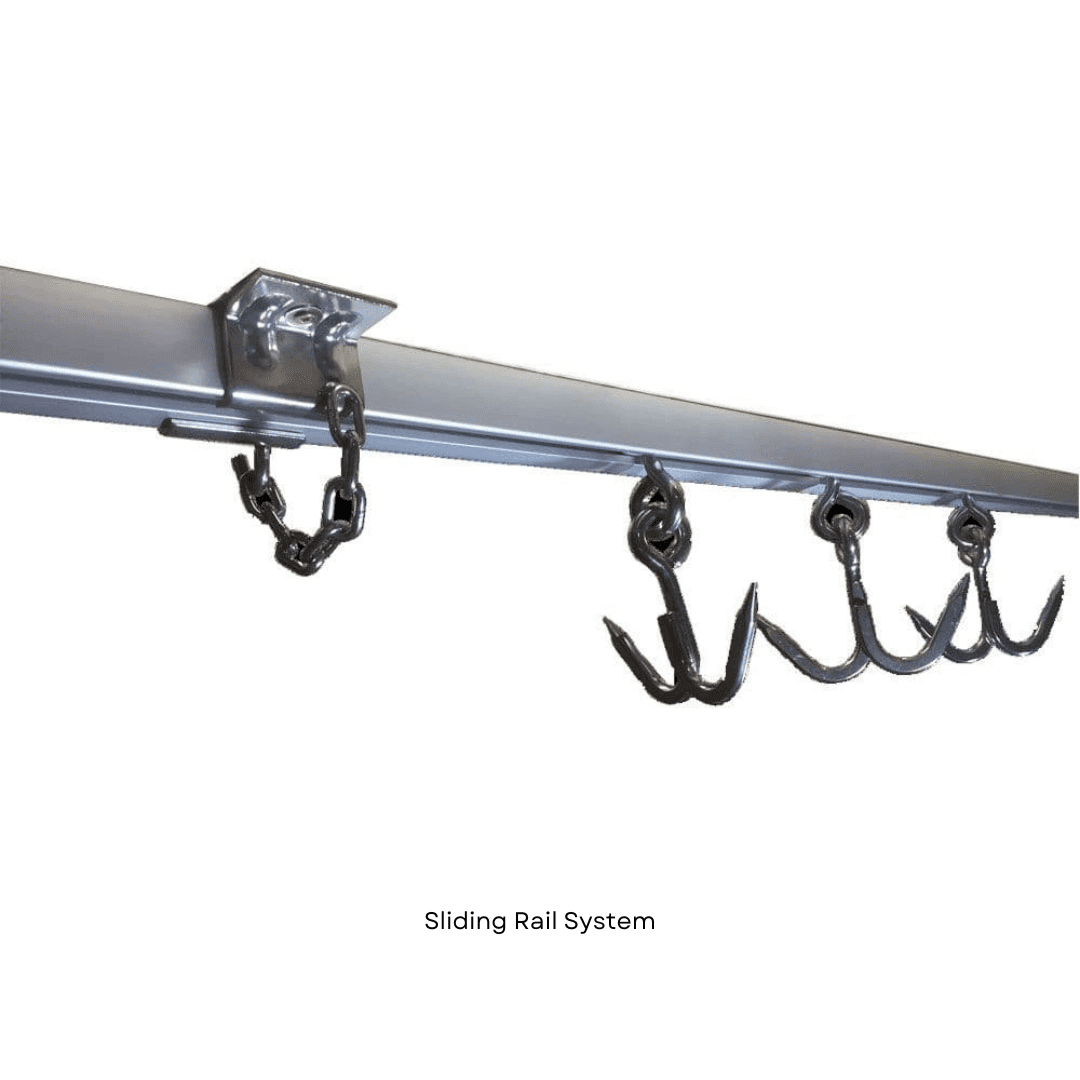

Sliding Meat Rail Hanging System- 1M, Double Hooks

Product Description

• The CRW Sliding Meat Rail Hanging System / Kit is the perfect modular, easy to install DIY solution for ceiling mounted meat hanging applications
• Ideal for meat processing, transfer from loading areas / kill rooms to walk in coolers, as well as storage in walk in coolers / cold rooms or refrigerated trailers (reefers)
• Perfect for all kinds of meat including beef, goat, lamb, deer, elk, etc. for butchers, hunters, and more
• Supports 180-220kg load (evenly distributed) per 2 Support Clamp Sets over a 32" section

Included in Kit

• Channel Rail
  • Anodized Aluminum
  • 5mm thick x 40mm height x 52mm width
  • 1M Rail

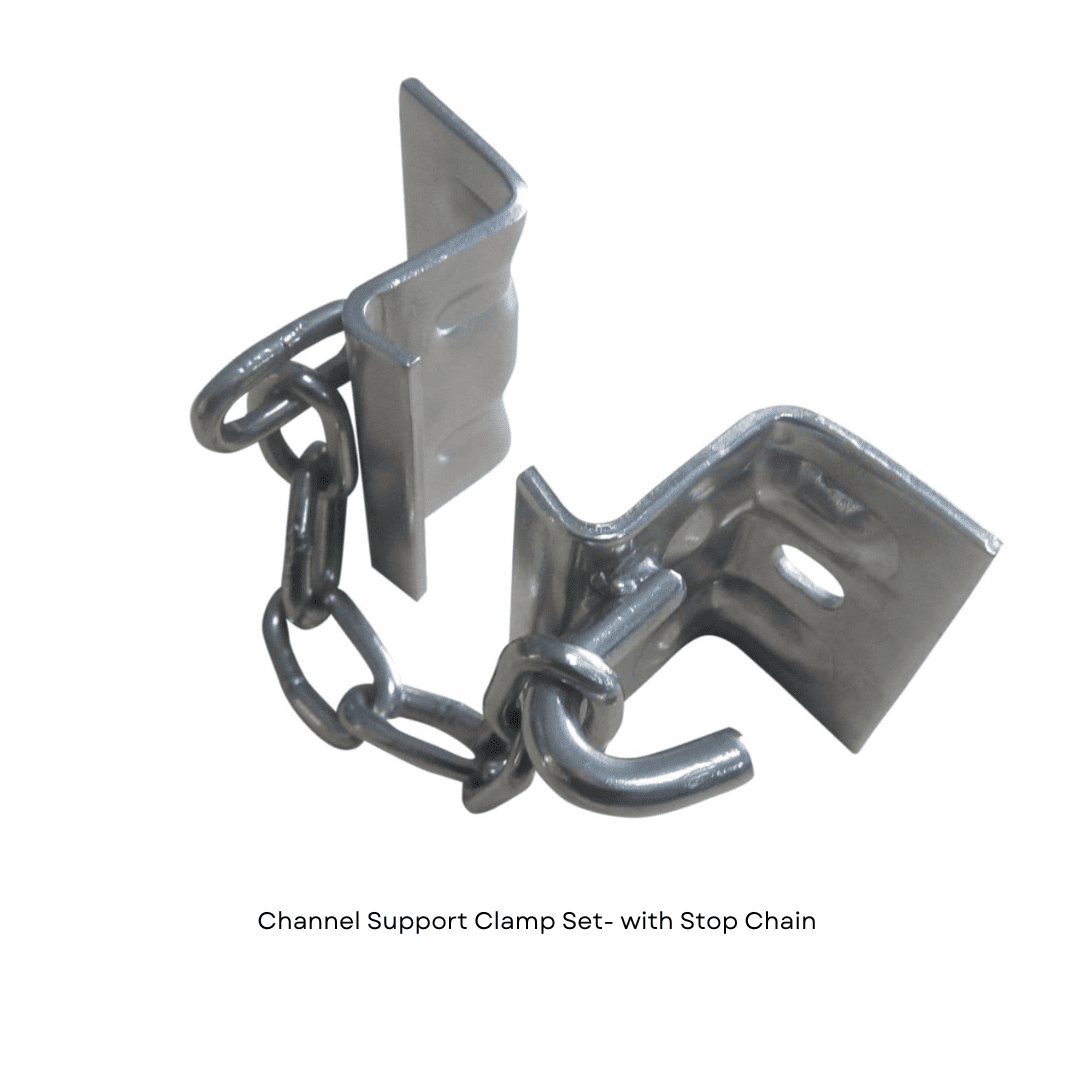

• CRW Channel Support Clamp Sets-with stop chain  (Stainless Steel)
  • 3 x  Supporting Clamps

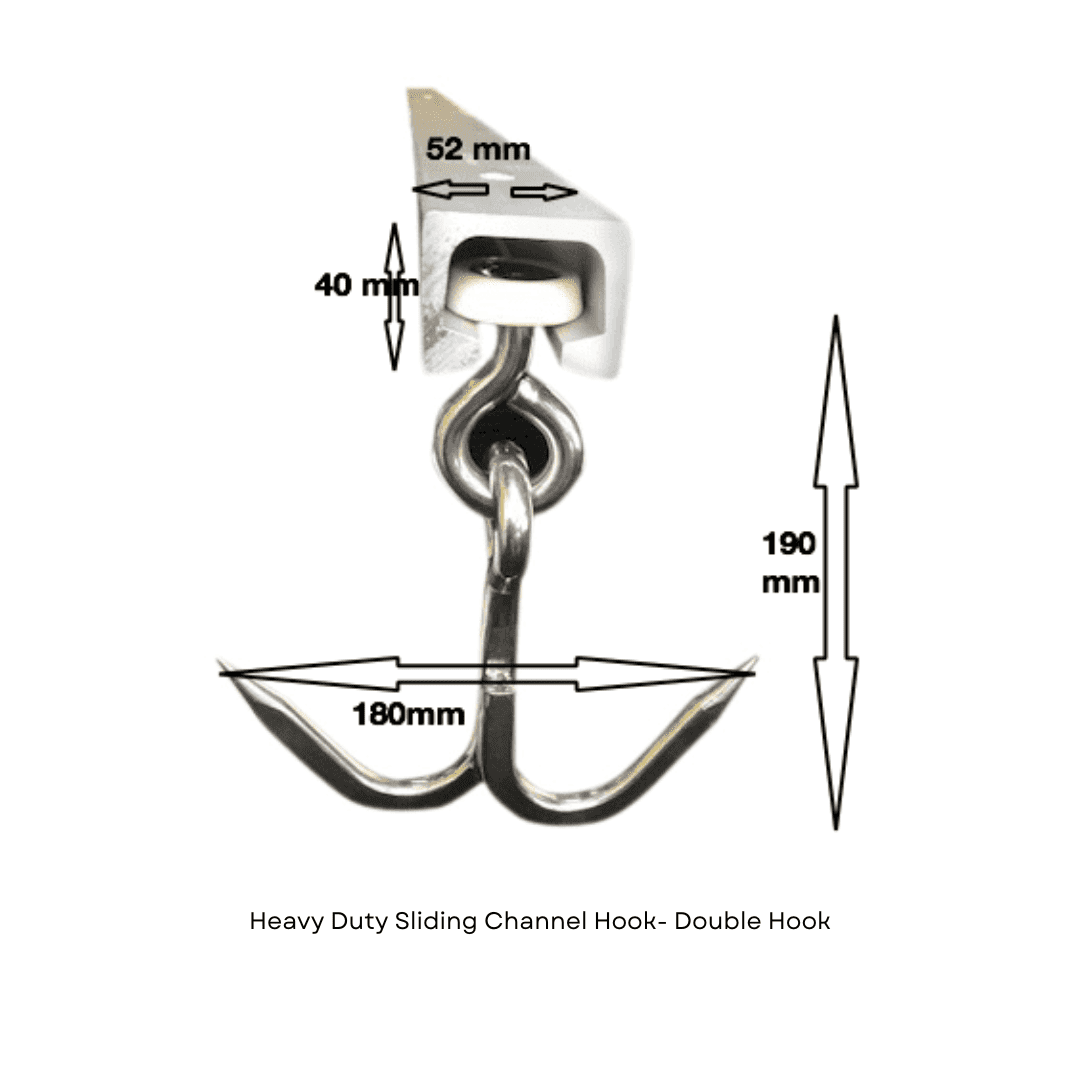

• CRW Double-Sided Meat Hanging W-Hooks (Stainless Steel)
  • 3 x  Double Hooks

Custom Design Support Services

• CRW's experts in walk in coolers, cold rooms, kill rooms and reefers are ready to support your design efforts for any custom kit / systems or requirements
• Design sketches and Bills Of Material provided as required

Additional Information

• Channel L and U-Bends also available, to allow rail system to turn, wraparound etc. Please see product page for more
• We offer 127 different lengths or combinations as required. Please call us at 0208 998 0033

Downloads

• Installation Guidance
