Inline Duct Extractor 4"/100mm Fan Silent Ventilation, CE/FCC Certified – Compact Exhaust Fan

4" Inline Duct Extractor Fan – 7500 RPM, 166 m³/h Airflow, Quiet Ventilation for Grow Tent, Hydroponics, Bathroom, Kitchen – 100~240V Compact Exhaust Fan

📝 Product Description:

The HR-100AE 4-Inch Inline Duct Fan is the ideal ventilation solution for grow tents, hydroponic systems, kitchens, bathrooms, and other enclosed spaces. With a compact design and powerful performance, this fan delivers 7500 RPM speed, 166 m³/h airflow, and 945 Pa pressure, all while operating quietly and efficiently.

Built with universal voltage compatibility (100–240V, 50/60Hz) and low power consumption (32W, max. 0.43A), the HR-100AE is perfect for domestic or commercial use. It’s CE and FCC compliant, tested to meet Class B EMC standards, and includes thermal overload protection.

Designed for easy DIY setup, the fan can be hook-mounted using a rope or bracket, and is compatible with standard Ø97 mm ducting. Installation is straightforward—just connect the ducts, attach the speed controller and power supply, and you’re ready to go.

Safety and maintenance instructions are clearly outlined in the included manual. The fan is not suitable for use with corrosive or explosive substances, and all electrical work must be performed by qualified personnel.

🔹 Key Features – Optimized Bullet Points:

• ✅ High-Speed Airflow: 7500 RPM motor provides 166 m³/h airflow and 945 Pa air pressure for effective air circulation.

• 🌬️ Low Noise & Energy Efficient: Quiet operation at just 32W power draw, suitable for continuous use in residential areas.

• 🔌 Plug & Play Setup: Compatible with 100–240V / 50-60Hz power systems, supports standard speed controllers.

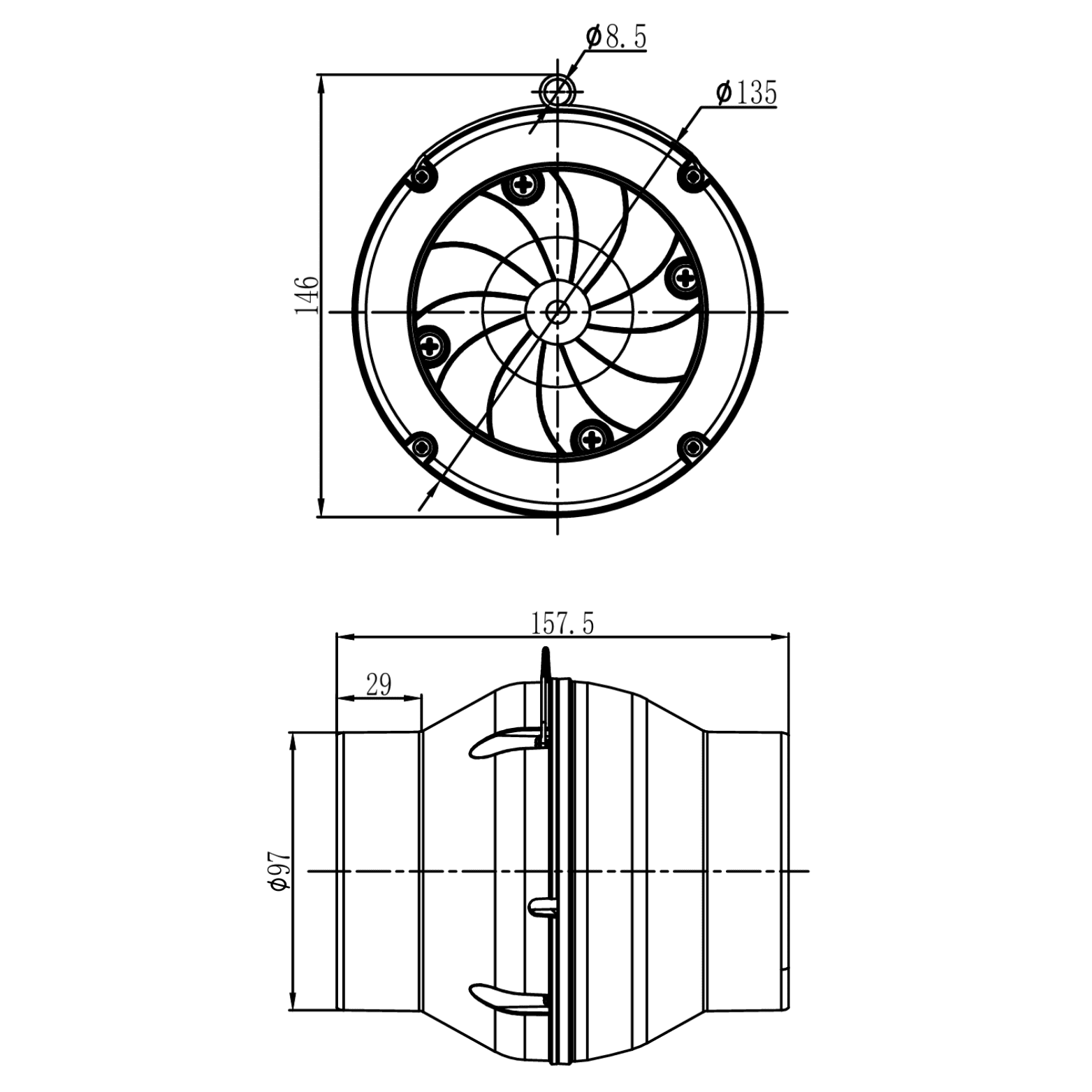

• 🔧 Quick Hook Installation: Lightweight 0.6 kg unit hangs easily using a rope or hook; duct connection size Ø97 mm, body diameter 135 mm, total length 157.5 mm.

• 🛡️ Certified & Safe: CE and FCC compliant with overload protection; safe for use in grow environments and household ventilation.

🛠️ Installation Instructions (Simplified for Listing Use):

• Hang using a strong hook or rope.

• Connect 4" ducting (Ø97 mm) securely.

• Plug in the speed controller if required and power supply. (Speed controller is not supplied.)

• Ensure fan turns in the correct direction before full operation.

• Keep fan free from debris and loose material before use.

⚠️ Important Safety & Compliance Notes (Incorporated from Manual):

• Must be installed by qualified personnel only.

• Do not use in explosive or corrosive environments.

• Keep unit away from children unless under supervision.

• Disconnect mains before cleaning or maintenance.

• Fan complies with CE, FCC Part 15 Class B, and 2014/30 EU EMC standards.

Key Specifications:

♻️ Eco Responsibility:

Recyclable according to EEC standards. Please dispose of packaging and electronic components in designated recycling points.
