FlowMax Elite 100mm Bathroom Shower Extractor Fan Kit – Complete Ventilation System

FlowMax Elite In-Line Extractor Fan Kit – Ultimate Ventilation Solution for Bathrooms & Wet Rooms

The FlowMax Elite is engineered to provide superior ventilation in areas prone to high moisture levels, such as bathrooms, kitchens, wet rooms, and utility spaces. This powerful and efficient system features a dual-speed motor, ensuring an optimal balance between energy efficiency and maximum airflow. The integrated timer, sleek LED light, and vent combo offer both style and function, making it the perfect all-in-one solution for managing moisture, odors, and pollutants in your home.

Key Features:

• Dual-Speed Motor: Choose between high power for rapid moisture removal or energy-efficient operation, ideal for bathrooms with high condensation or power showers.

• Whisper-Quiet Performance: Operating at just 34 dB(A) at 3 meters, this fan ensures a quiet, comfortable environment.

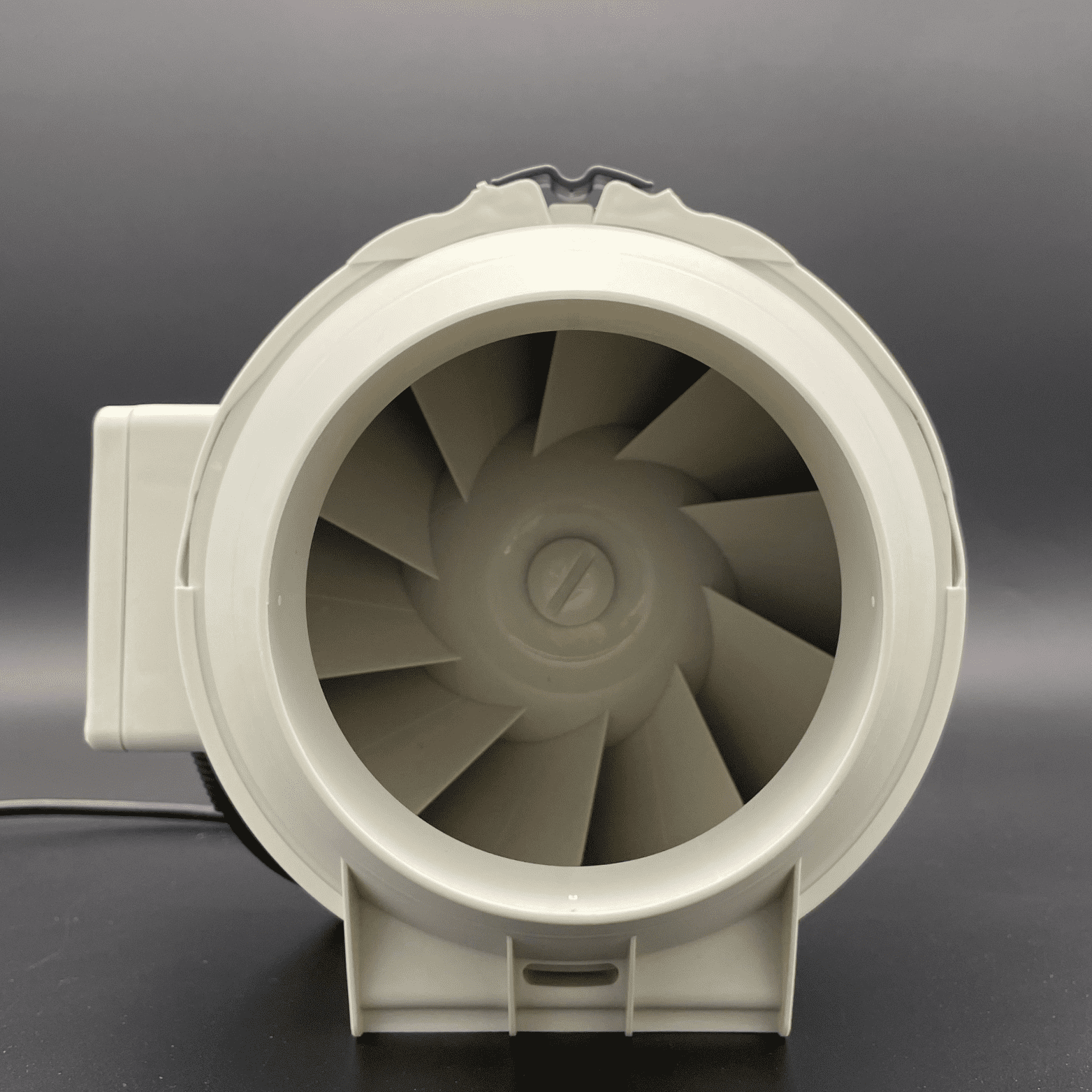

• High-Pressure Mixed Flow Impeller: Provides up to 198/165 m³/h of airflow, effectively clearing damp air from your space.

• Built-In Timer: Set the fan to automatically turn off after a predetermined time, adding convenience to your ventilation system.

• Sleek LED Light & Vent Combo: Modern design that adds a stylish touch to your bathroom while delivering effective air extraction.

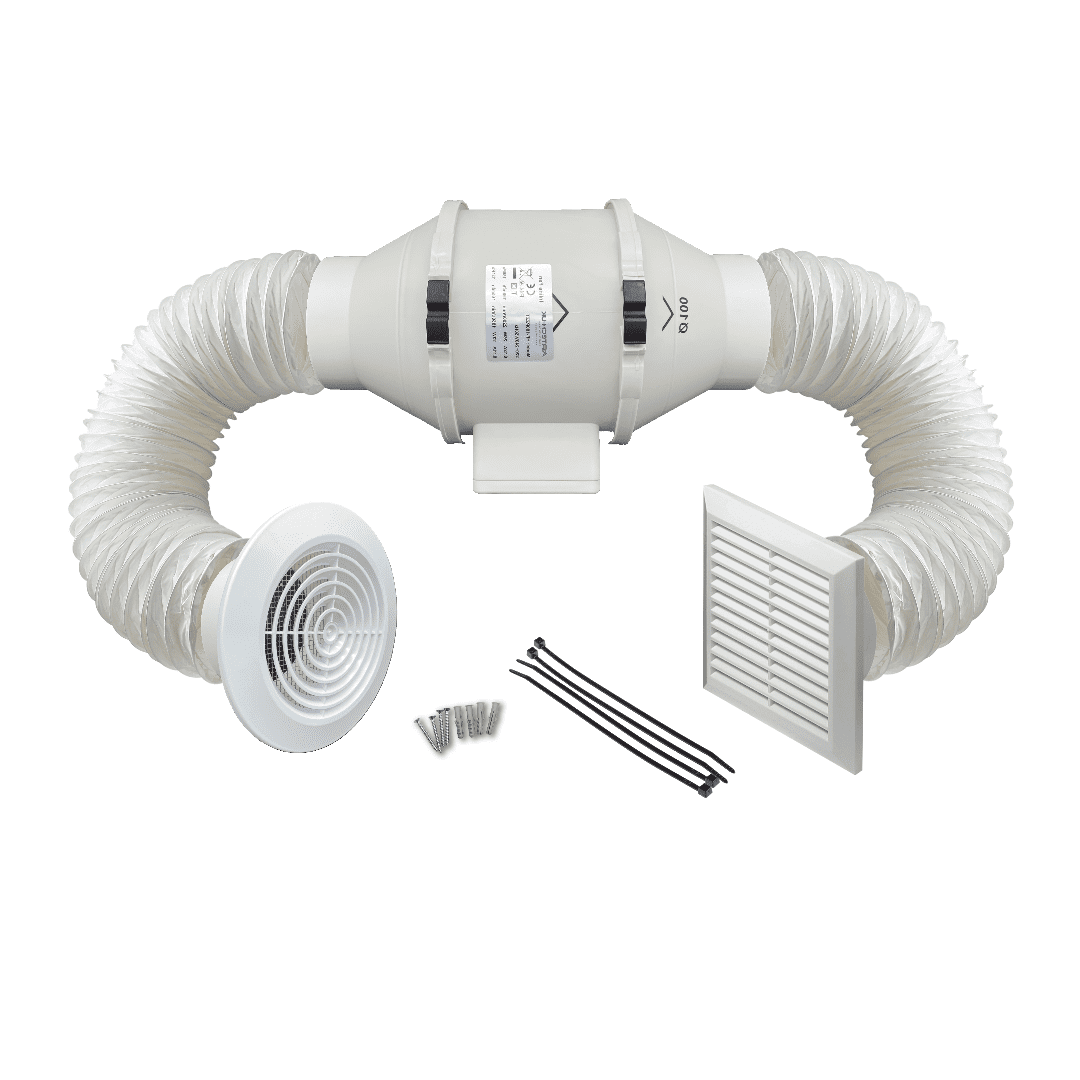

• Complete Ventilation Kit: Includes everything you need for a full installation—ducting, external wall grille, and ceiling-mounted diffuser.

Features:

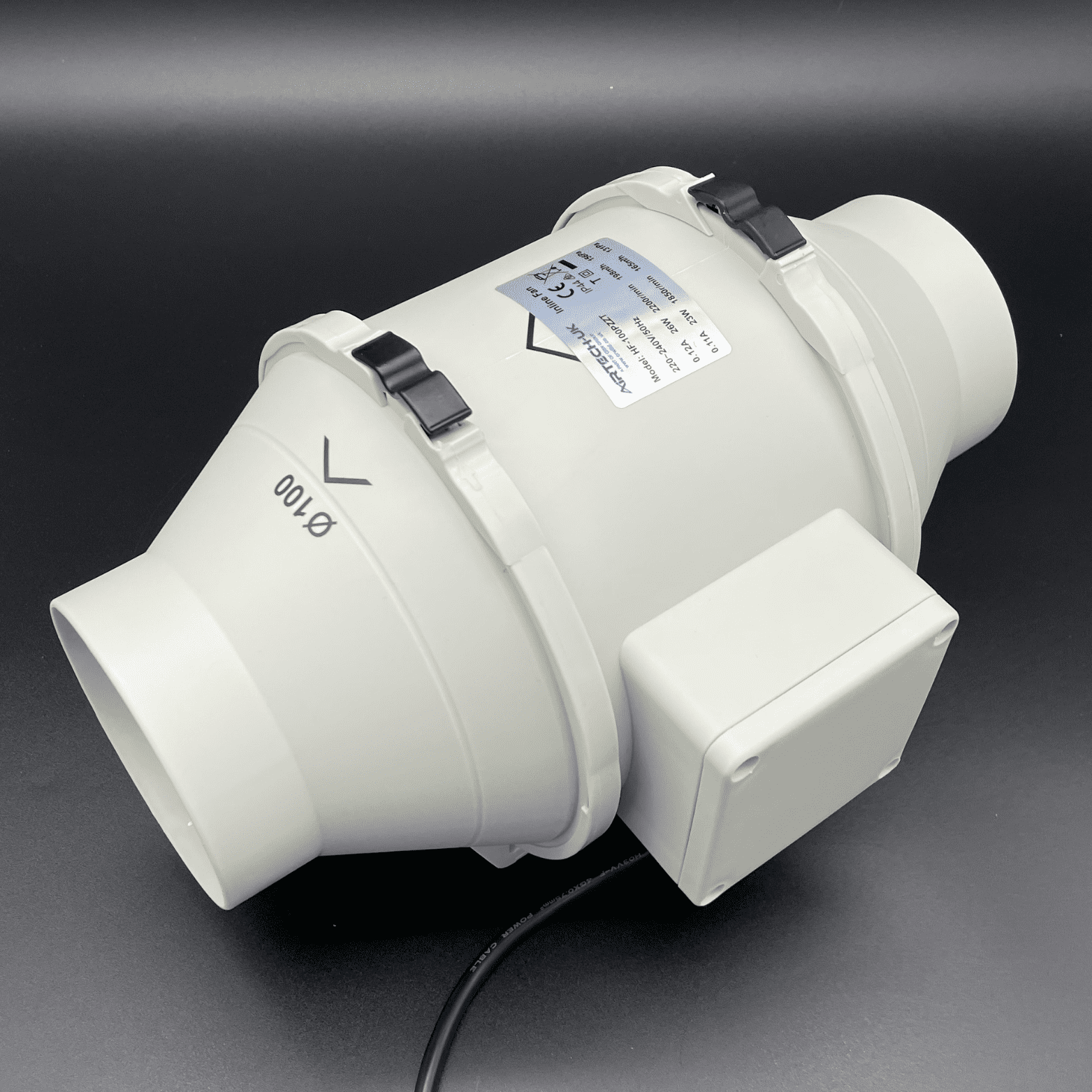

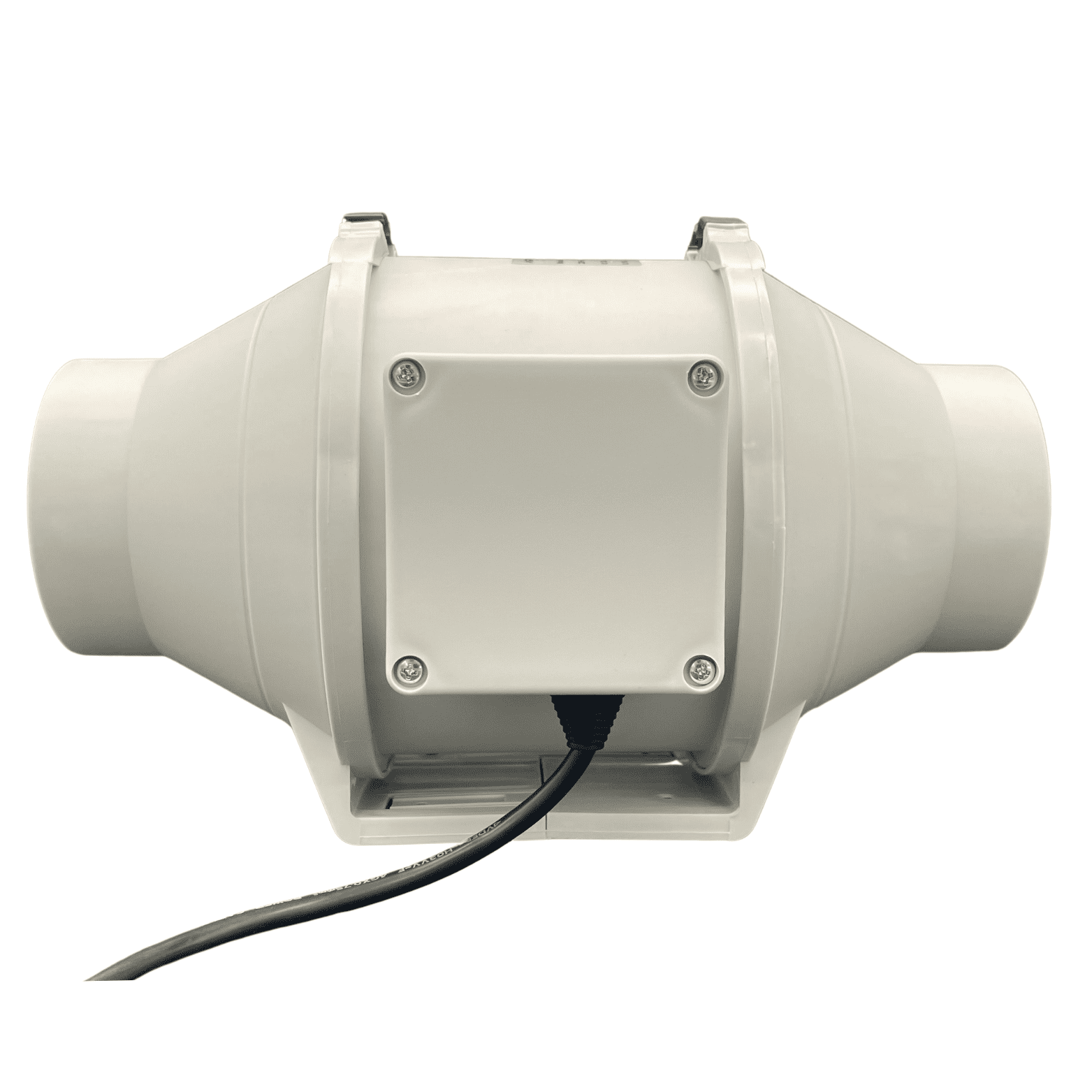

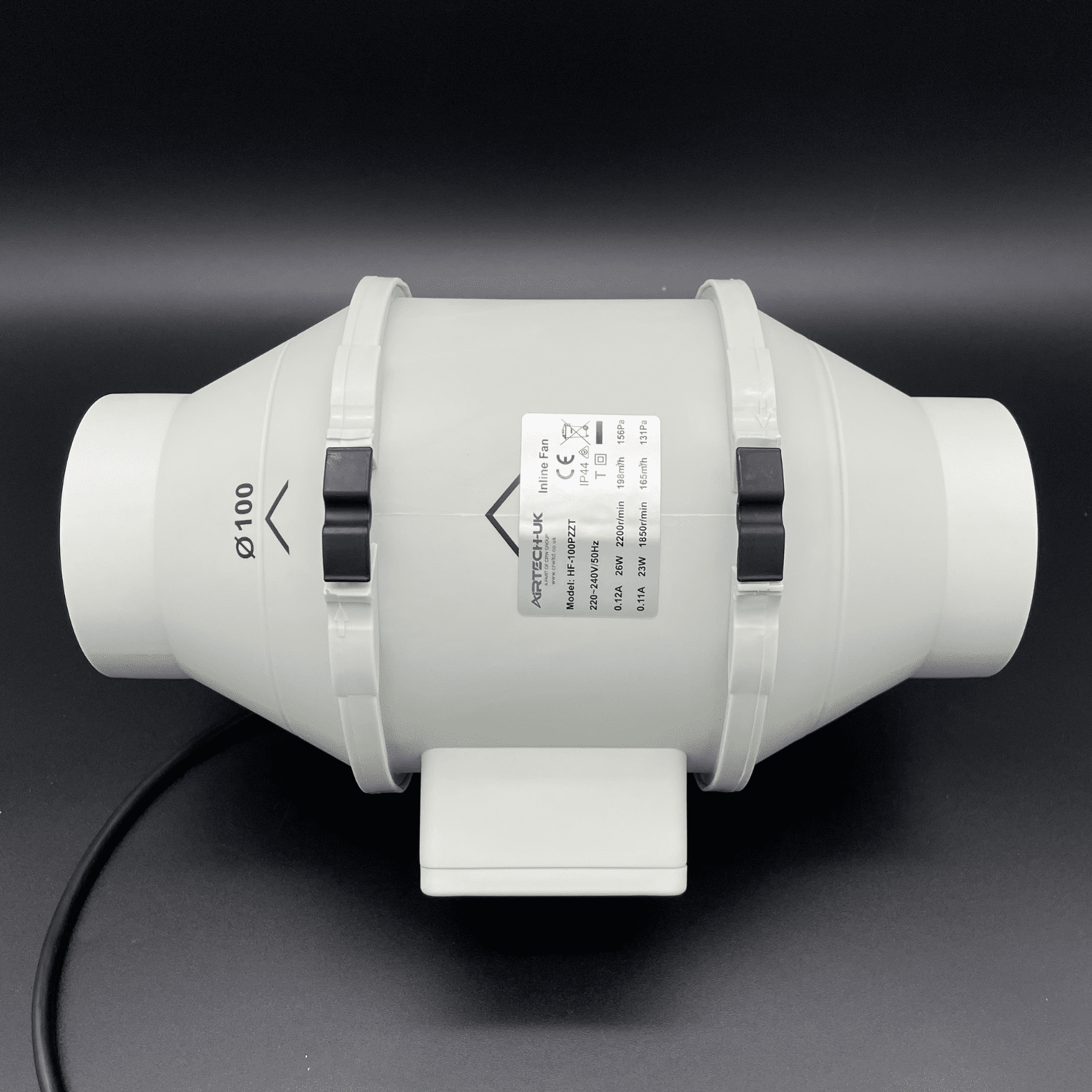

• Inline extractor  fans are suitable for removing damp moist air, odours and airborne pollutants from bathrooms, en-suites, shower rooms, utilities, Quiet and powerful mixed flow fan with Noise level: 34 dB
• Voltage: 220V/50Hz
• Pressure: 156/131 Pa
• Power: 26/23 W
• Airflow: 198/165m3/h
• IP Rating: IP44
• Remote mounting in lofts or cupboards
• Weight: 1.5kg

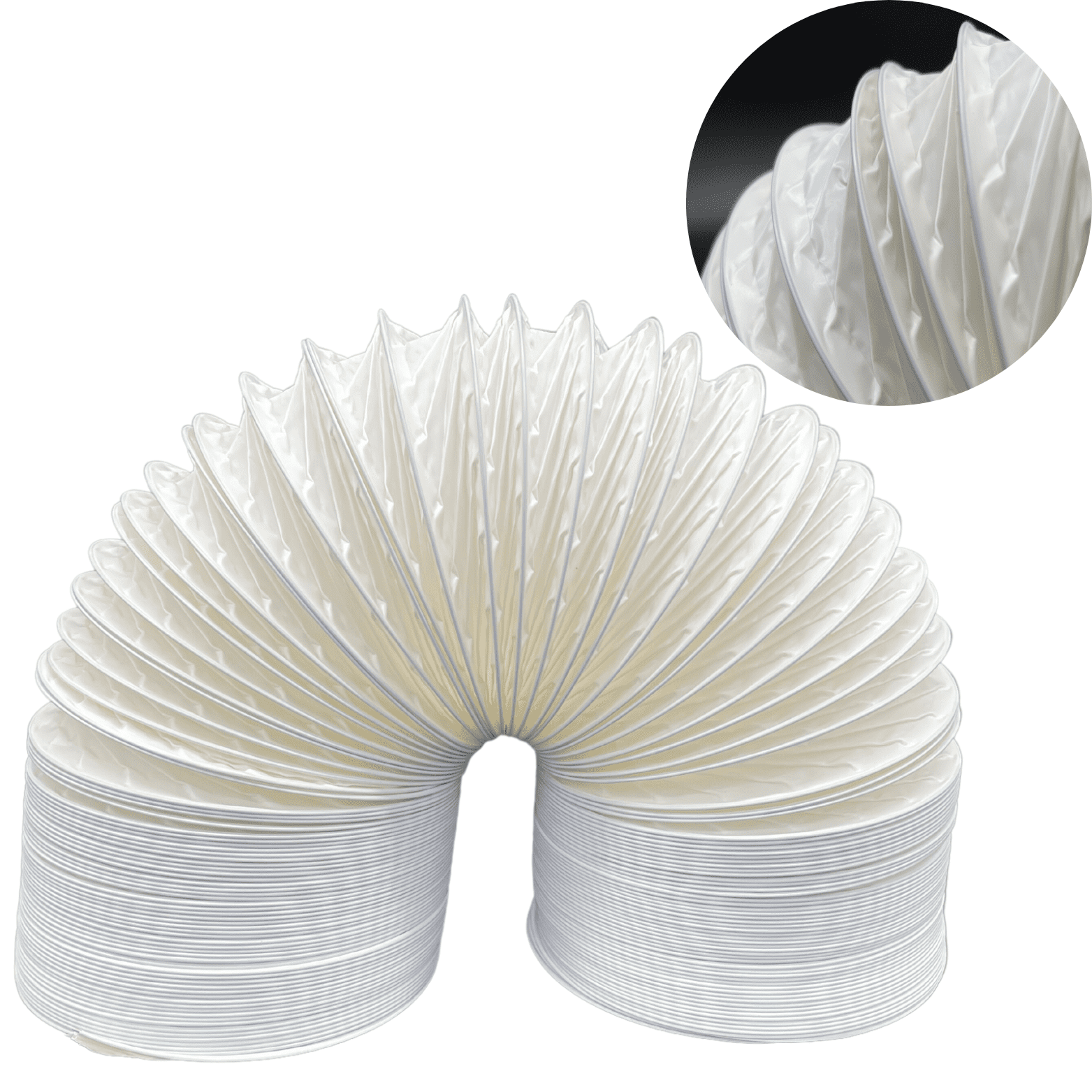

Duct:

• High quality aluminium heavy duty flexible ducting.

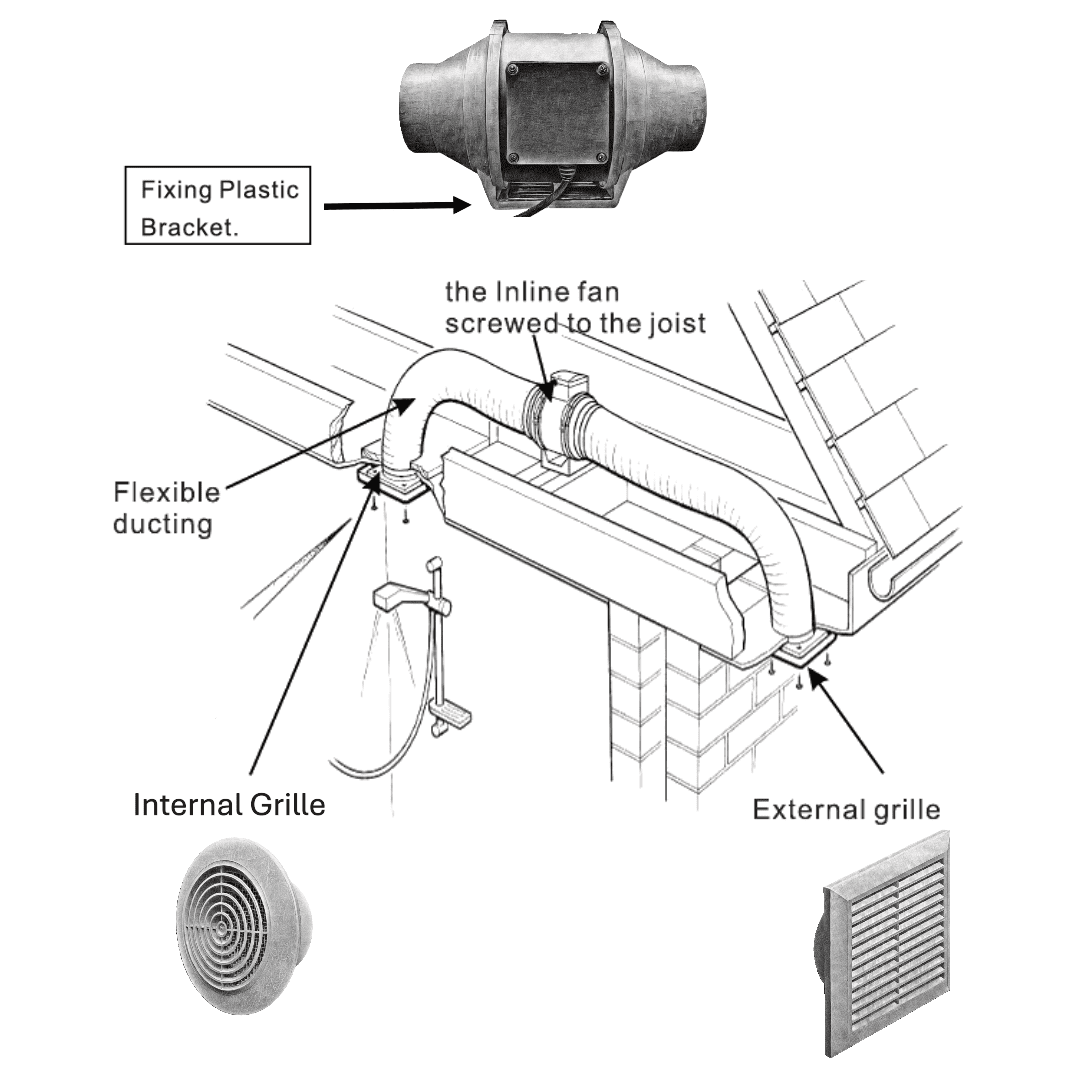

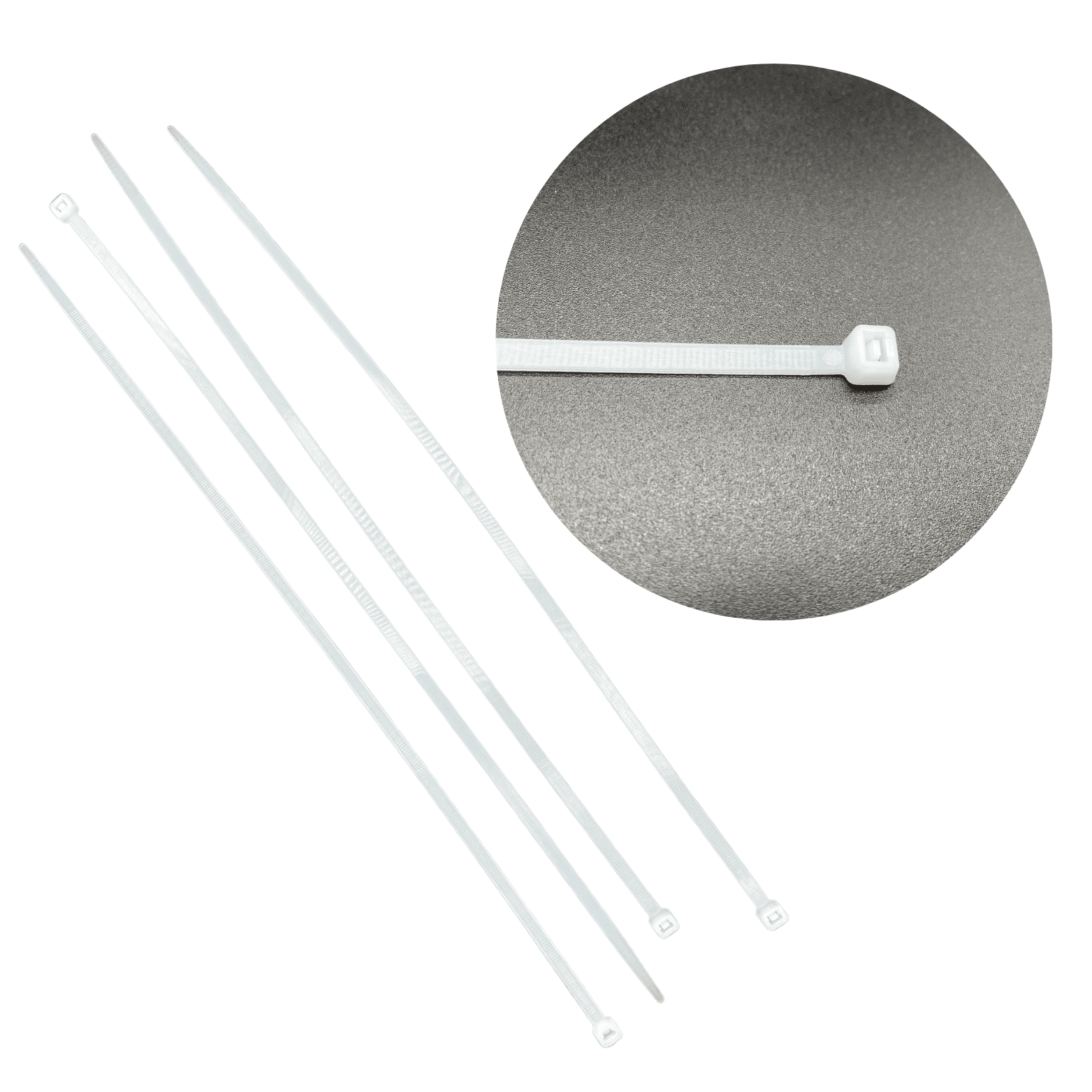

• Fits over the internal ceiling mounted vent, Duct extractor fan and external wall grille. Then secured using the circular clips provided.

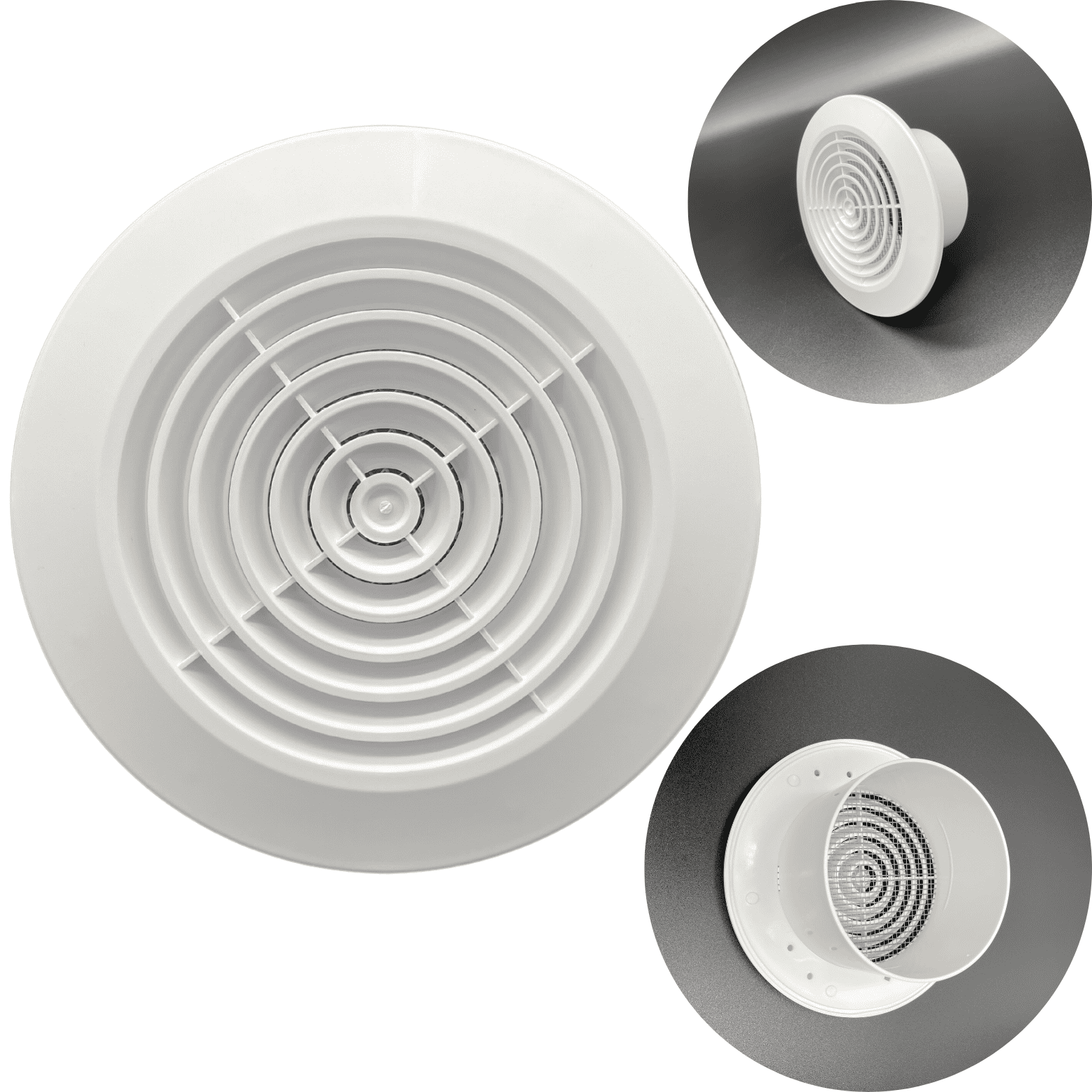

Internal Ceiling Vent Diffuser:

• Easy to retrofit ceiling mounted diffuser vent.
• Supplied white bezel.
• Mini multi cone construction to reduce drafts and cold spots.

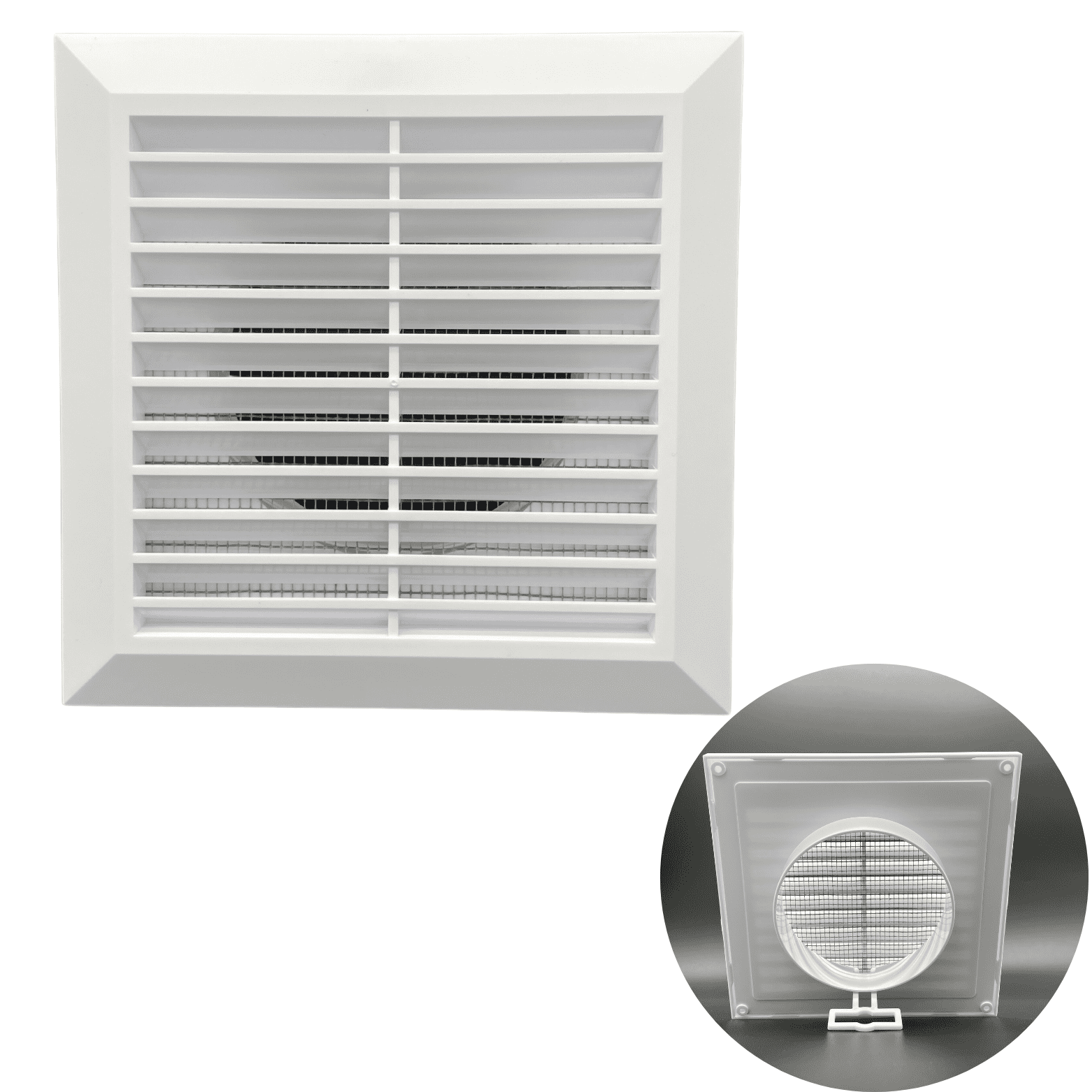

External Wall Vent:

• A fixed blade, louvered wall vent with removable core for easy cleaning.
• Fitted with an insect mesh.
• Finished in white.

Download the full specification sheet here for detailed technical information and installation guidance.
