Fan Speed Controller 2000W BRT-784

Fan Speed Controller  2000w

Features:

It is a high power speed controller which has a built-in micro controller unit. It uses rotary
knob for turning on or turning off the motor, and for adjusting the motor’s speed. It is designed to
be used as an in-line device.
Load up to 2000W;
Good for controlling multiple motor loads;
Starts at highest speed;
Adjustable minimum speed setting. The minimum speed can be fine-tuned by the user to suit
for all kind of motors;
Sturdy metal case; and
High quality builds.

Specification Parameters:
Input Voltage 220～240V(50Hz/60Hz) Operation

BRT-784 rates 2000W, 220V. Its maximum amps is 12A.

Environment
No-condensation 20-90% RH，
-20℃～55℃
Load type AC Motor Wattage 2000W
Dimension 168mm x 76mm x 68mm Weight 355g

Wiring and Installation Guide:
 speed control switch is used as an in-line device.

It can be mounted on a flat surface by using 4 mounting holes on the bottom.

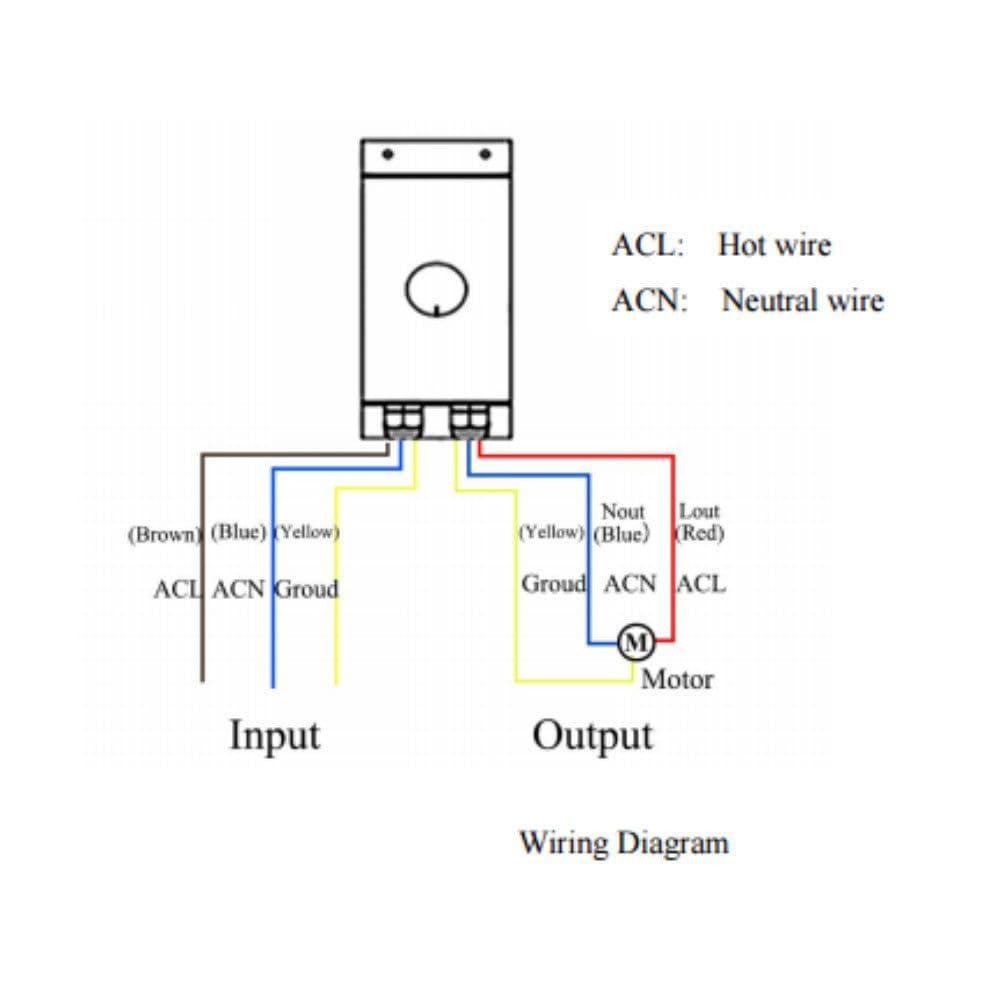

As shown in Fig. 3, the device has 3 input wires and 3 output wires coming out of two outlets, respectively.

All the wires are colour coded and labelled for easy identification.
